#015 Schnellboot
Building the Bronco NB5004 1/350 German S-100 Class Schnellboot with a dockside diorama with LED effects.

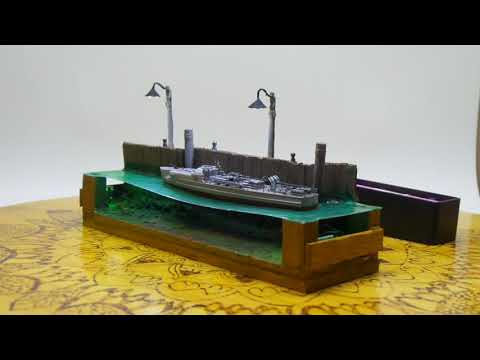

Here’s a quick demo..
Notes
I picked up the Bronco NB5004 1/350 German S-100 Class Schnellboot from an aliexpress seller as pretty much a cheap impulse buy.
I turned out to be a lovely kit - even at 1:350, it is quite detailed, with a nice set of photoetch included.

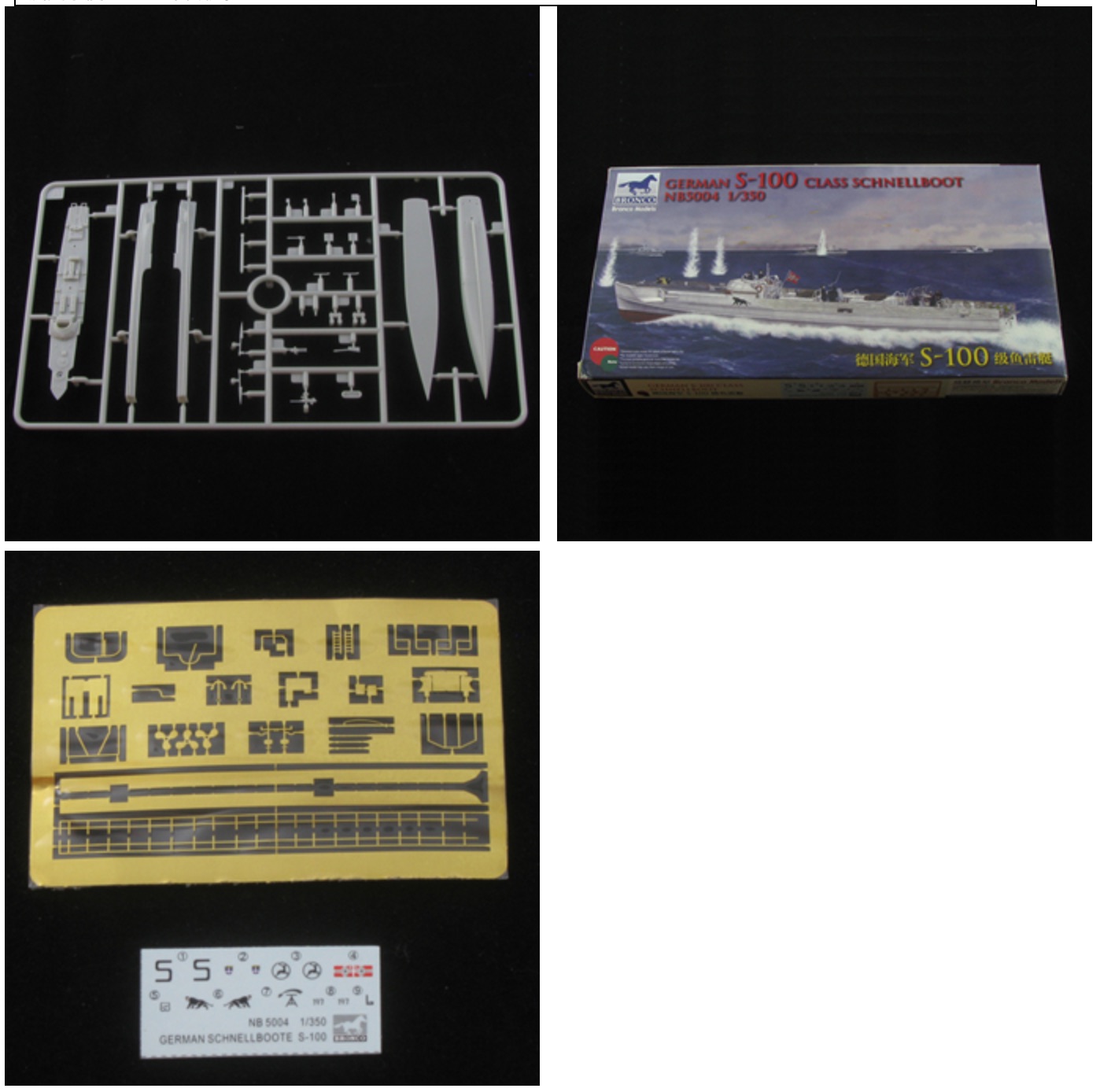

The Kit

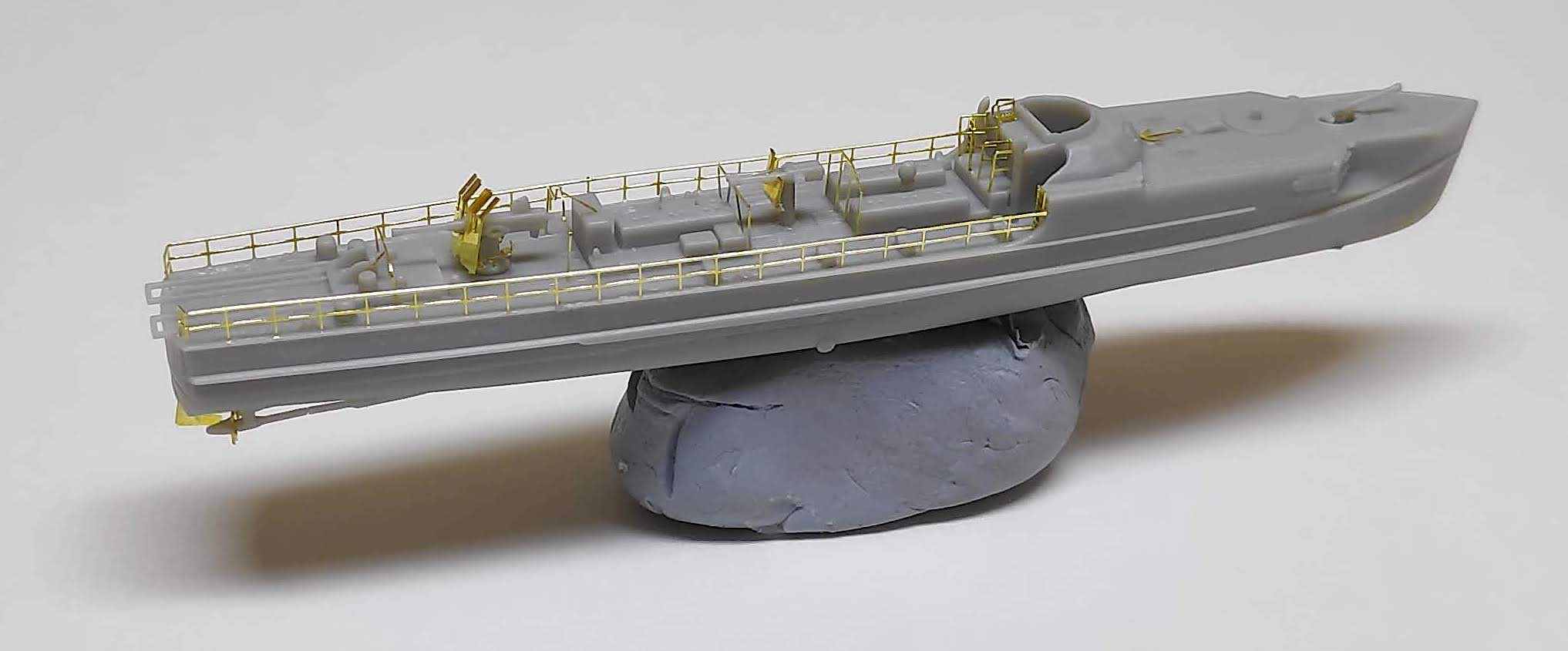

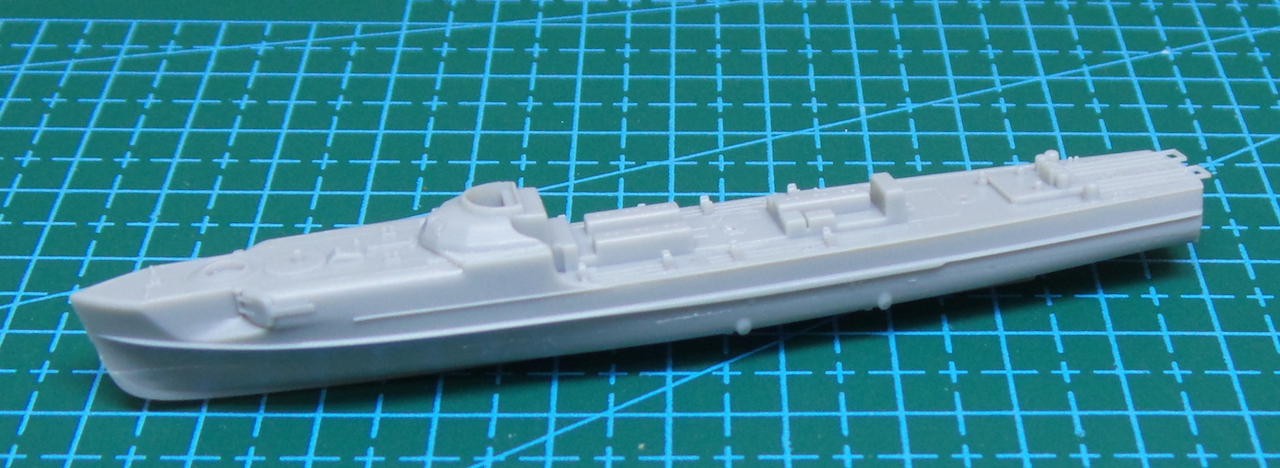

Kit Build
The basic build is quite straight-forward, with the only fiddly bit being the photo-etch.

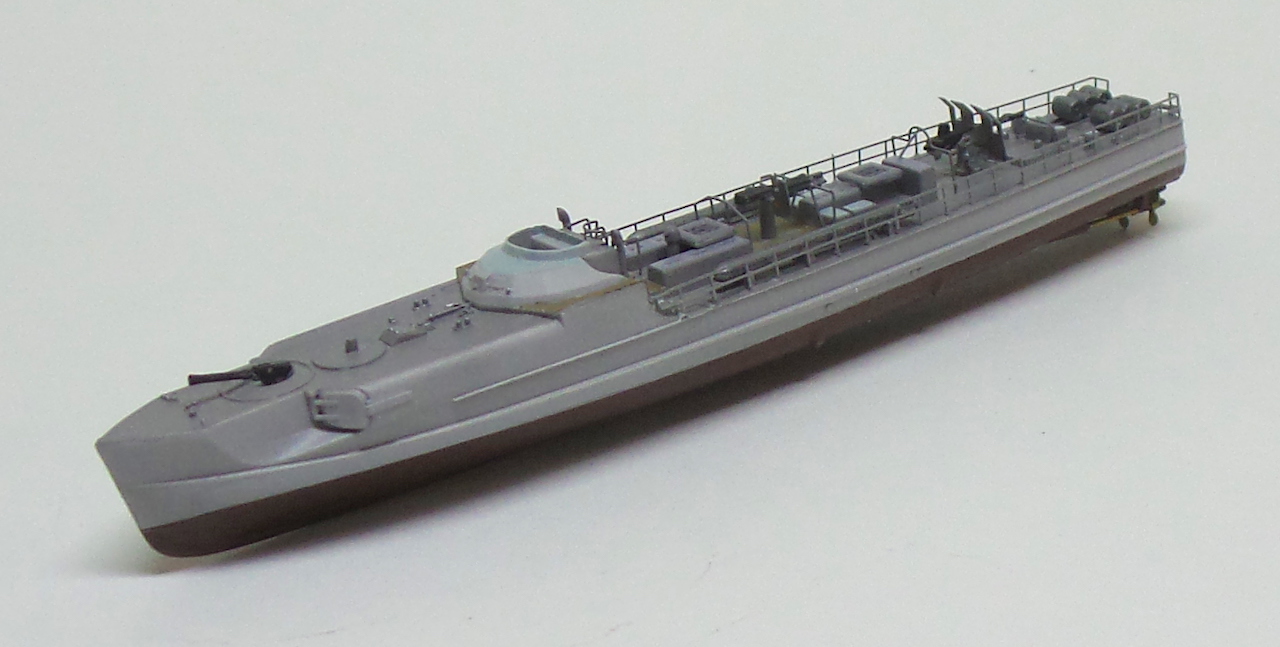

Paint Scheme
| Part | Recommended | Paint Used |
|---|---|---|
| propeller | Tamiya X-12 | Vallejo 70.878 old gold |
| deck surface | Dark grey FS26187 | Vallejo 70.870 Medium Sea Grey |
| deck surface (wood) | Gunze H-11 | Humbrol 110 |
| upper hull | Light Grey FS16515 | Vallejo 70.990 Light Grey |
| lower hull | Tamiya XF-9 | Vallejo 70.985 Hull Red |

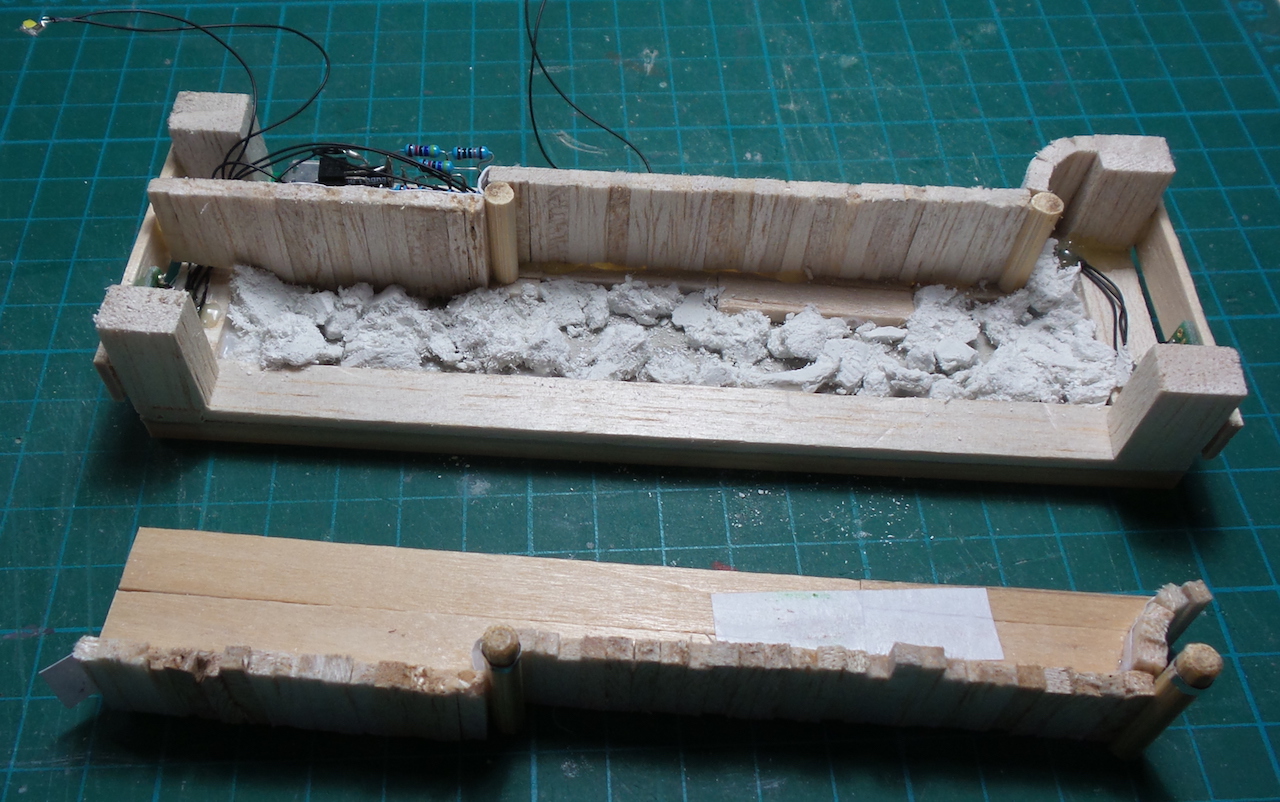

Diorama Base
The diorama base is imaginary dock scene. I was mainly interested in trying the idea of a split waterline display. It came together in a fairly ad-hoc manner, and I suspect my scale might be a bit off!
The Electronics

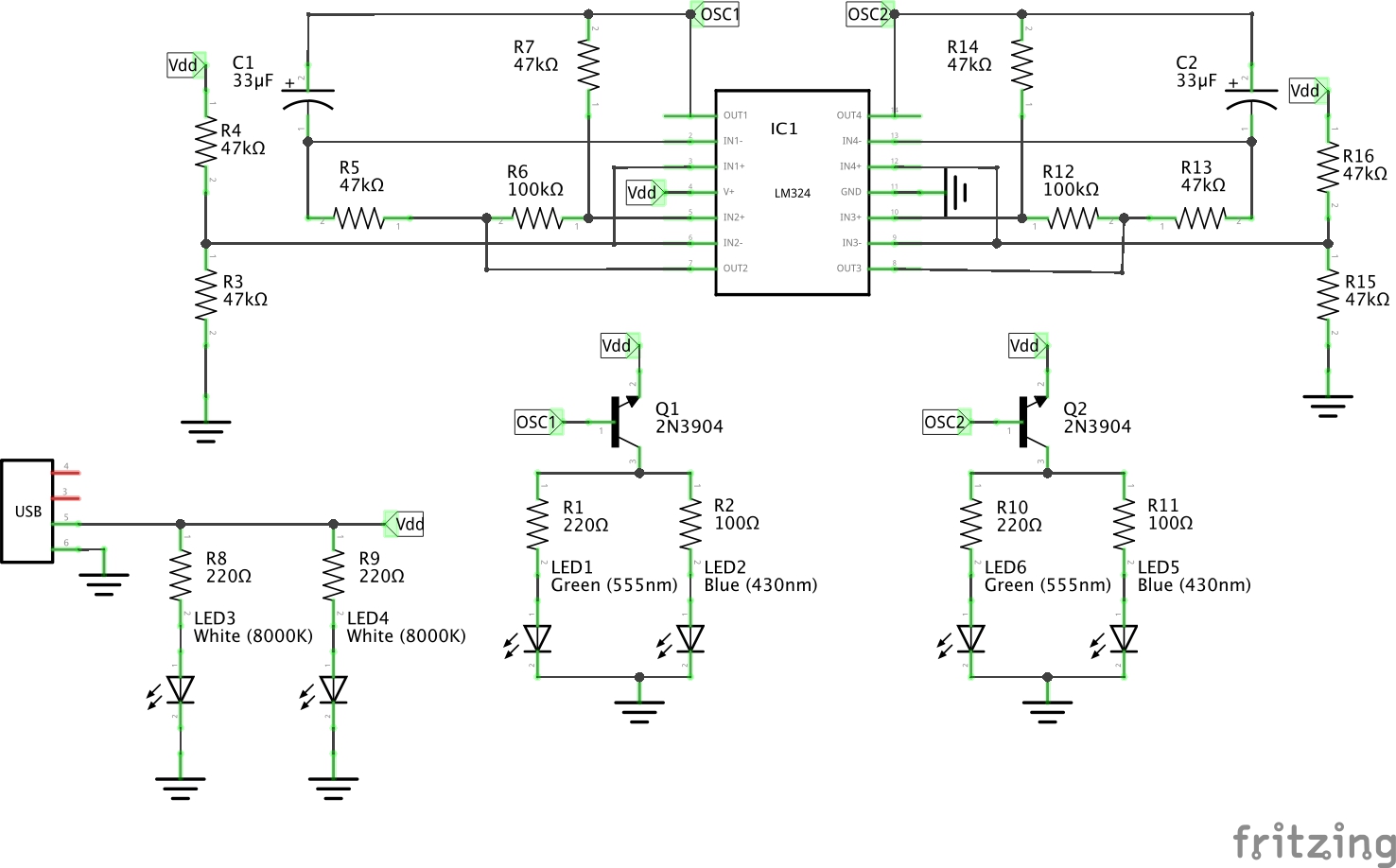

Some simple USB-powered electronics provide LED effects:
- two white LEDs for the lamp posts on the dock
- an LM324 running two triangle-wave oscillators
- the oscillators use the same components, but are not phase-locked, so they will drift over time (adding variety to the display)
- oscillators drive green and blue “under water” LEDs

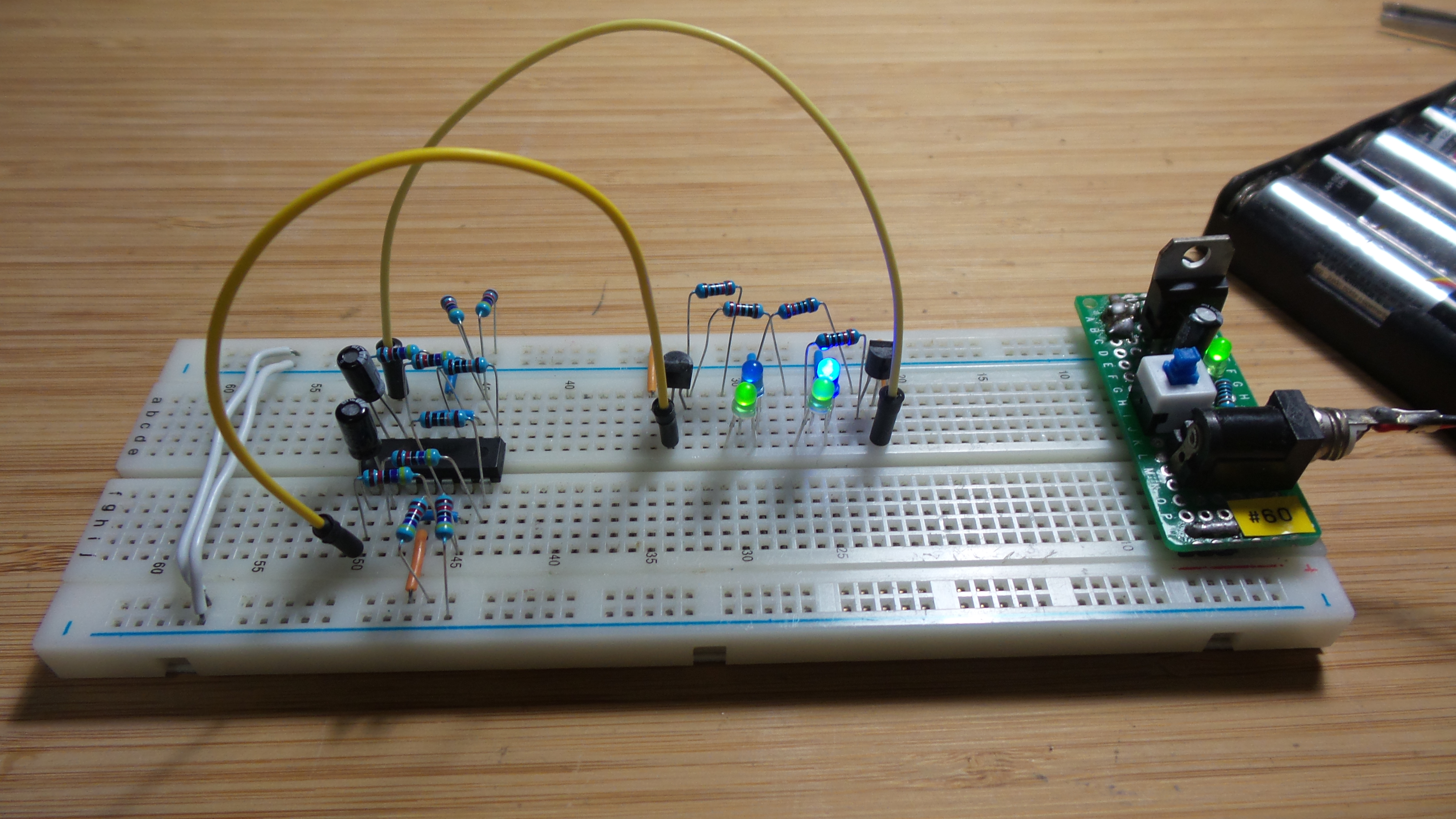

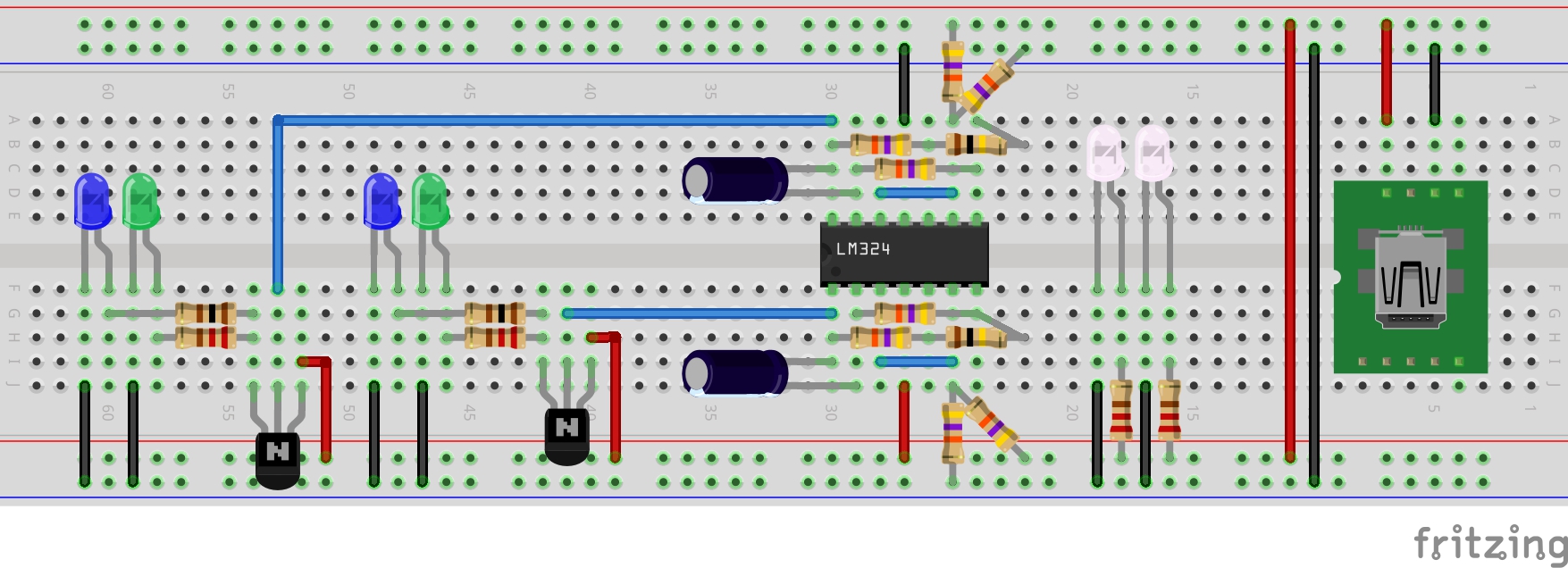

Testing the oscillators on a breadboard:

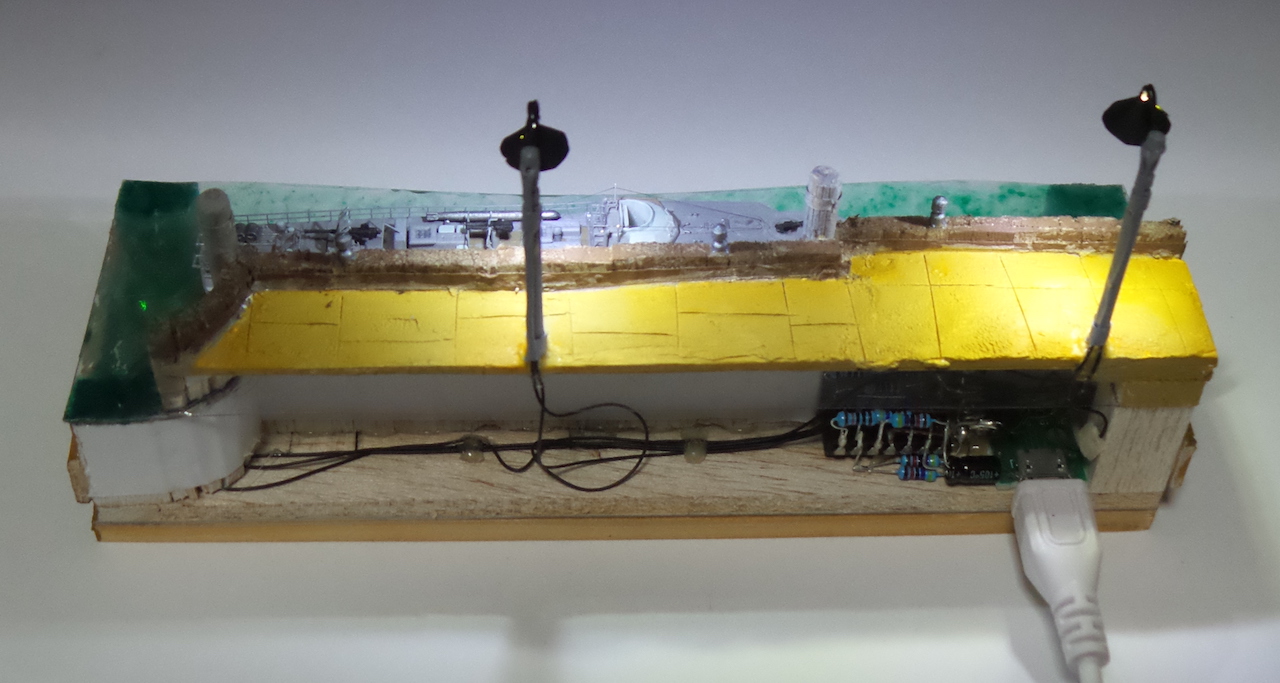

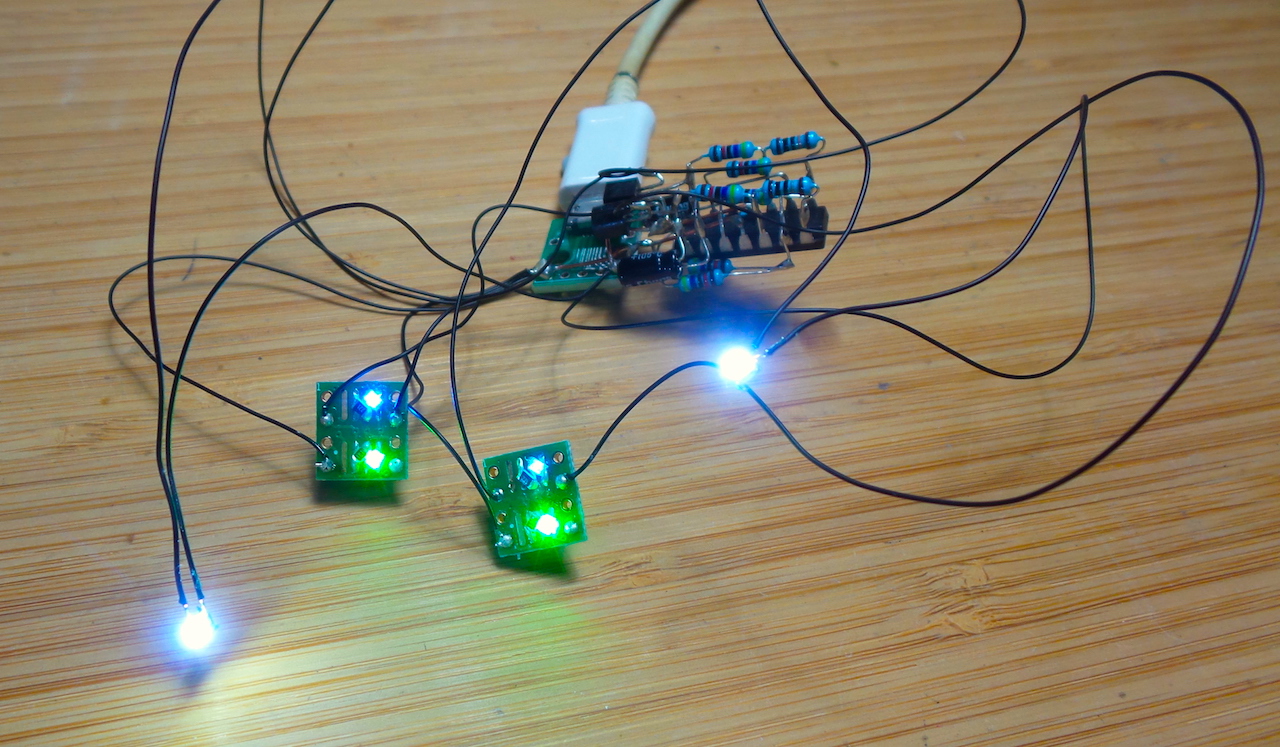

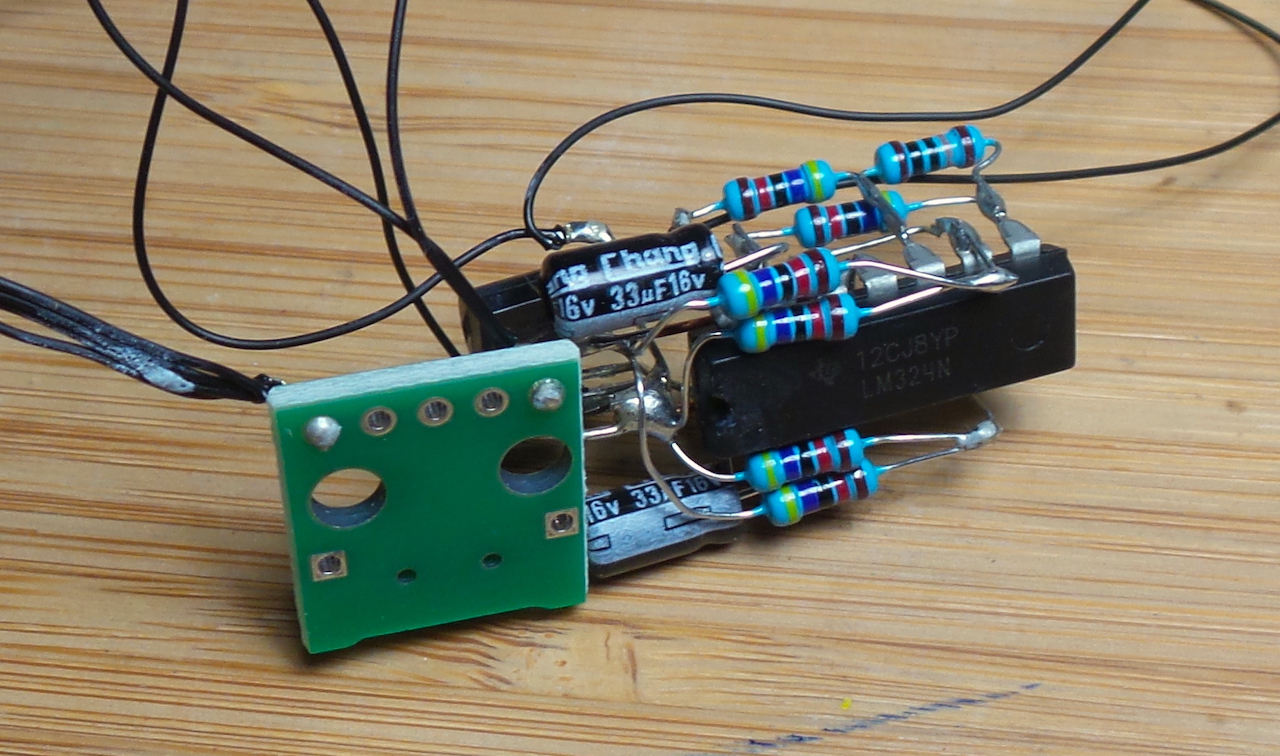

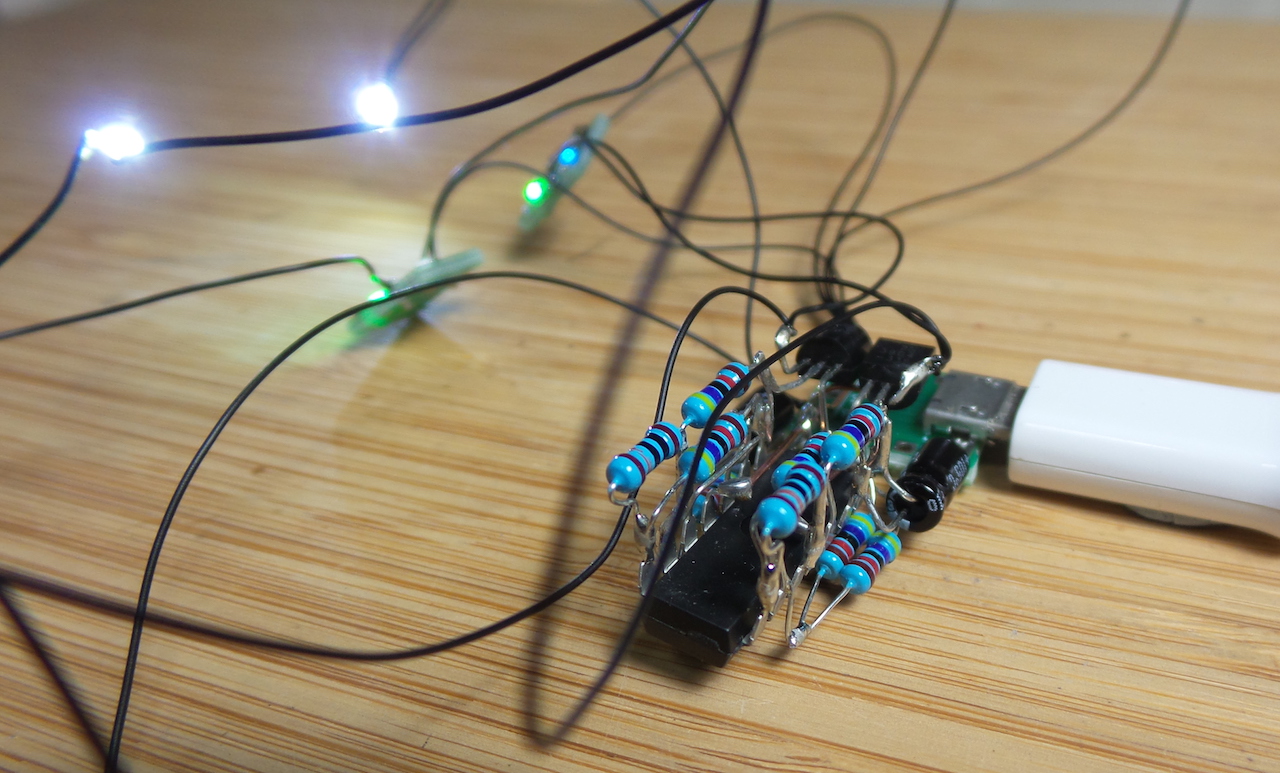

The final build uses a USB adapter module and the oscillator circuits are constructed “dead bug” style on the LM324 chip

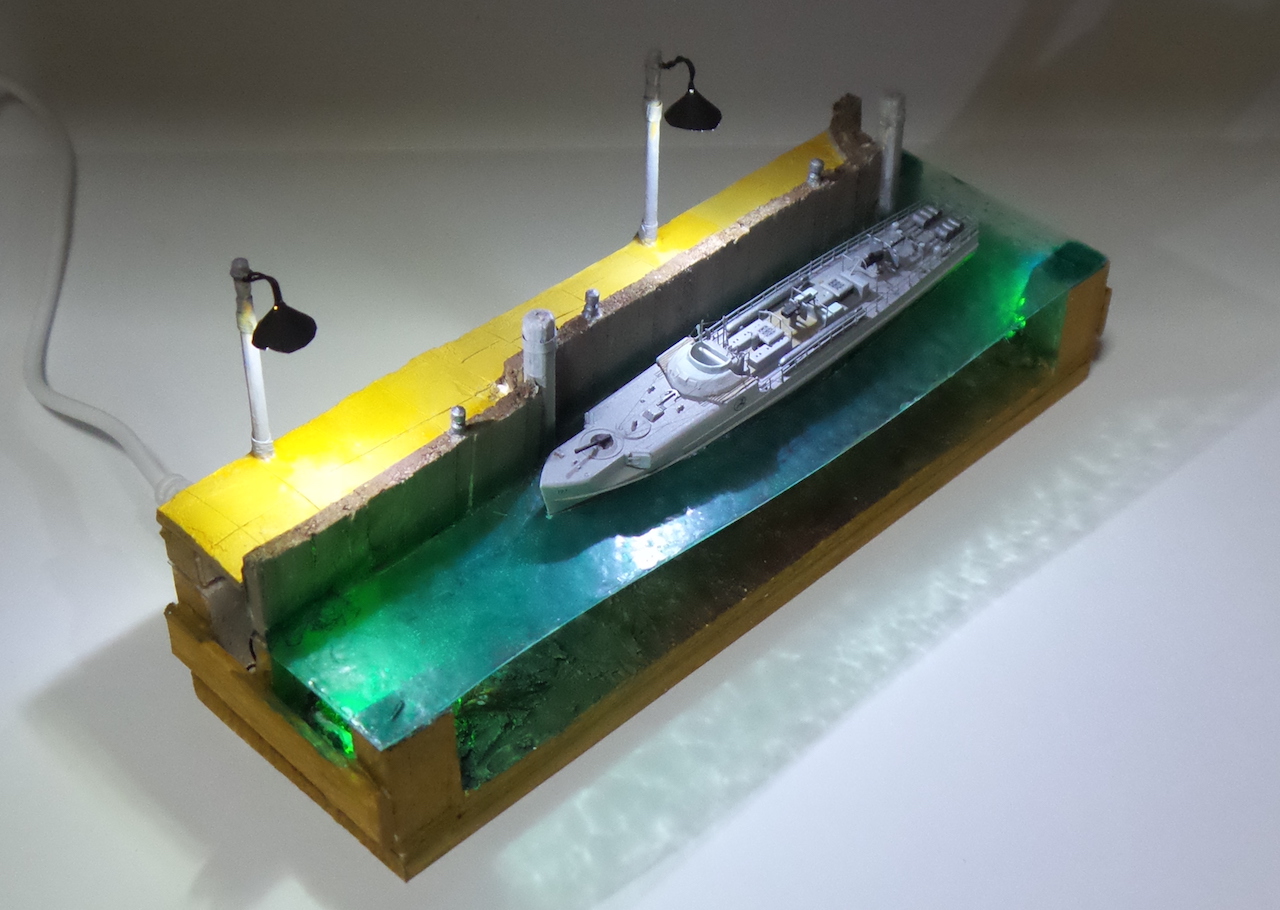

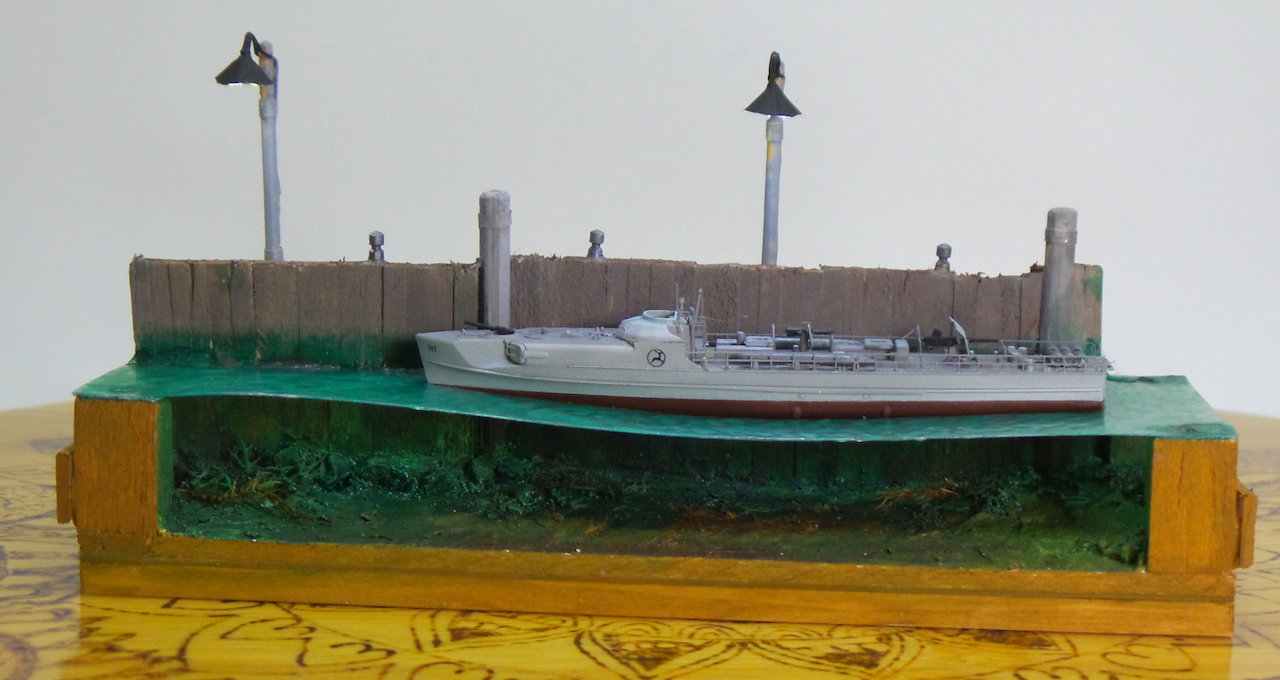

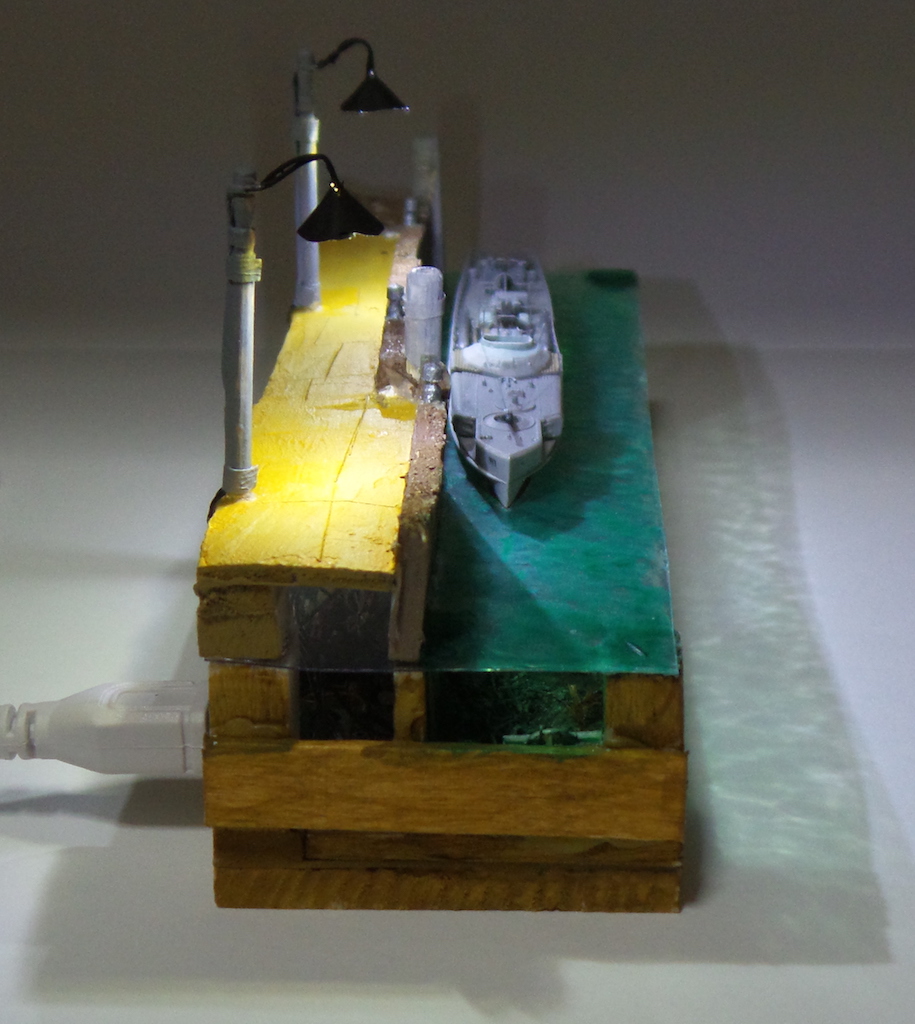

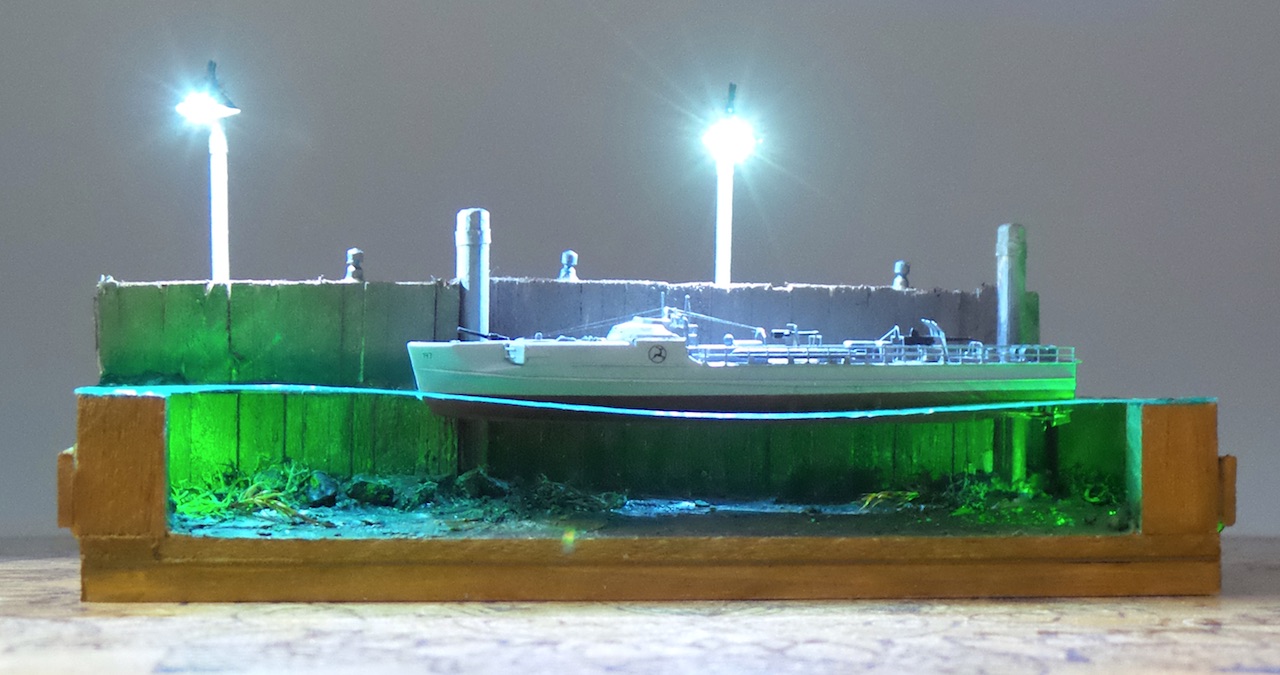

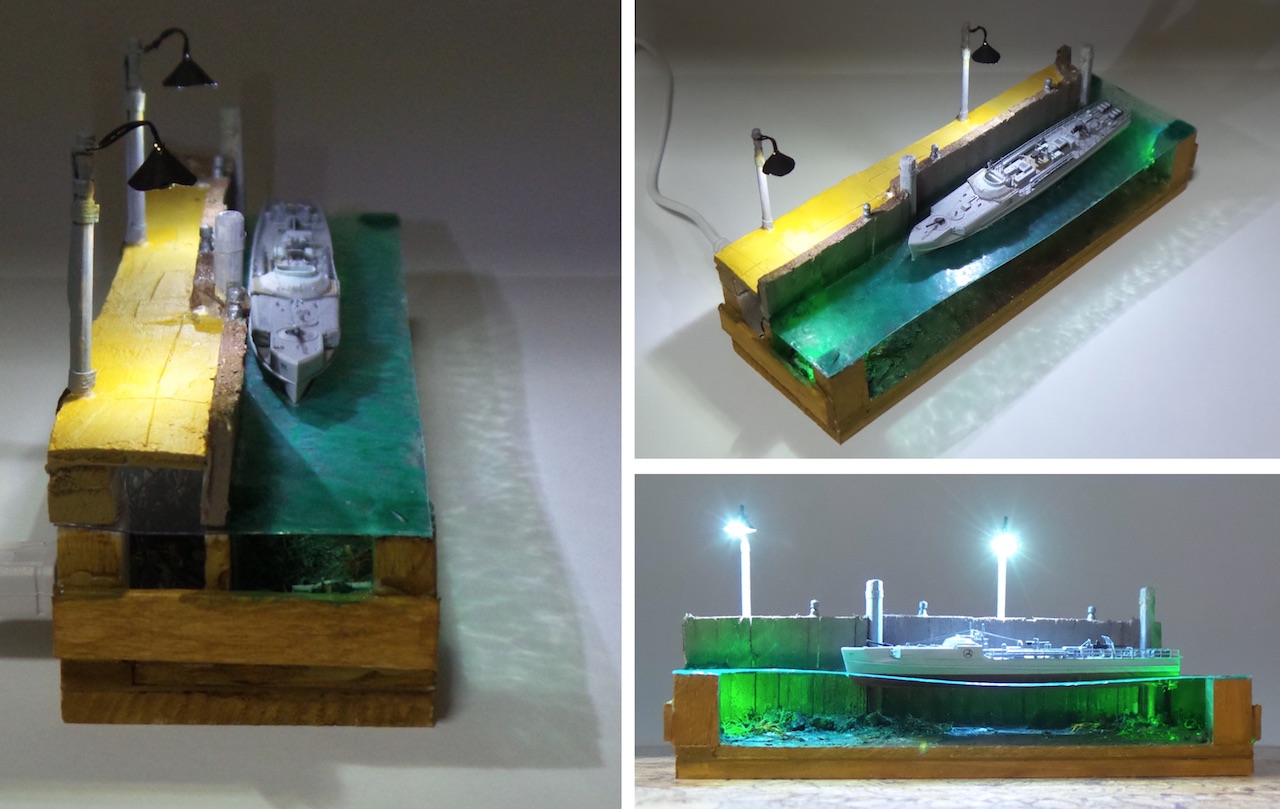

Final Gallery
