#175 HMS Fearless

Building the vintage classic HMS Fearless from Airfix in 1:600 scale.

Build

Notes

This is one of the few kits I remember building as a kid. IIRC, my Dad brought it home as a present after a work trip. It got the stringy glue treatment, I don’t think even painted. But many an hour was spent recreating beach landings over the living room carpet.

So this is very much a nostalgia build. I built it straight out of the box during a local 48 hour group build, but put it on a seascape in the following weeks.

The Kit

HMS Fearless Airfix No. 03205 1:600 is the 1994 boxing of the 1968 tool.

box-art

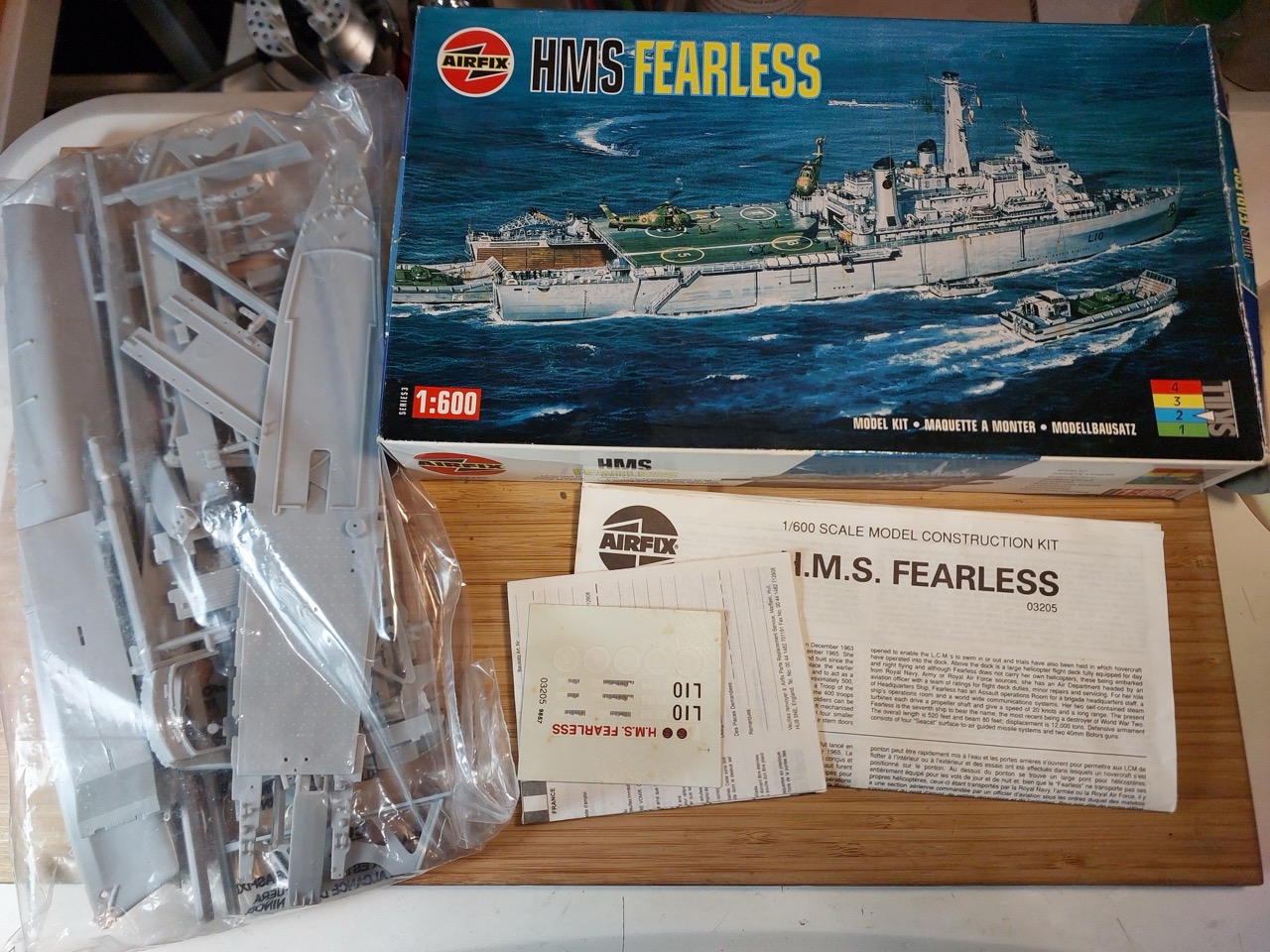

kit-parts

Paint Scheme

Feature Color Recommended Paint Used
hull, superstructure Light Aircraft Grey Humbrol 64 H61
funnel tops, waterline Matt Black Humbrol 33 H12
flight deck, deck Dull Green Humbrol 117 H320
anchors Bronze Humbrol 55 H61
propellers Bronze Humbrol 55 70.999
life rafts Matt White Humbrol 34 70.951
hull below waterline Dark Red Humbrol 73 H17


Helicopters

Feature Color Recommended Paint Used
camo Medium Green Humbrol 30 H309
camo Light Brown Humbrol 26 H81
props     H65
windows     70.989

Build Log

I chose the Fearless as my subject for our local 48 hour group build in July 2026. Getting started…

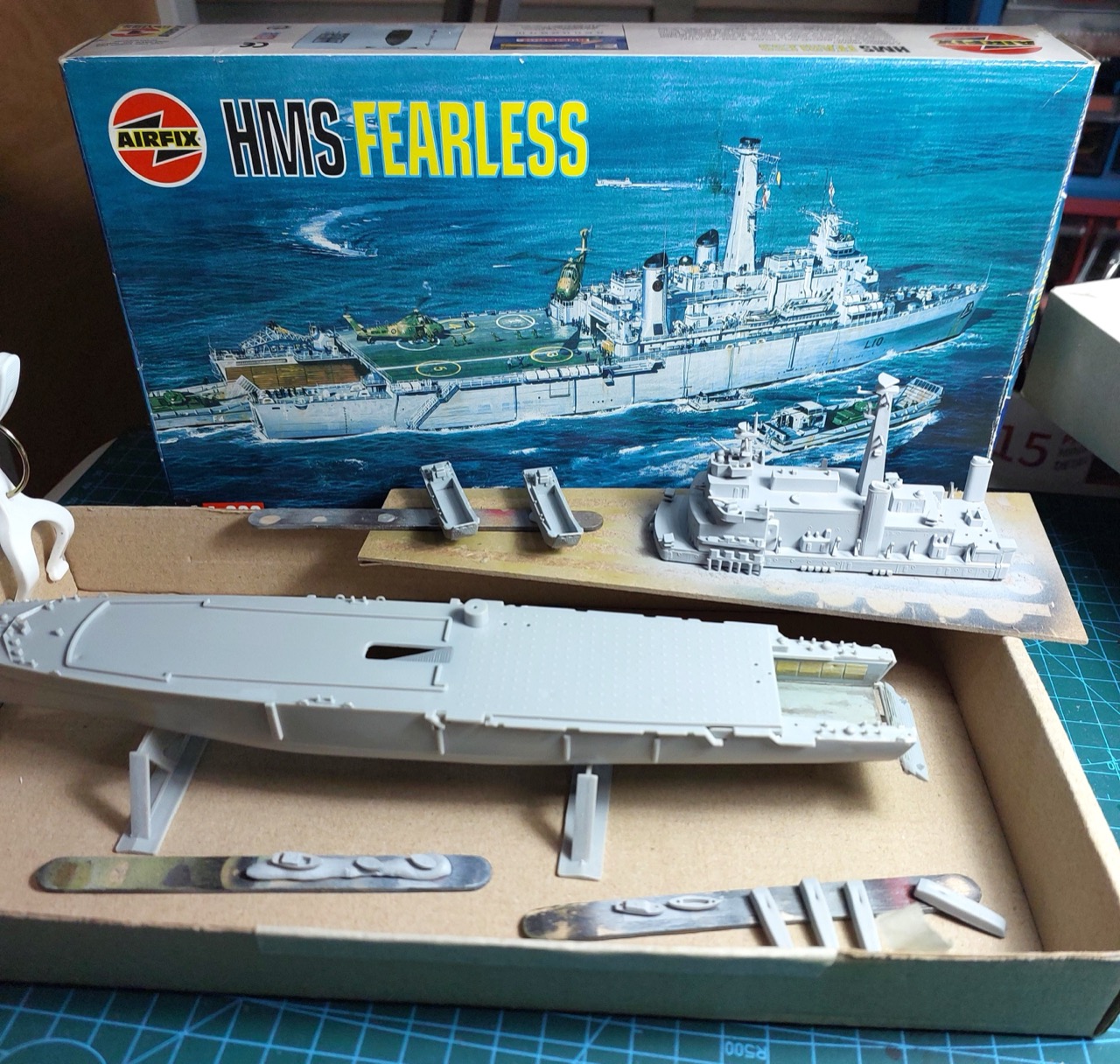

build01a

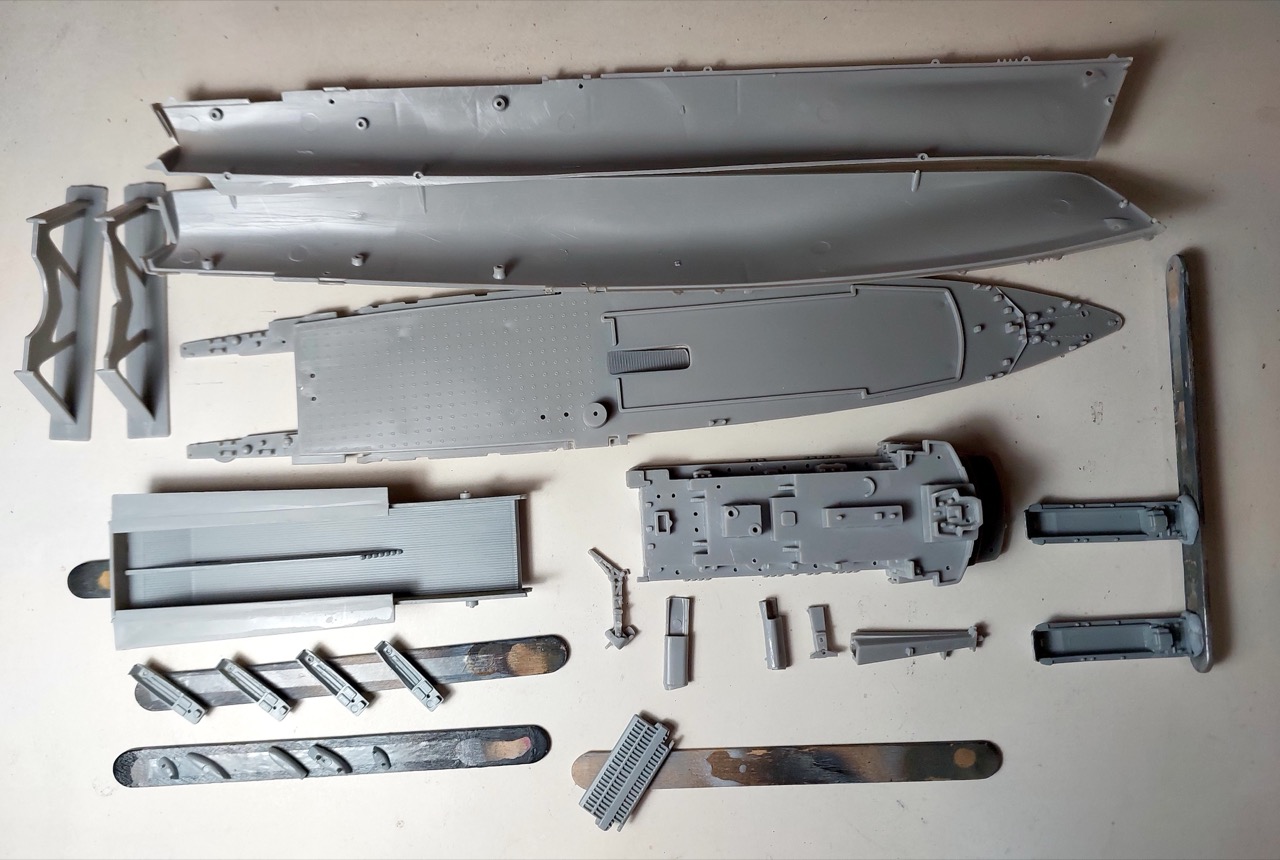

build01b

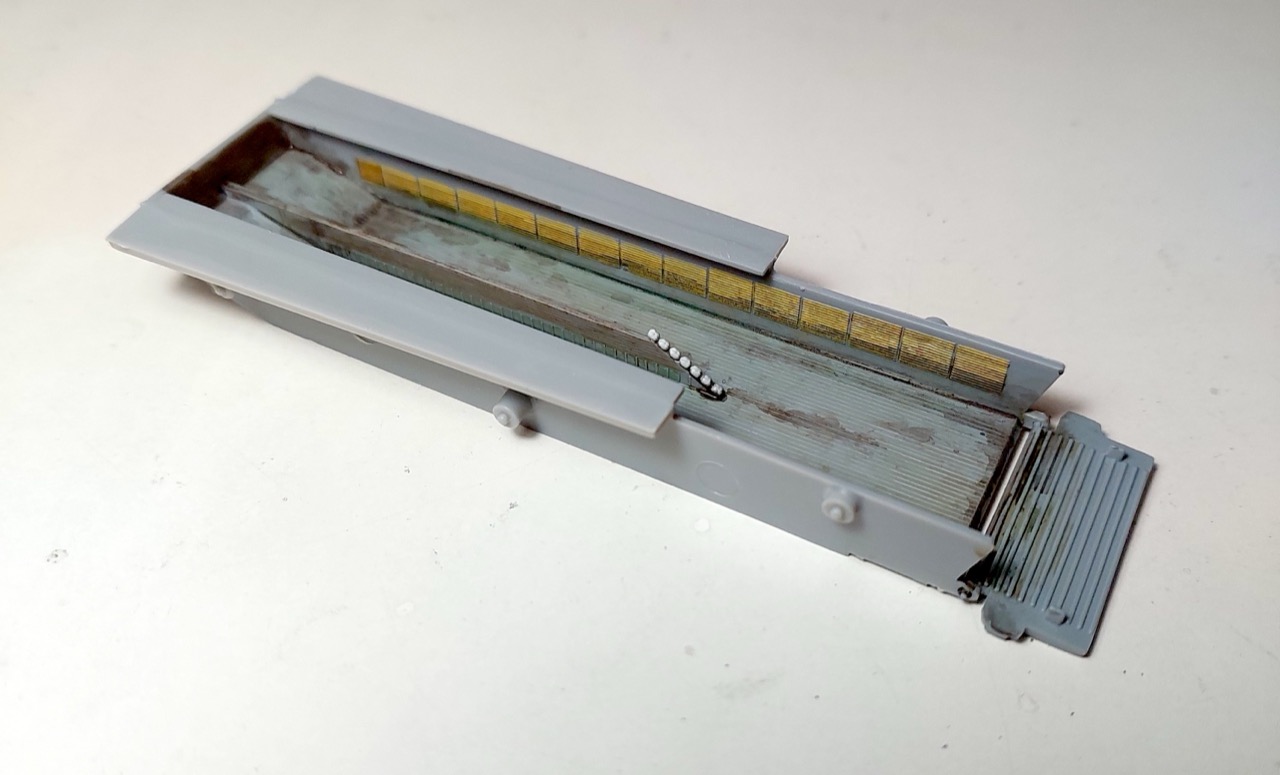

build01c

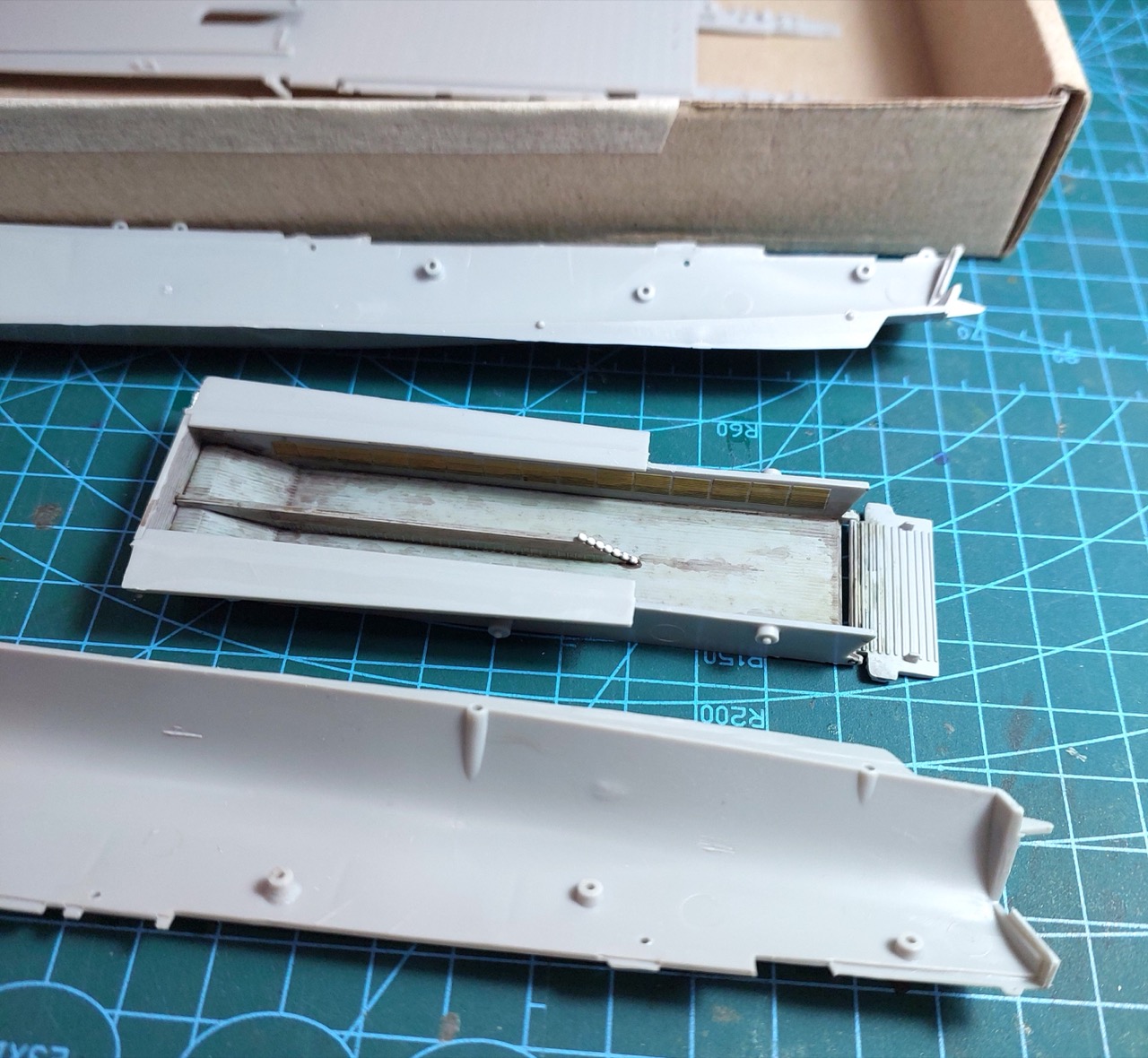

build01d

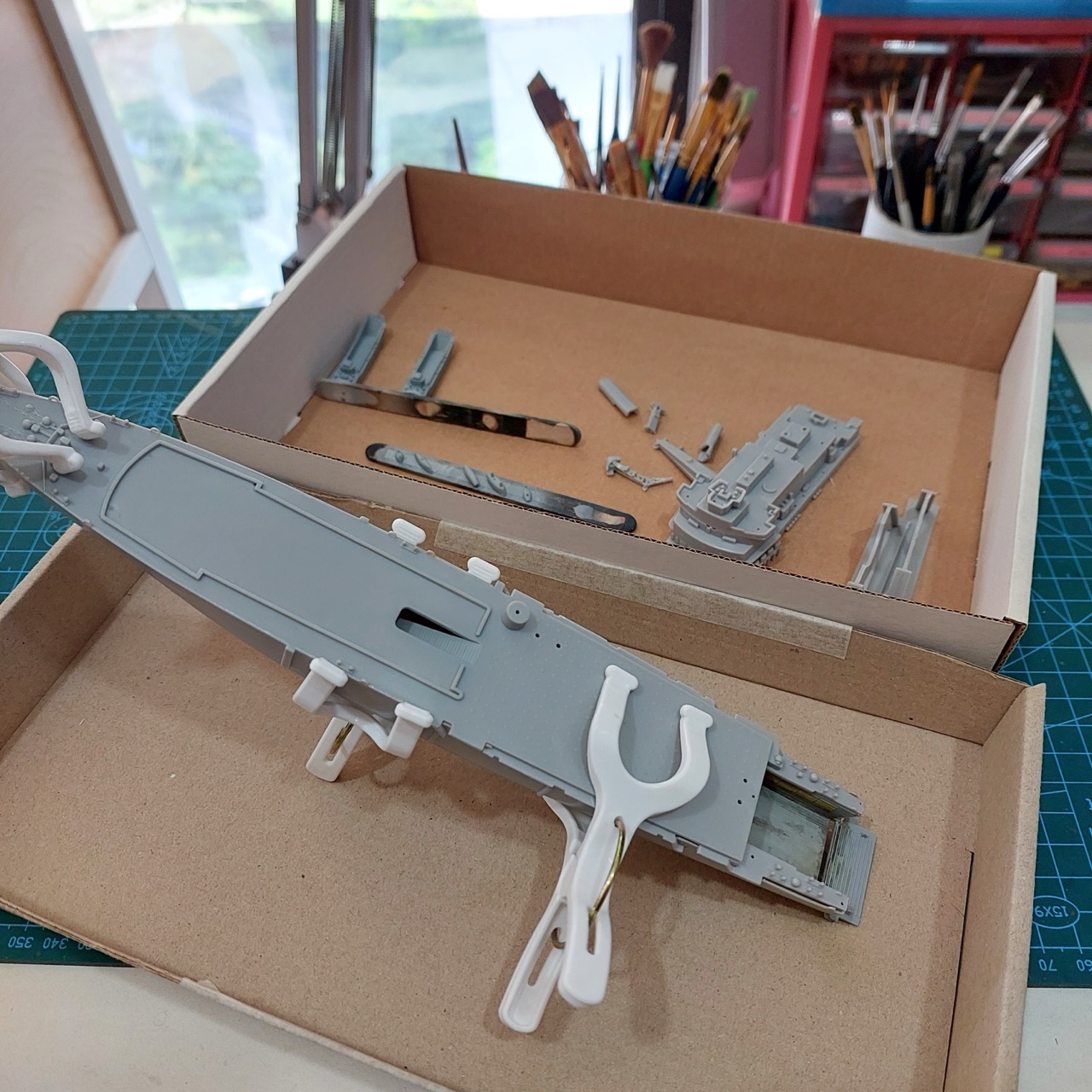

build01e

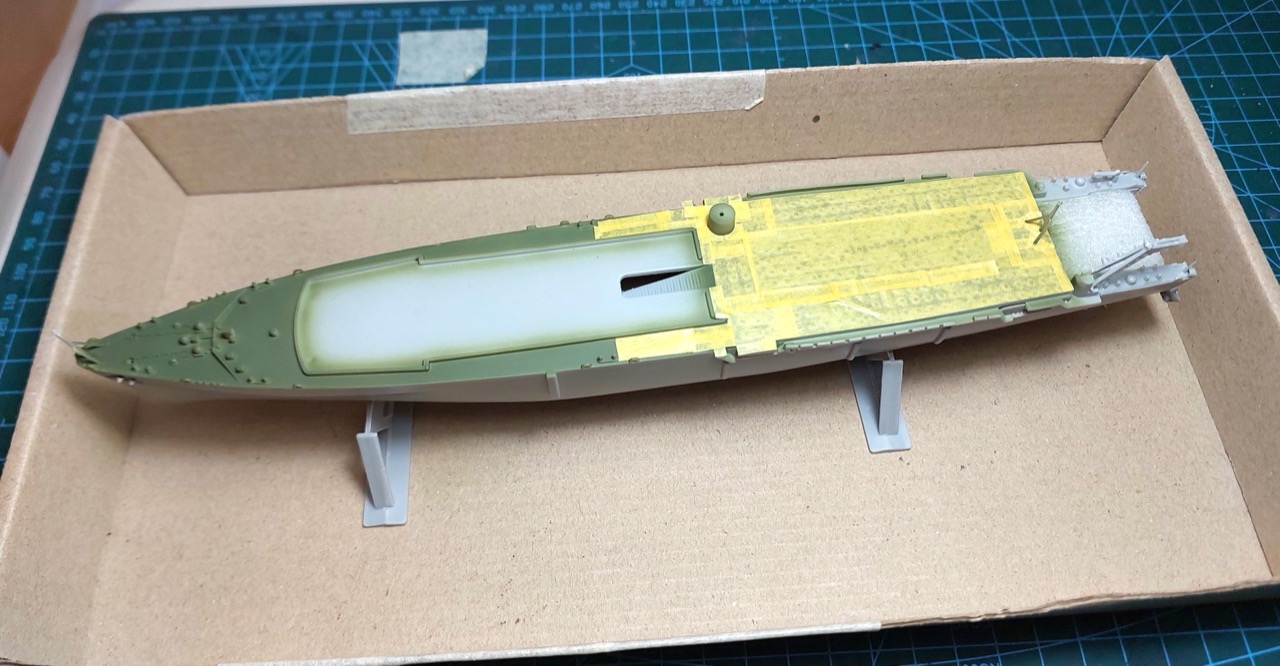

build01f

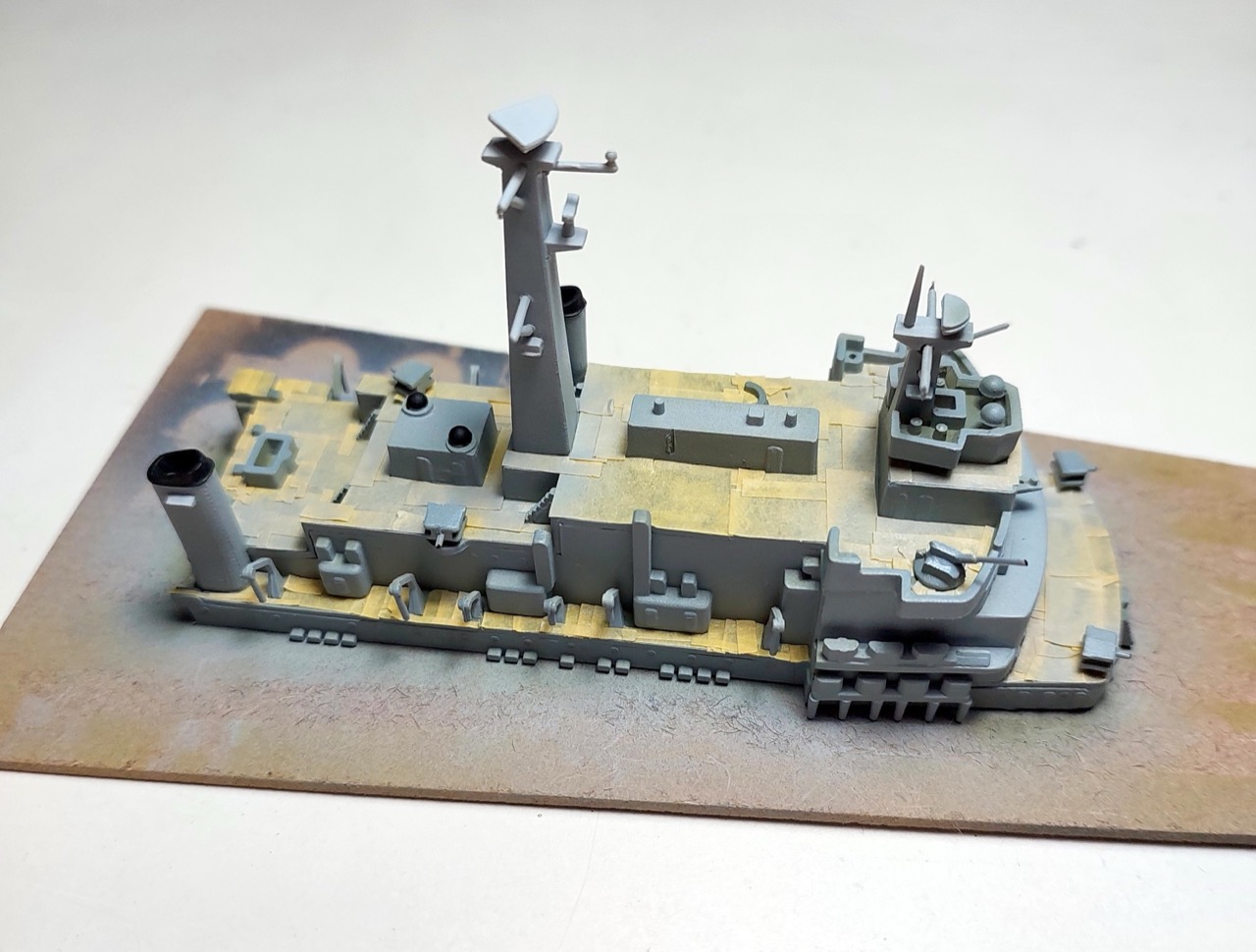

build01g

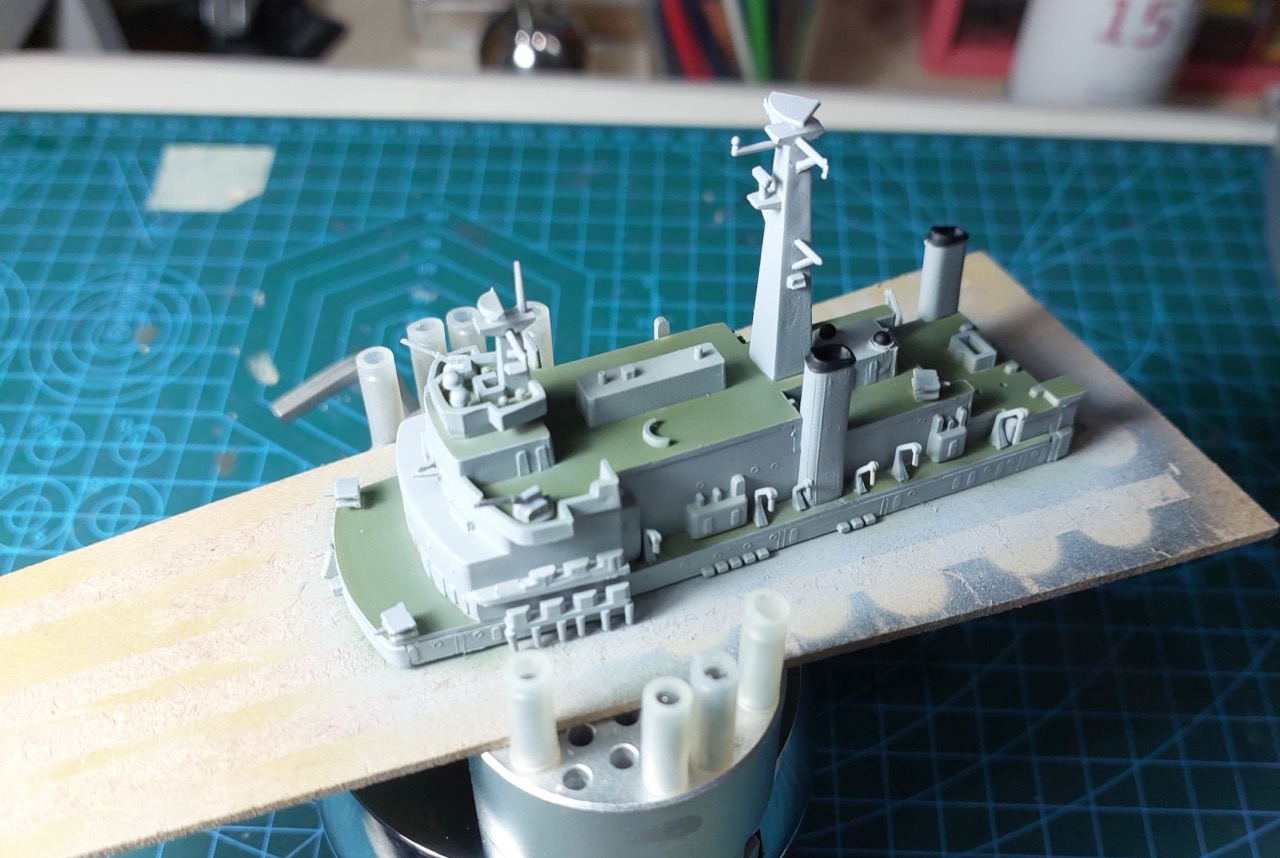

build01h

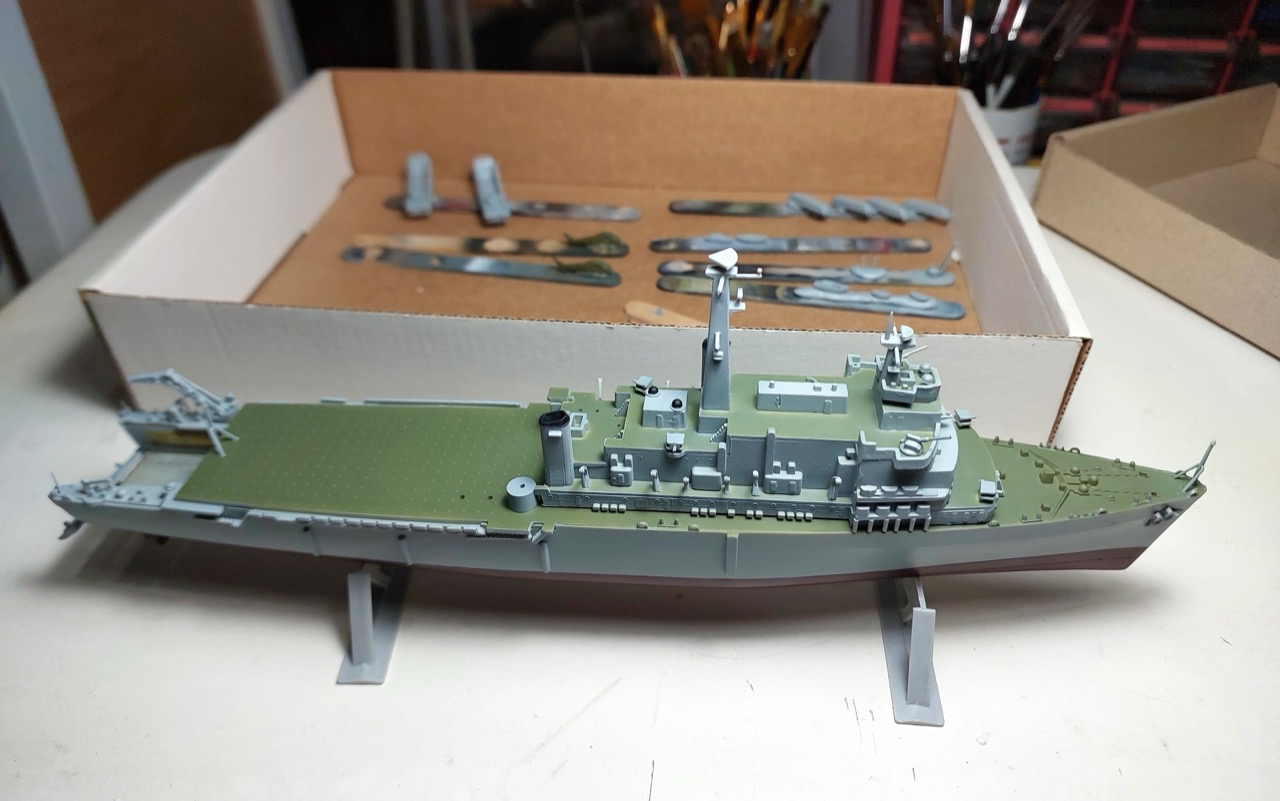

build01i

Ship Build Complete

This is where I go to at the end of our 48 hour group build: basic out of the box build, no weathering or extra details.

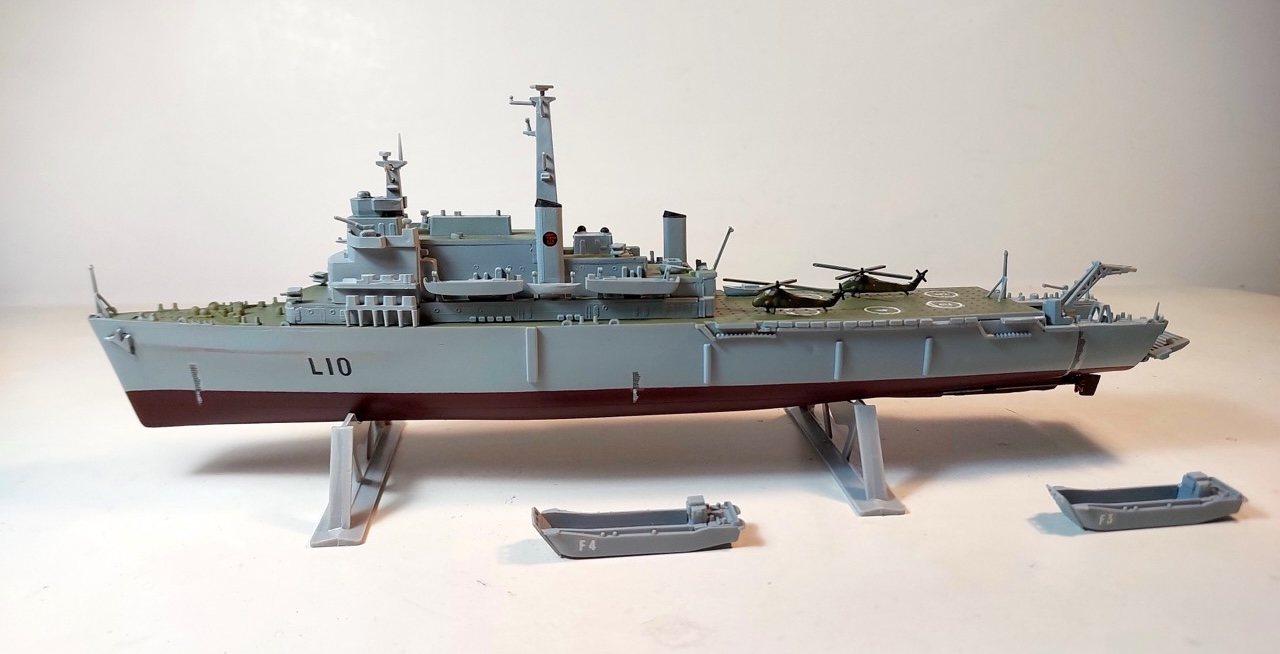

build02a

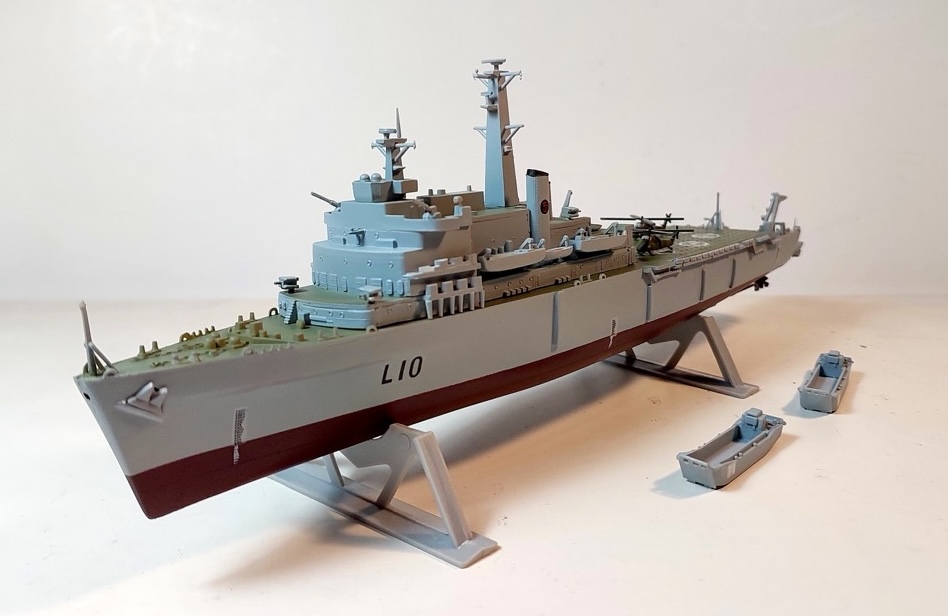

build02b

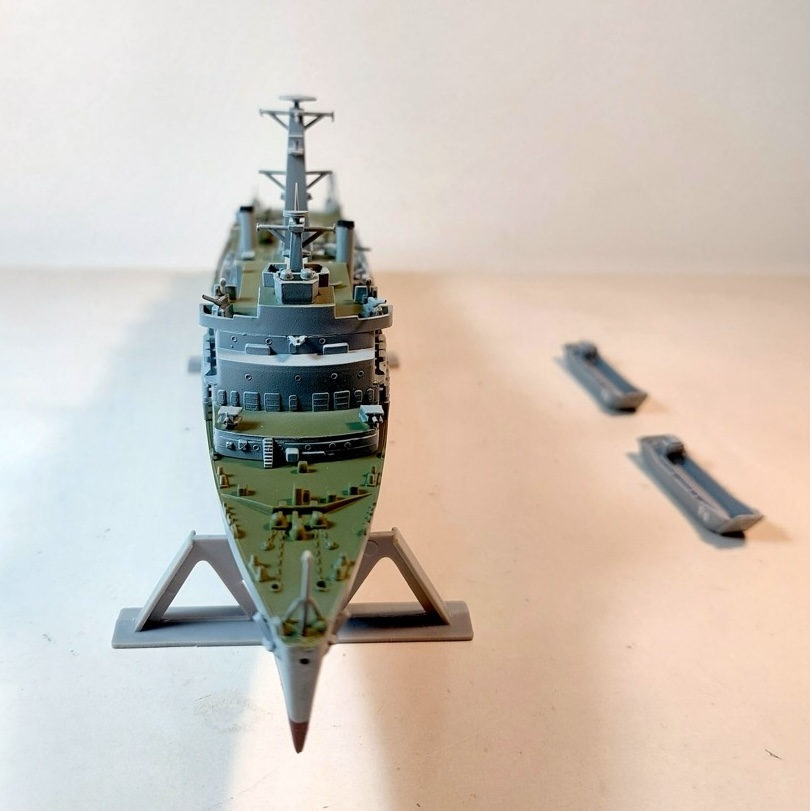

build02c

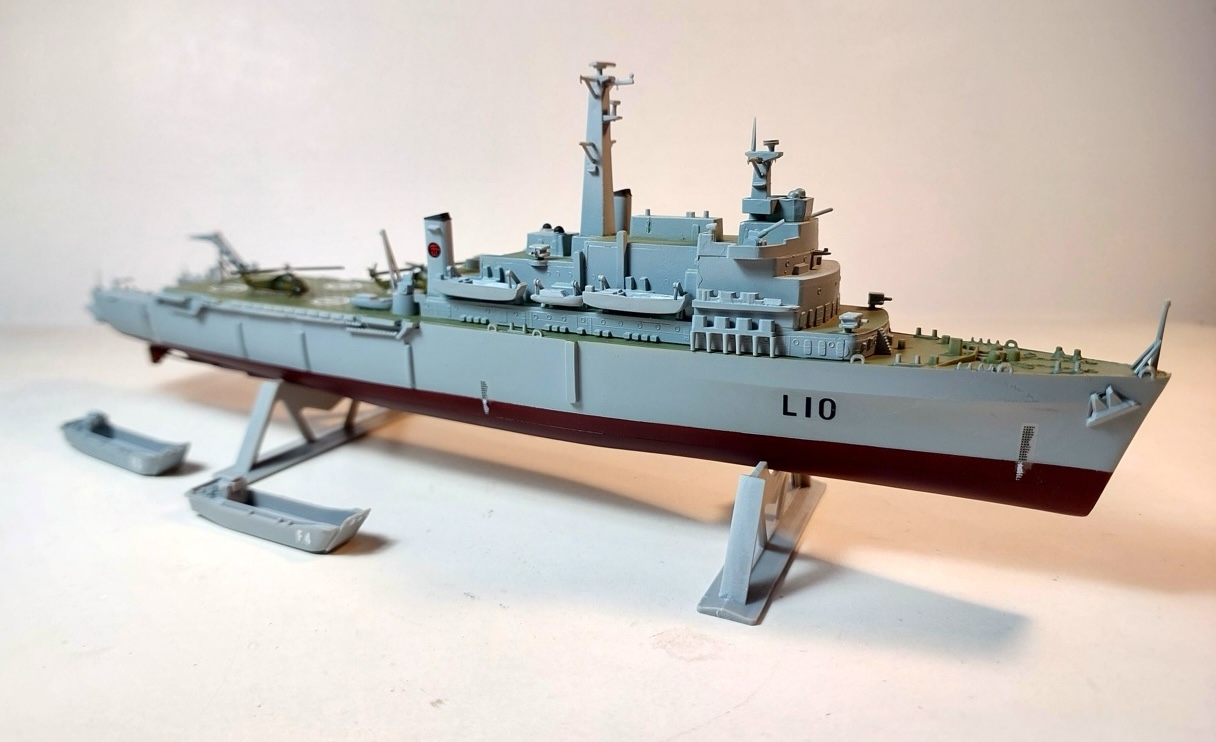

build02d

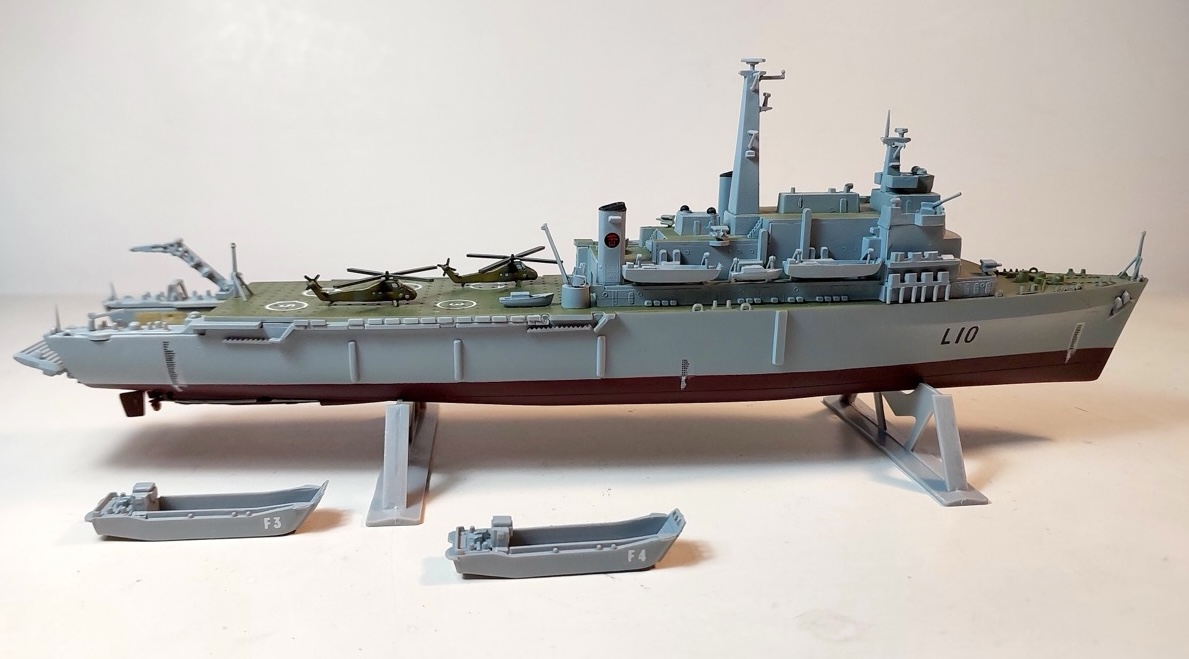

build02e

build02f

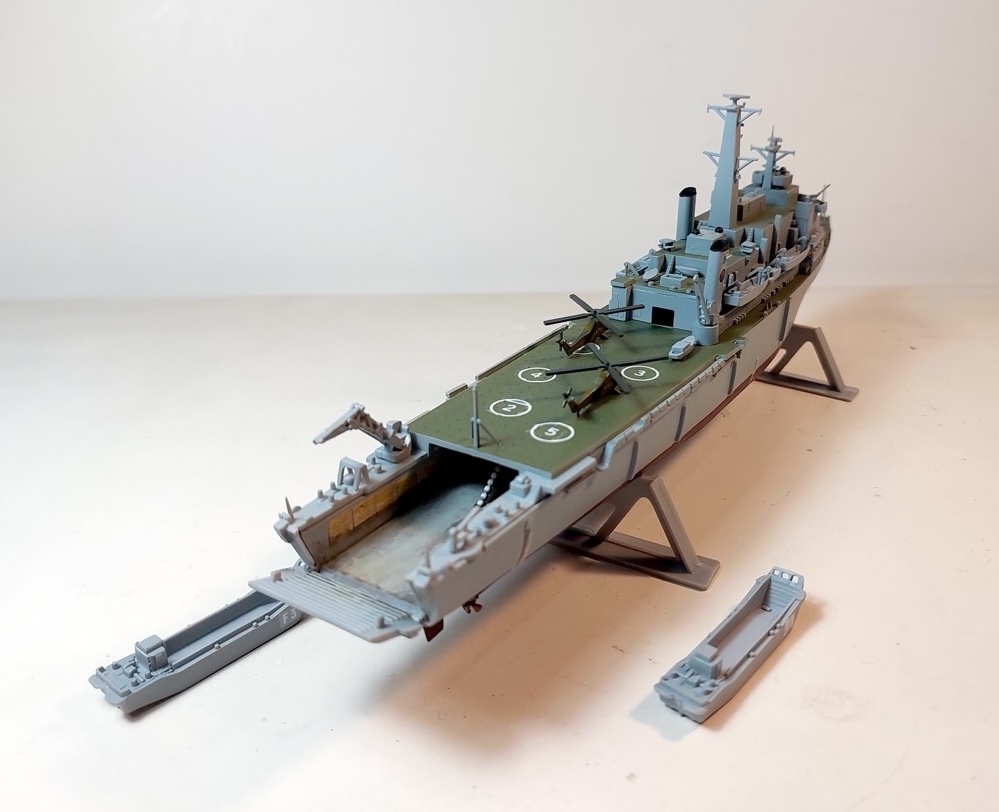

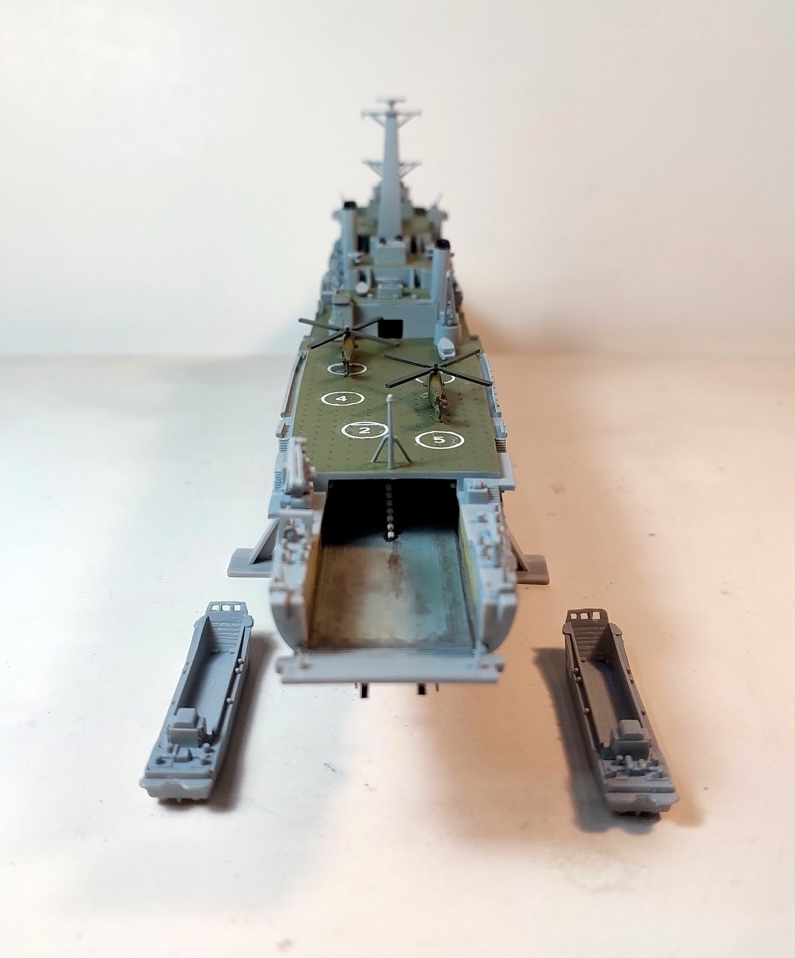

build02g

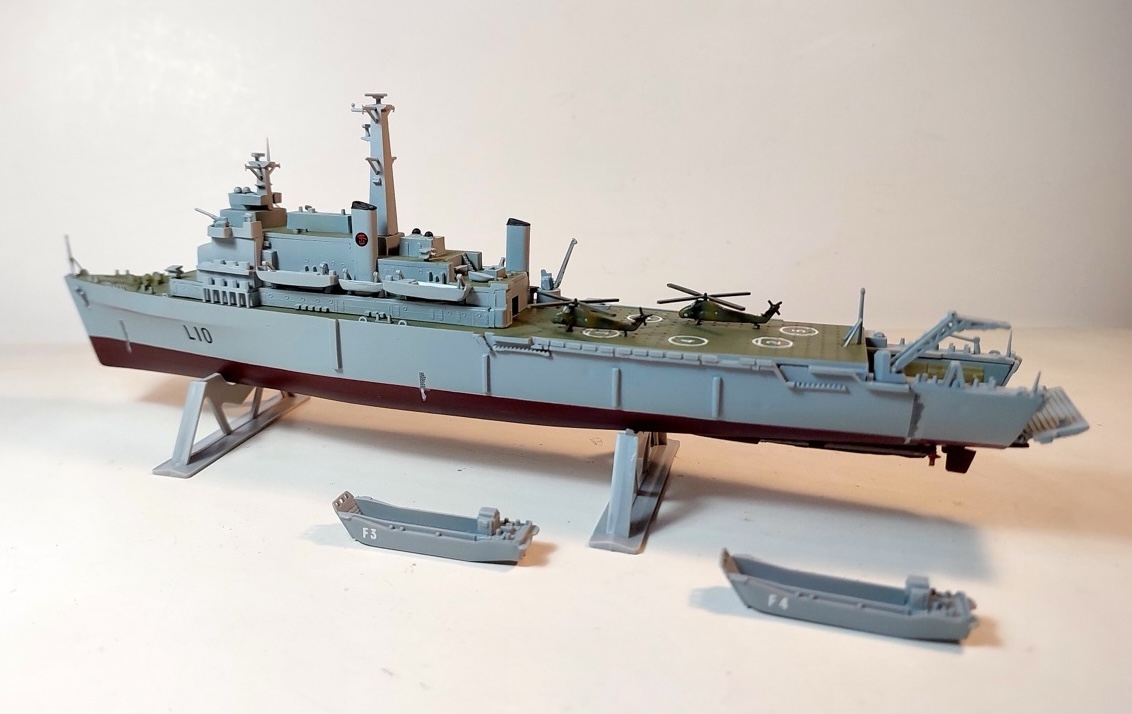

build02h

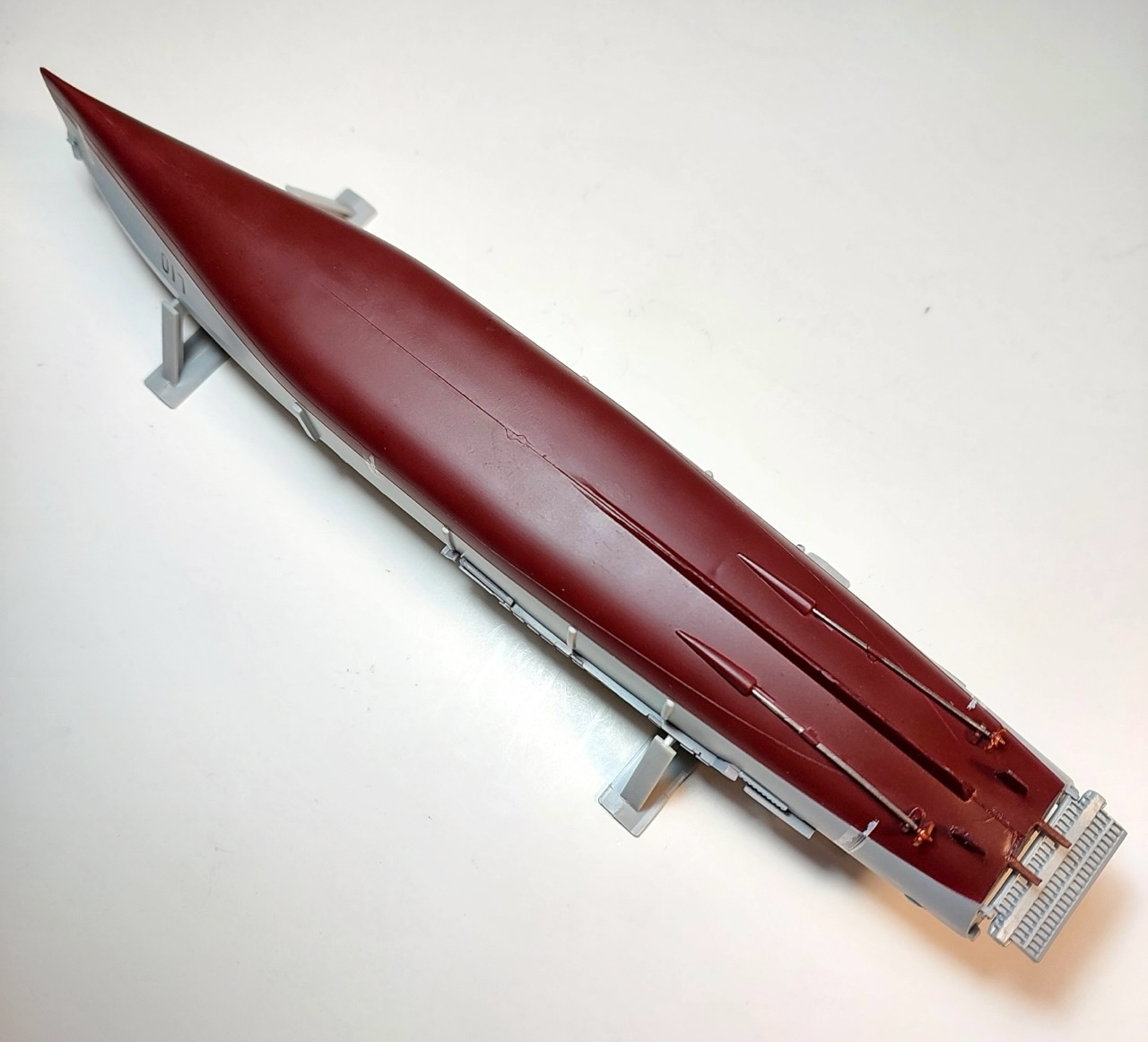

build02i

Seascape - Base

I used my standard technique for the sea base:

  • cut & carved the base structure from high density foam
  • created the basic surface texture with tissue paper and Mod Podge Gloss as a glue
  • built up successive layers of airbrushed Vallejo Model colour (various shades of grey, blues, sea greens) over layers of Mod Podge Gloss.

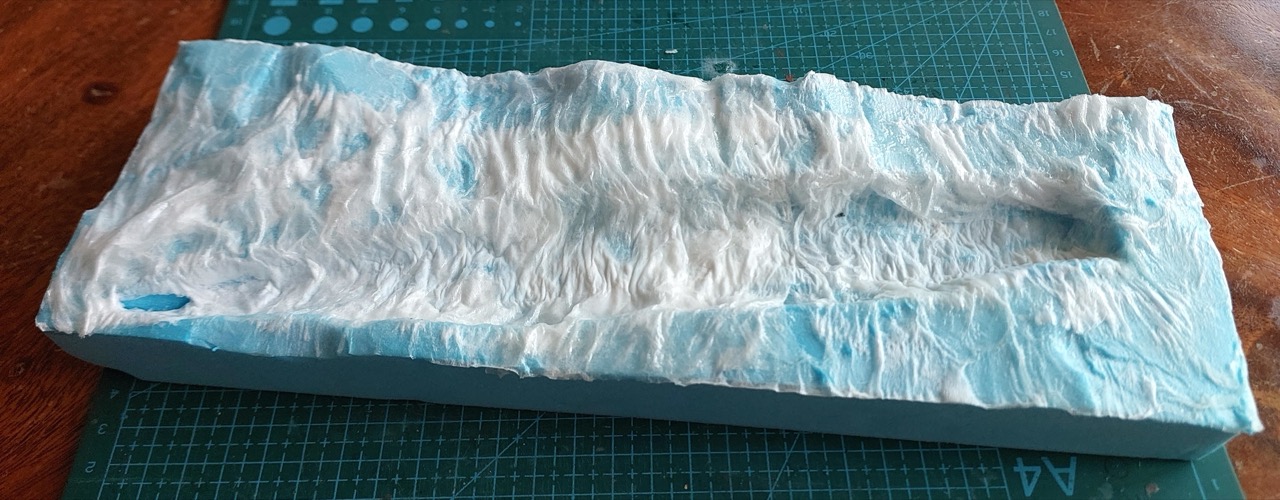

build03a

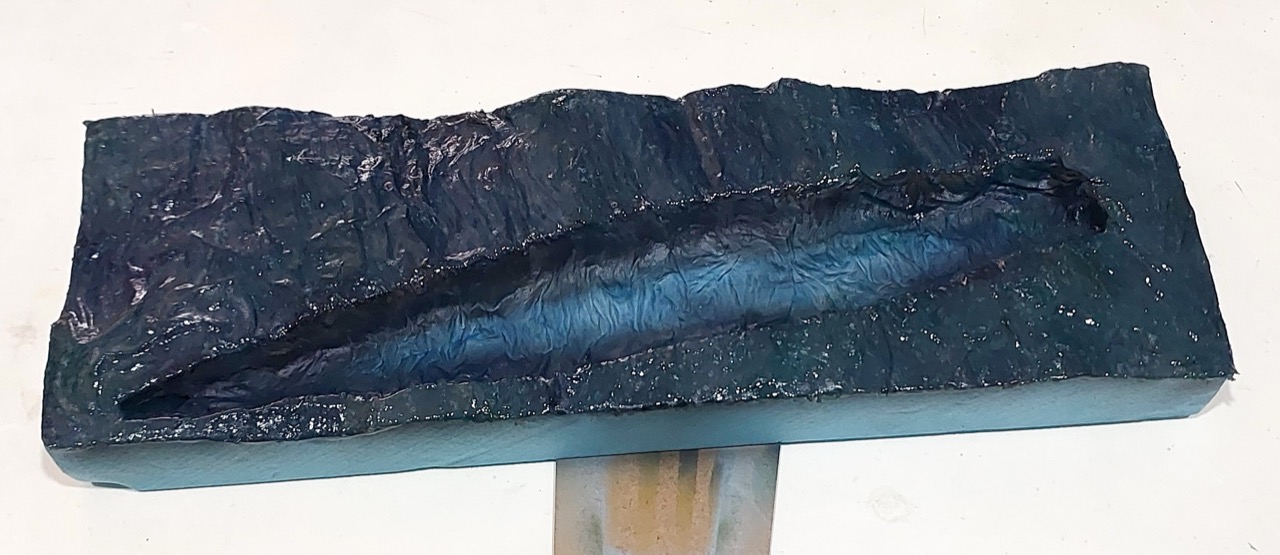

build03b

Seascape - Waves and Weathering

After adding the ship to the base:

  • waves and foam built up with:
    • cotton wool applied with Mod Podge Gloss
    • Deluxe Scenic Snowflakes applied with Mod Podge Gloss
  • oil paint weathering of the ship itself

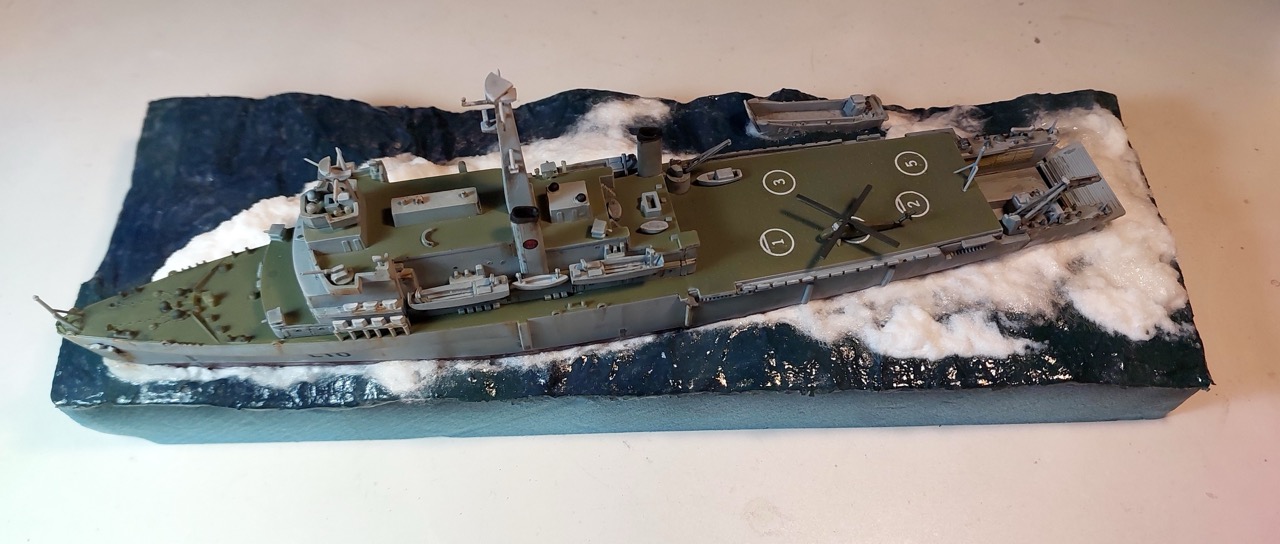

build04a

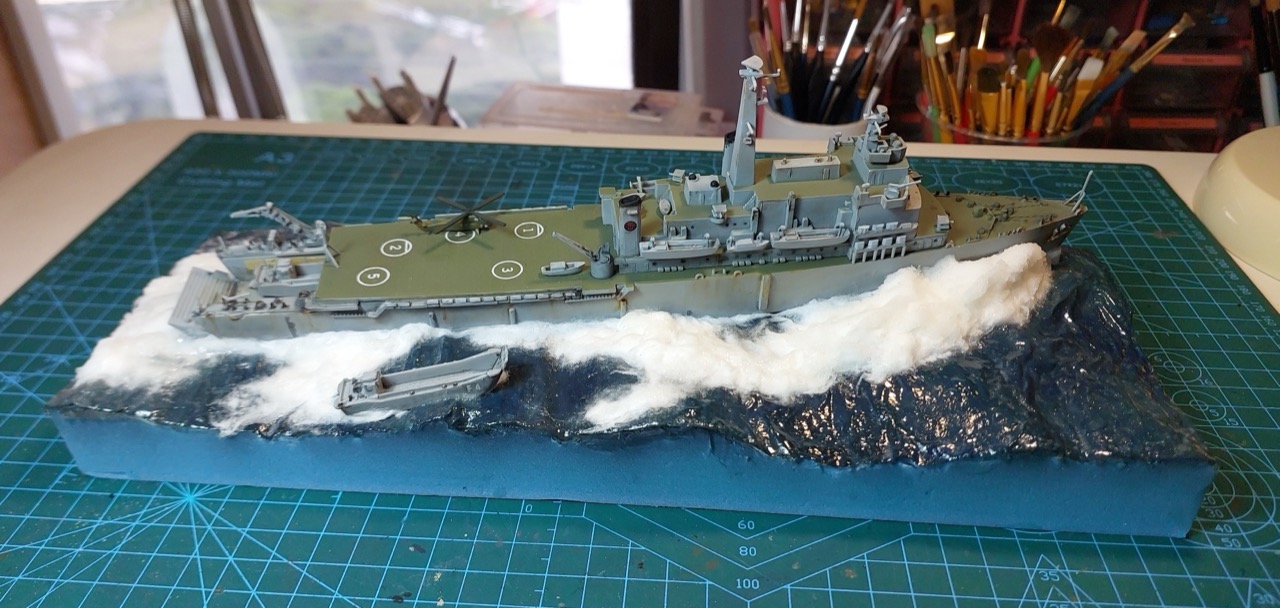

build04b

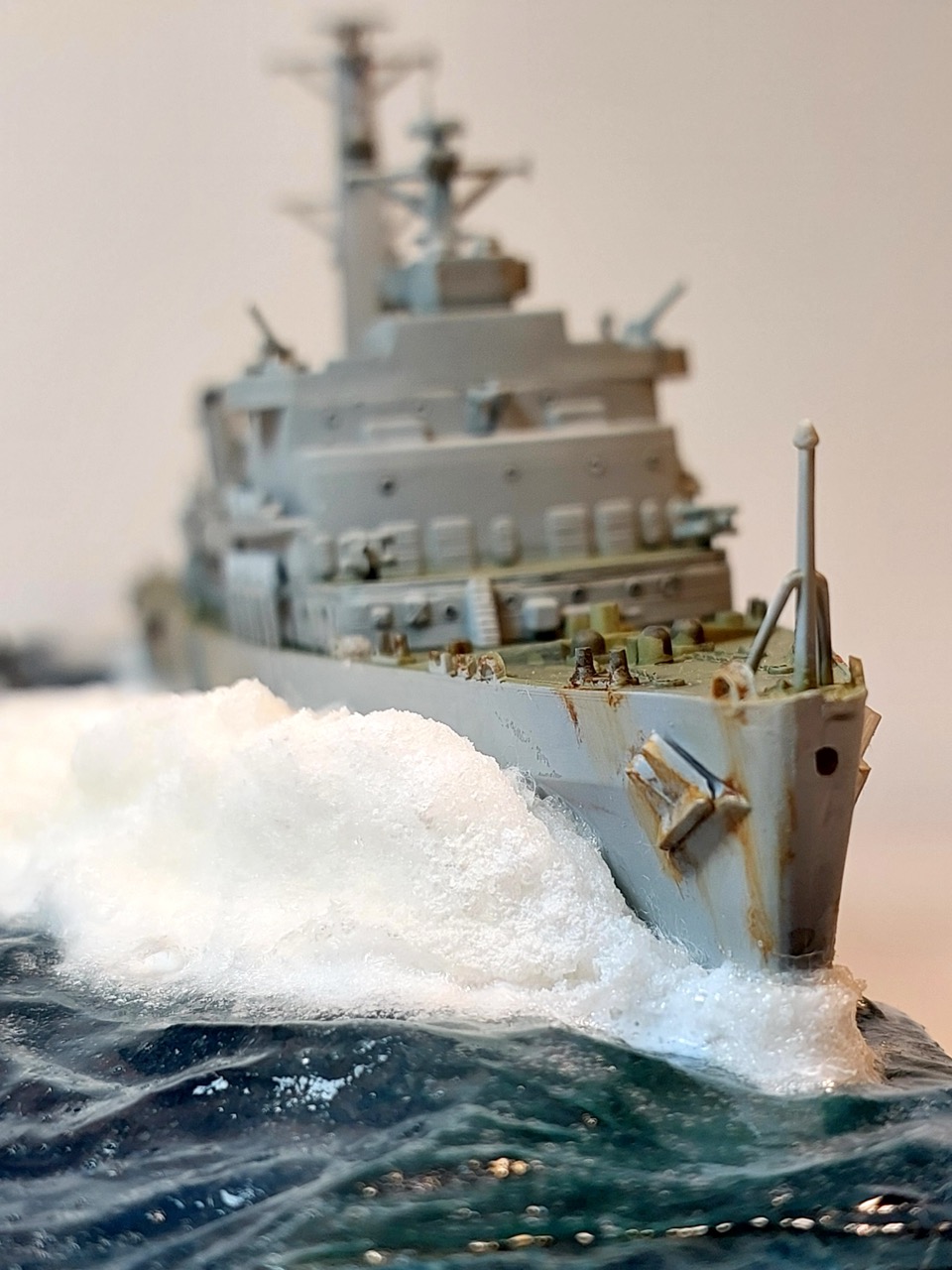

build04c

Oops, I spot some decals that need some more aggressive attention with Mr Mark Softer. Overall the decals were surprisingly good given how old my boxing was. They were quite yellowed and I didn’t expect them to work as well as they did (or at all).

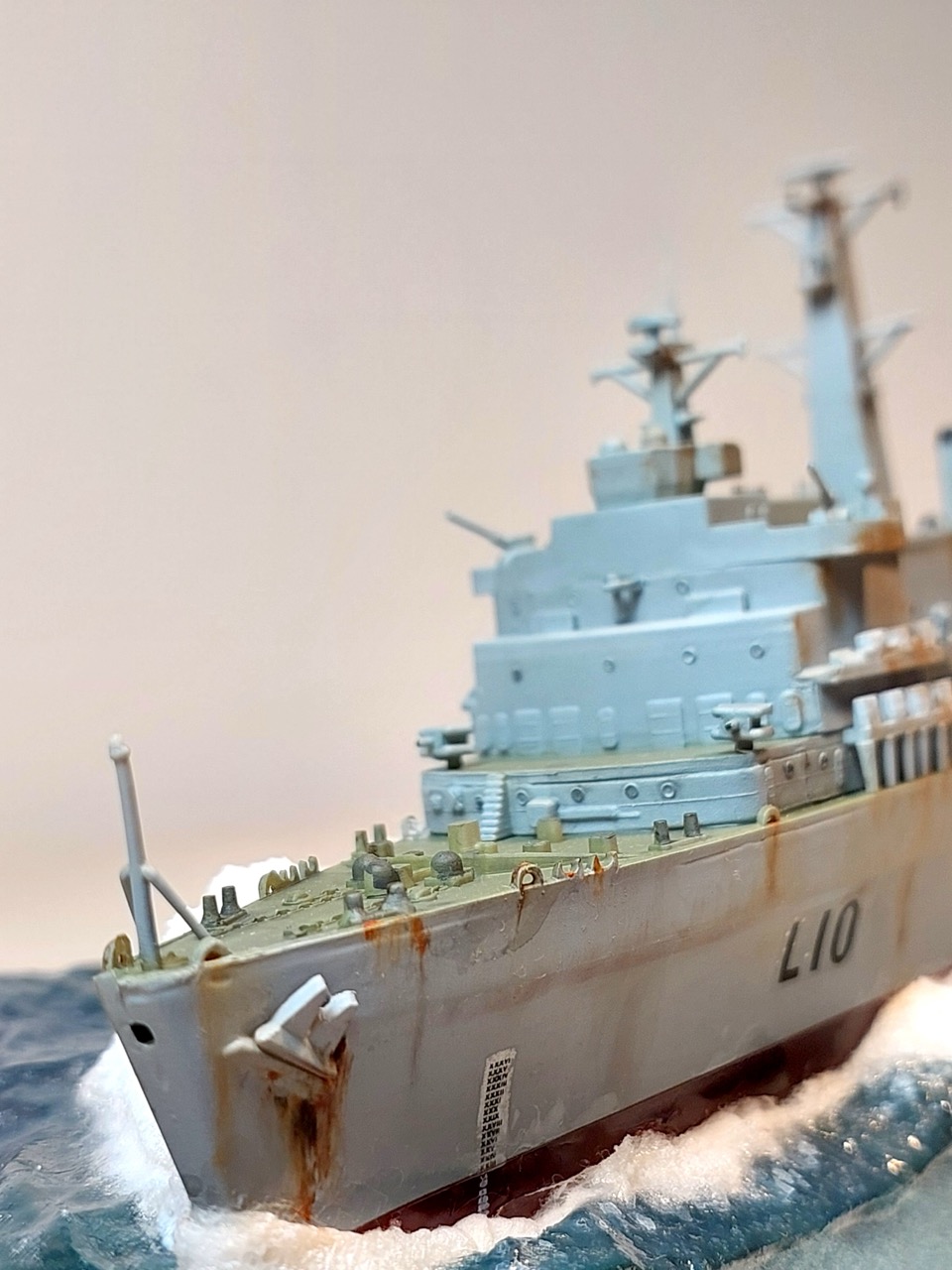

build04d

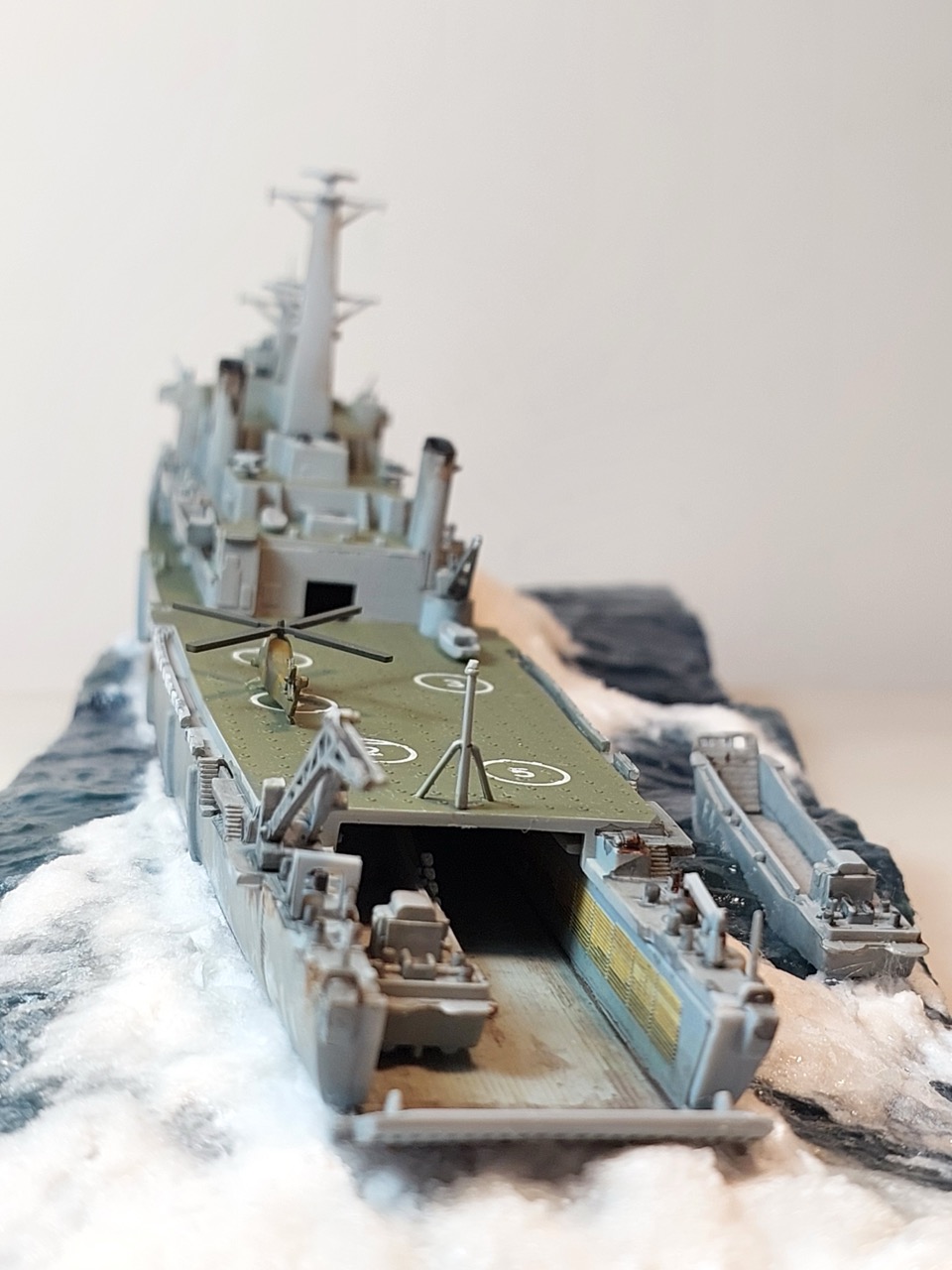

build04e

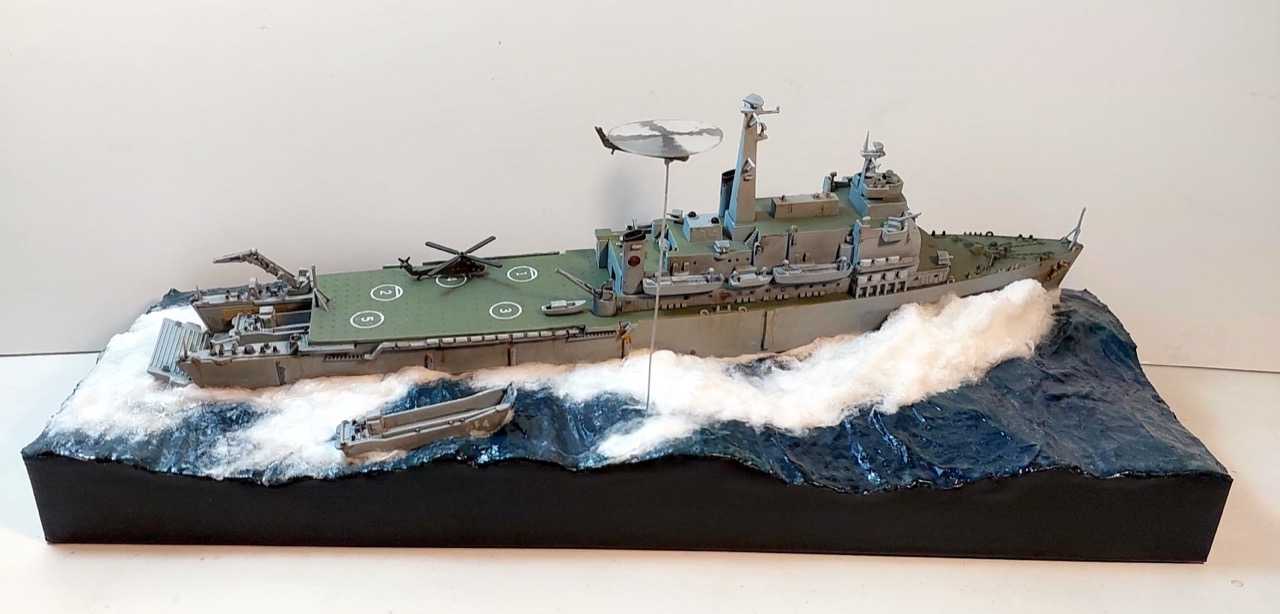

build05a

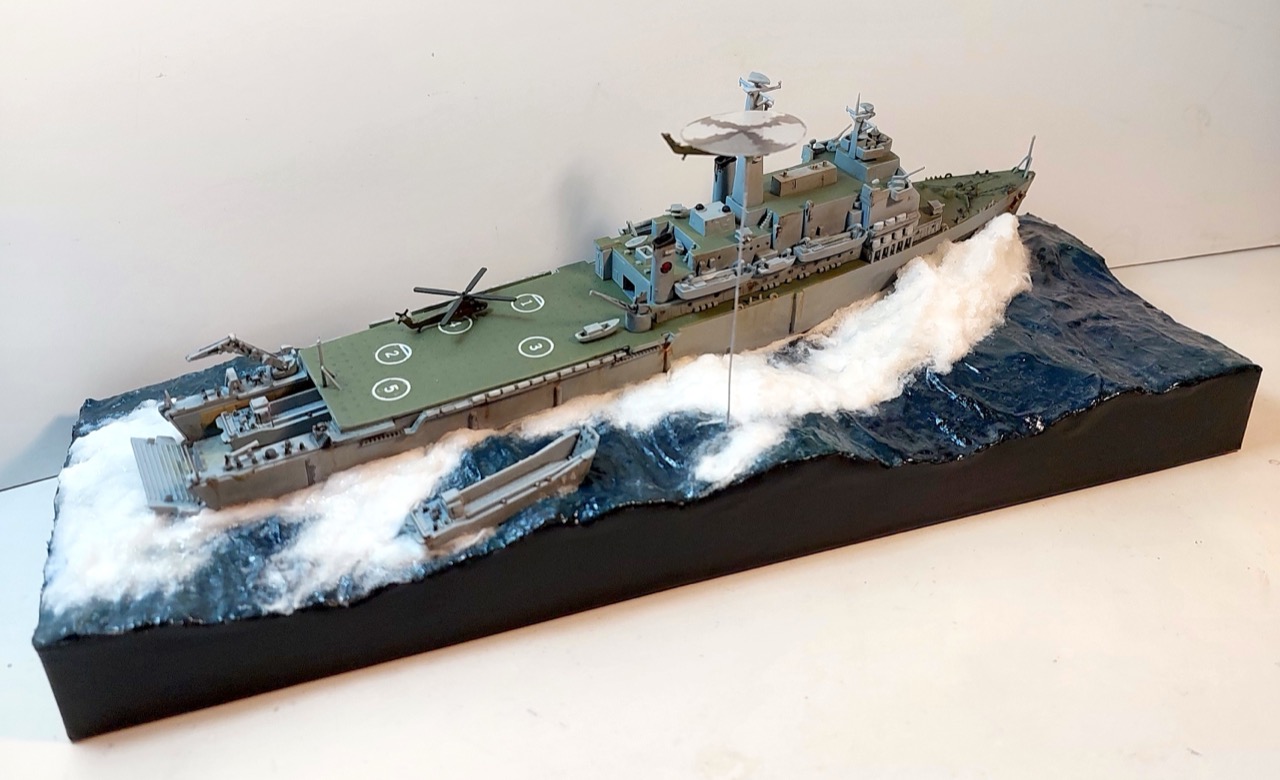

build05b

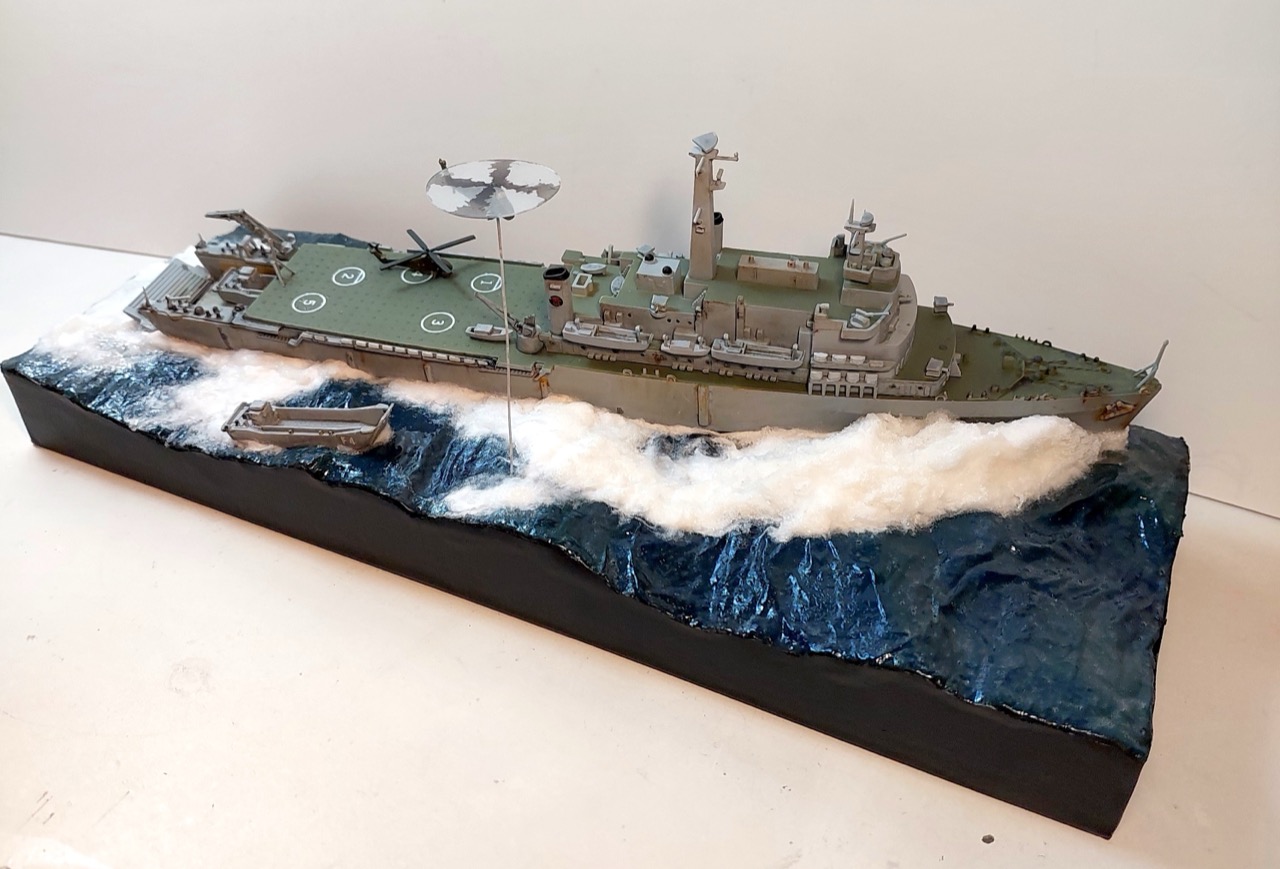

build05c

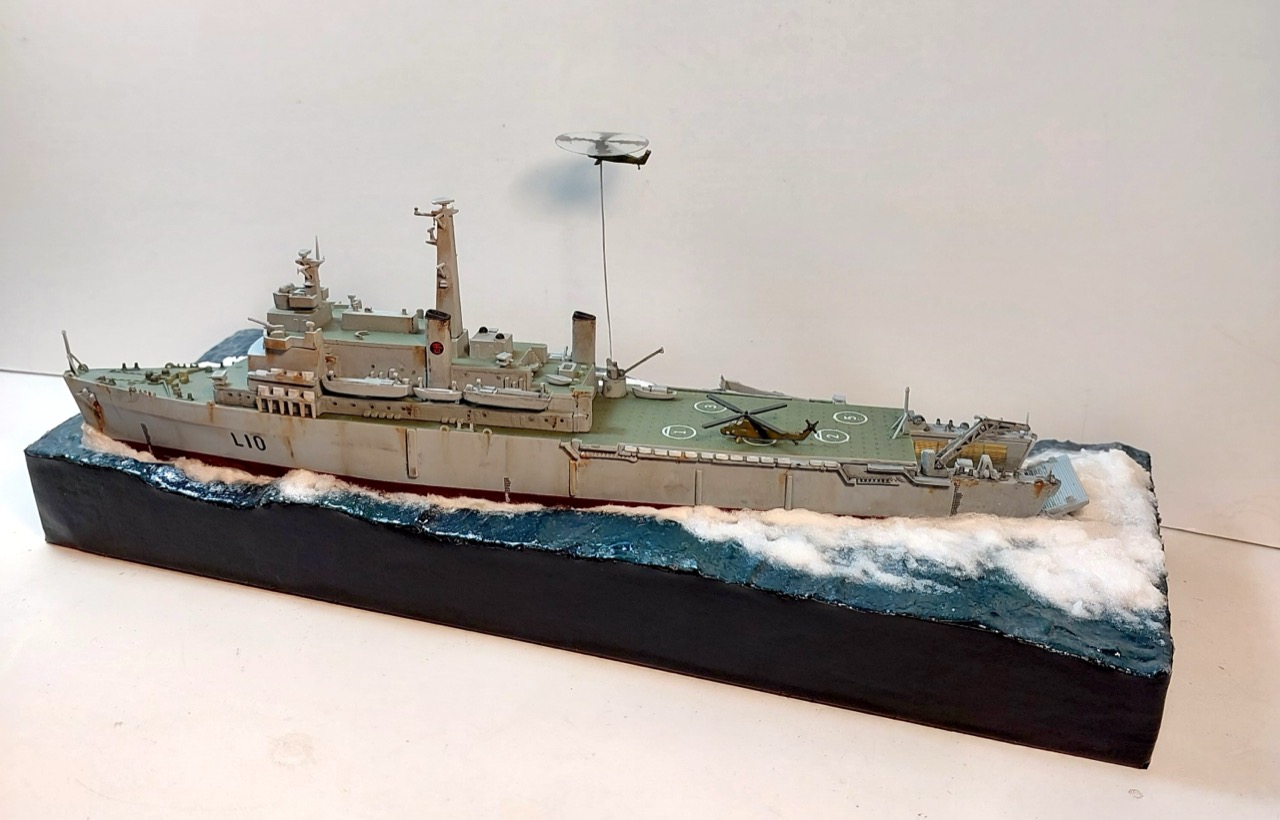

build05d

build05e

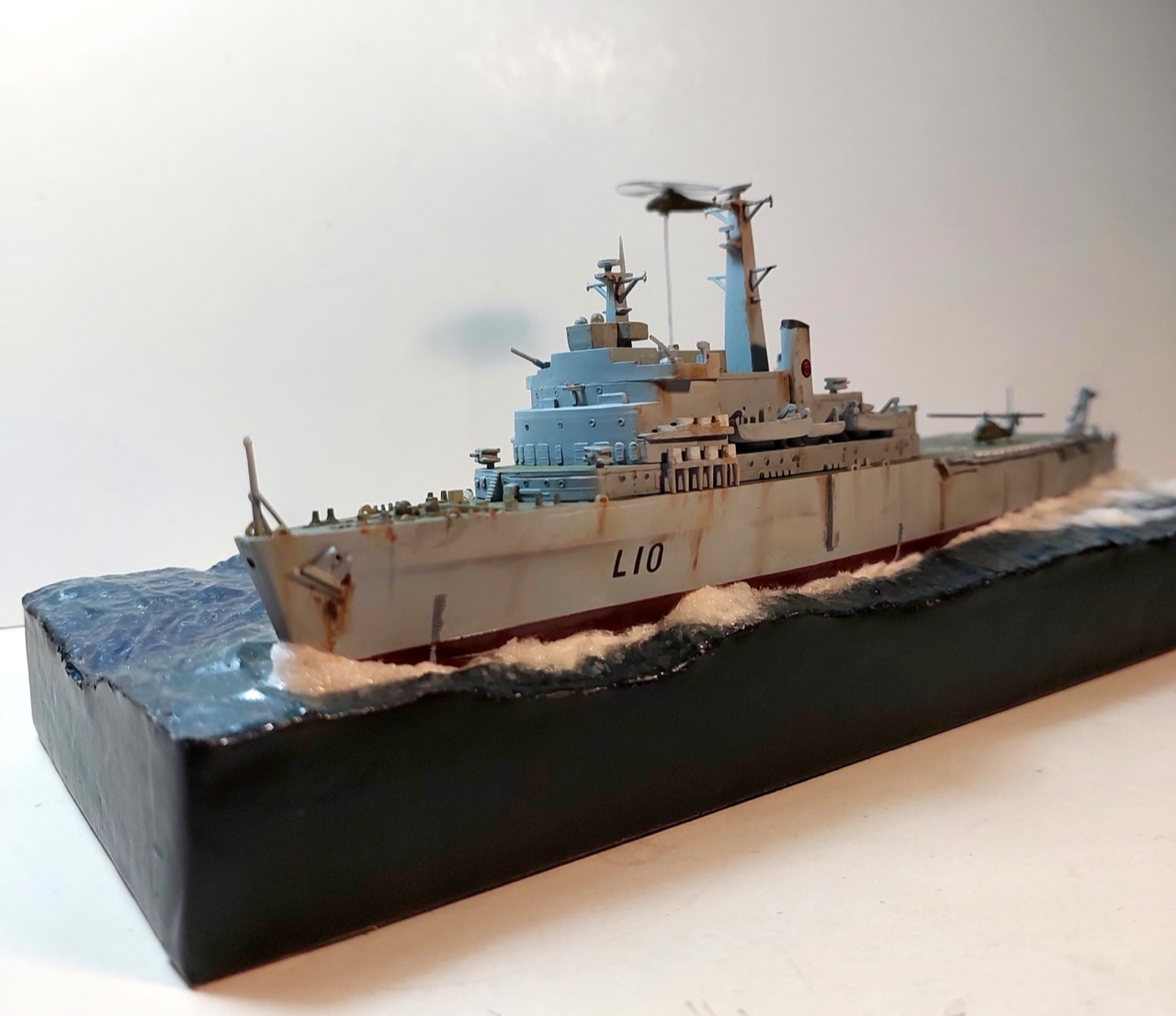

build05f

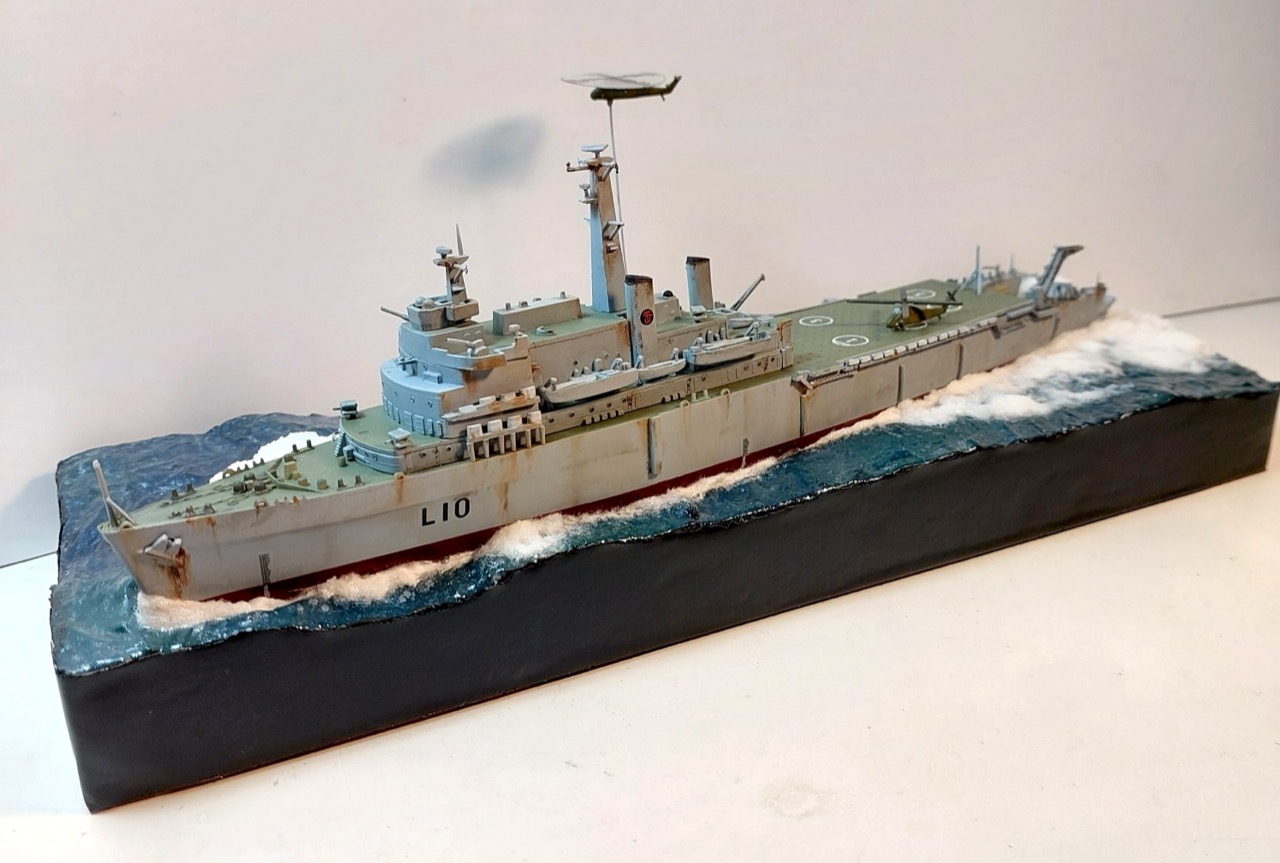

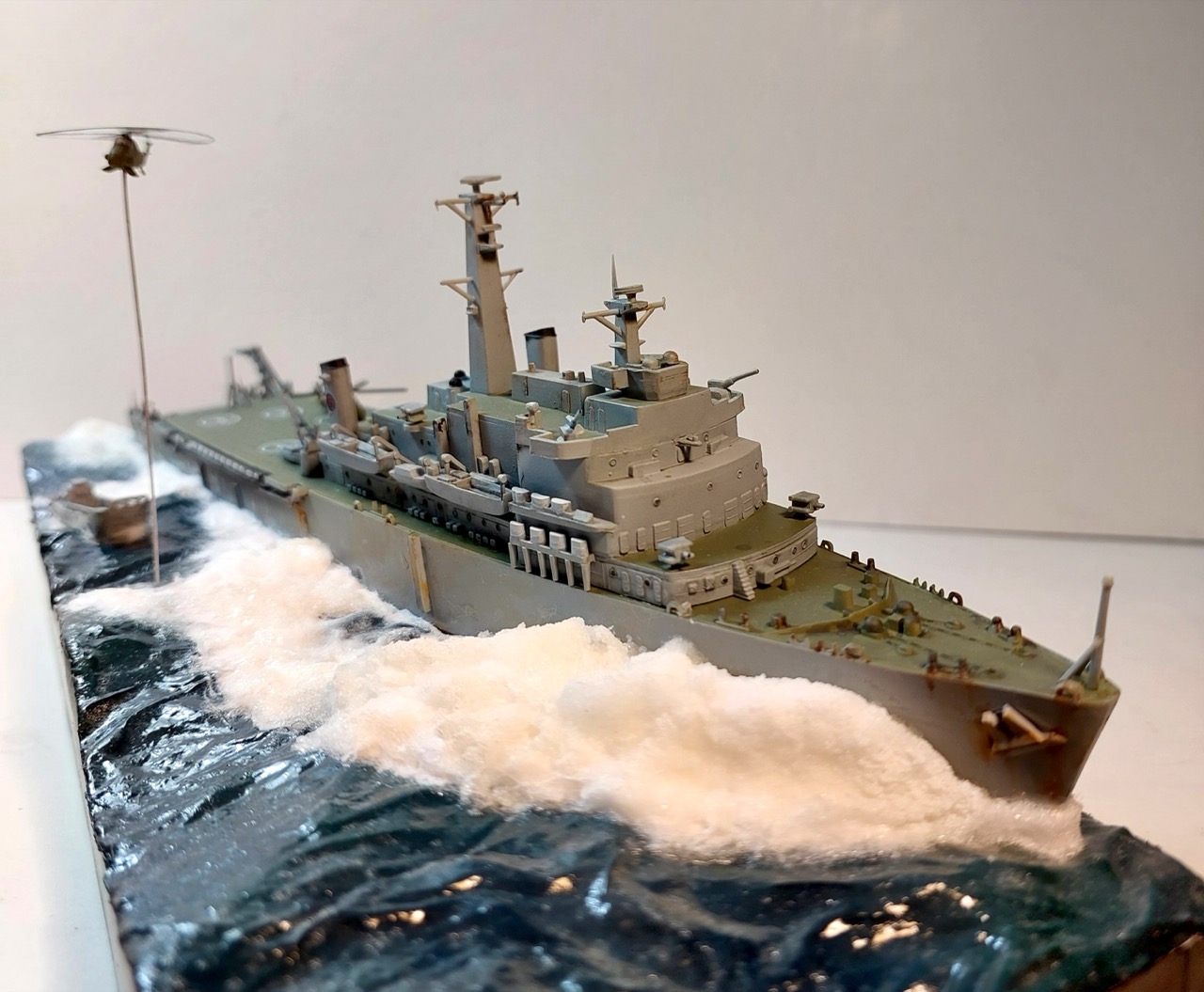

build05g

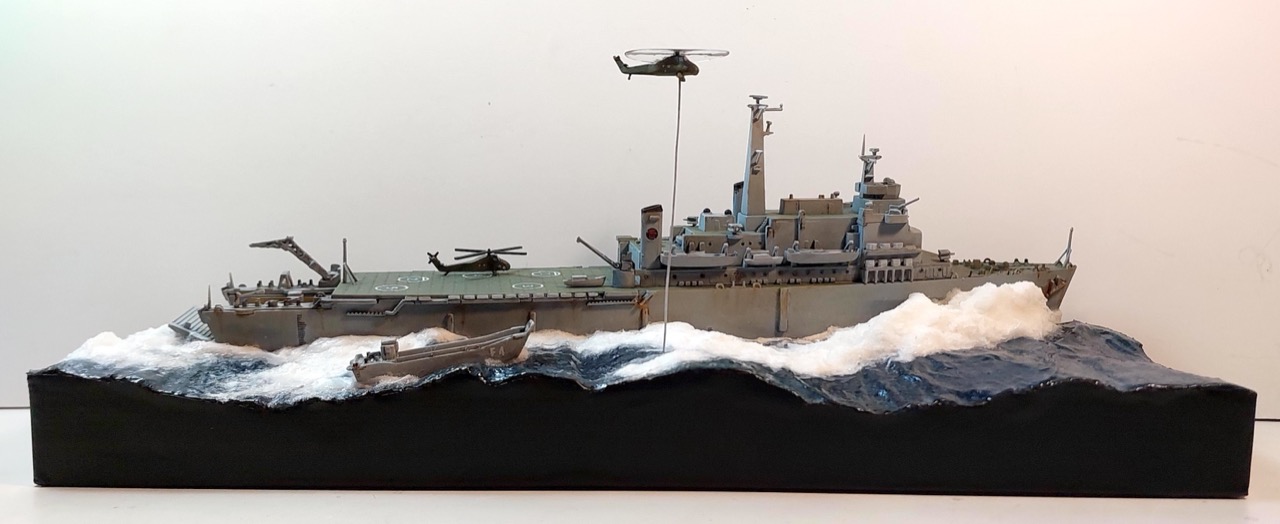

build05h

Case TBD

Next up…making a case. I’ll design a case for open/closed display, and cut it from MDF on the laser cutters at our library.

Inner base dimensions: 298mm x 100mm

Credits and References

Research References

Fearless To The Fleet (1978)

YouTube by DAVID BOBER (ROYAL NAVY FILMS)

clip

Build References

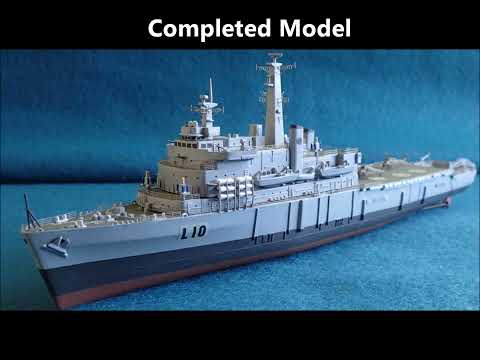

Fearless

YouTube by RF590KG84

clip
