#011 Hawker Typhoon

Building the Airfix 1:72 Hawker Typhoon Mk.Ib, electrifying it with an engine and rocket effects and displaying it with a ground attack vignette.

Build

Here’s a quick demo..

Notes

The Hawker Typhoon was originally intended as a replacement for the Hawker Hurricane (which didn’t really pan out), but it later became one of the Second World War’s most successful ground-attack aircraft.

After electrifying a Harrier GR.1, I was inspired to try some more tricks to pack in some electronics into a 1:72 scale aircraft. One of the first ideas that came to mind was to try and reproduce the iconic image of a Typhoon on ground attack with rockets over Europe.

I picked up the Medium Starter Set - Hawker Typhoon Mk.Ib A55208 from local supplier Hobby Bounties and have been slowly working away over a couple of months.

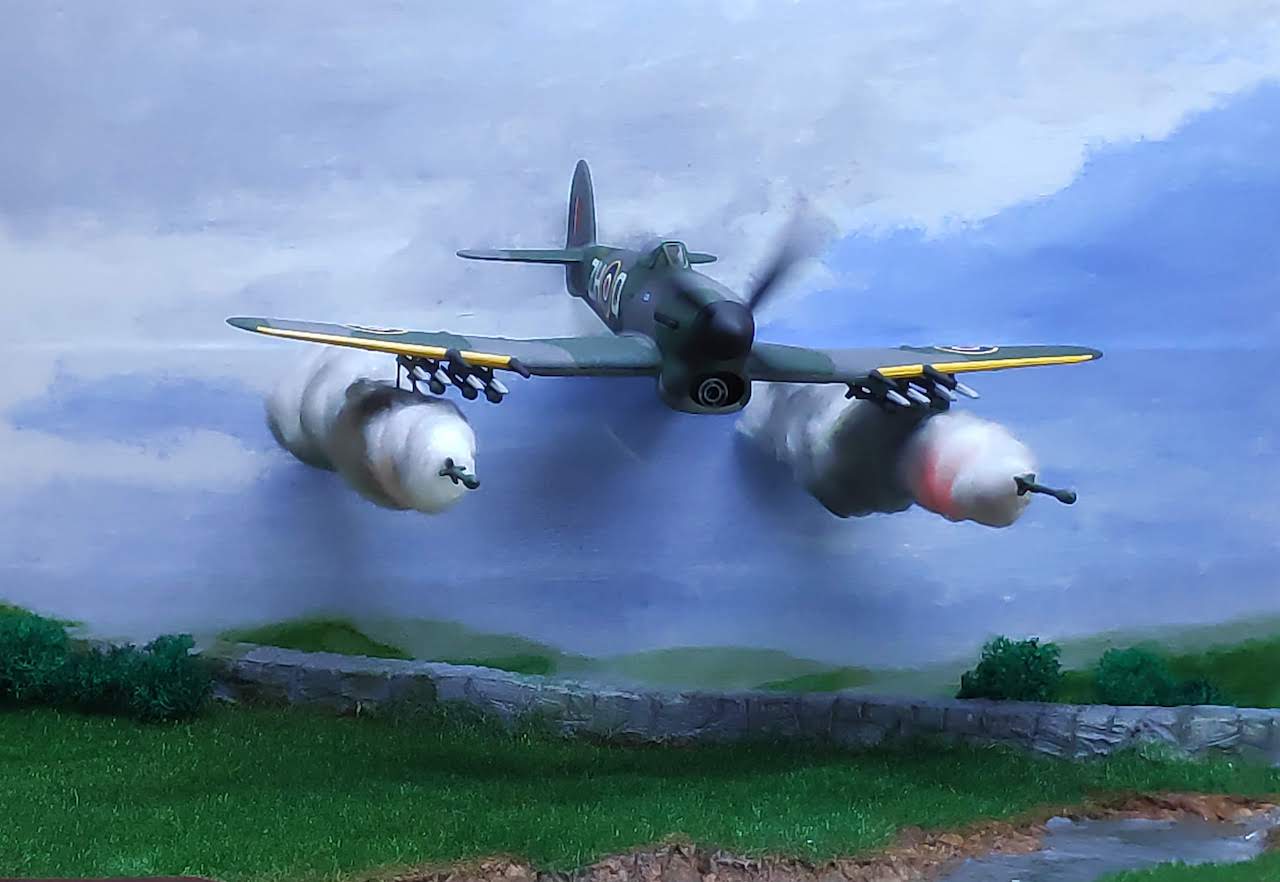

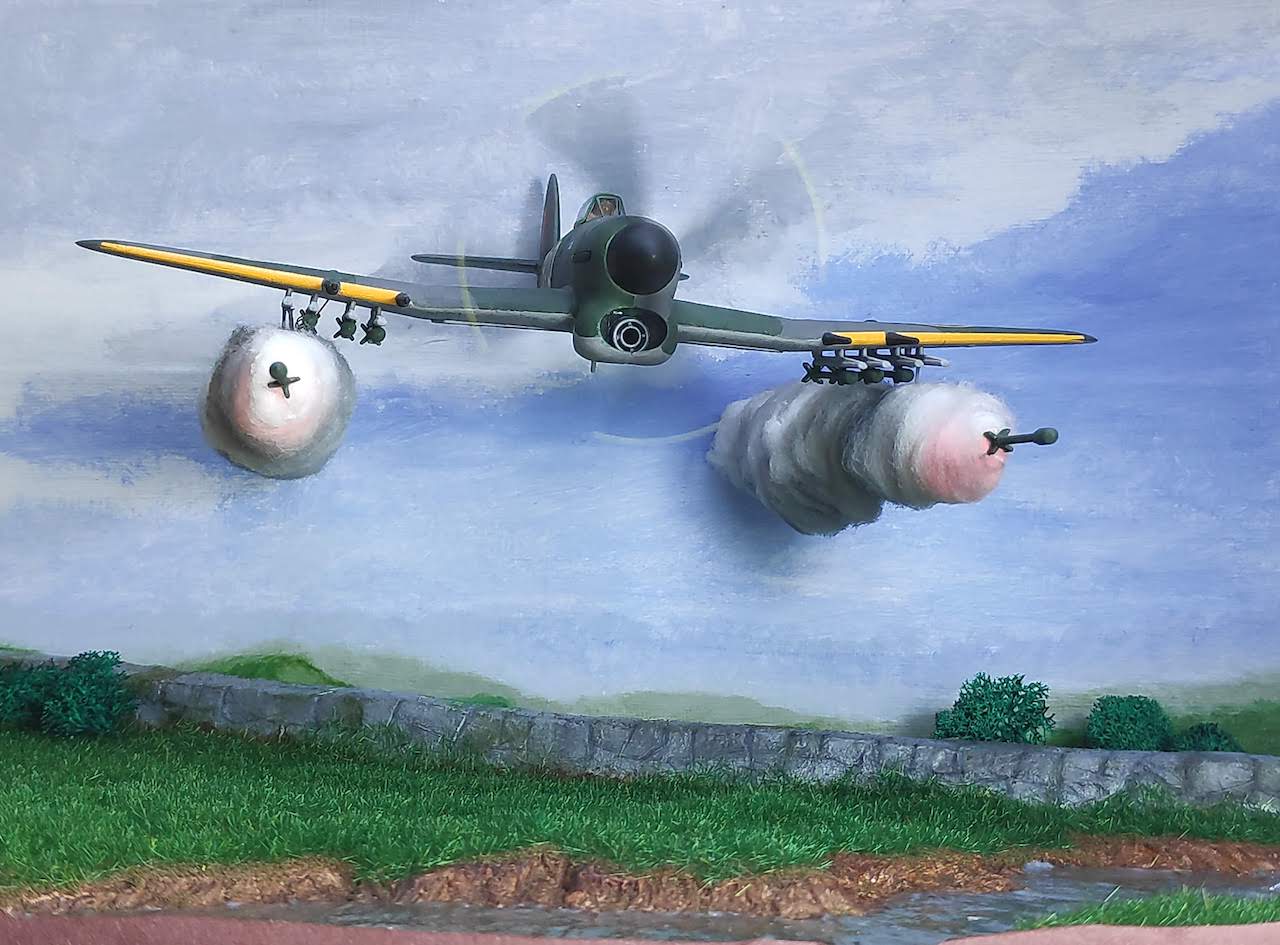

The end result:

Hawker Typhoon with motorized propeller
rocket trails with LED effects
a diorama base showing the plane on low altitude attack over generic countryside

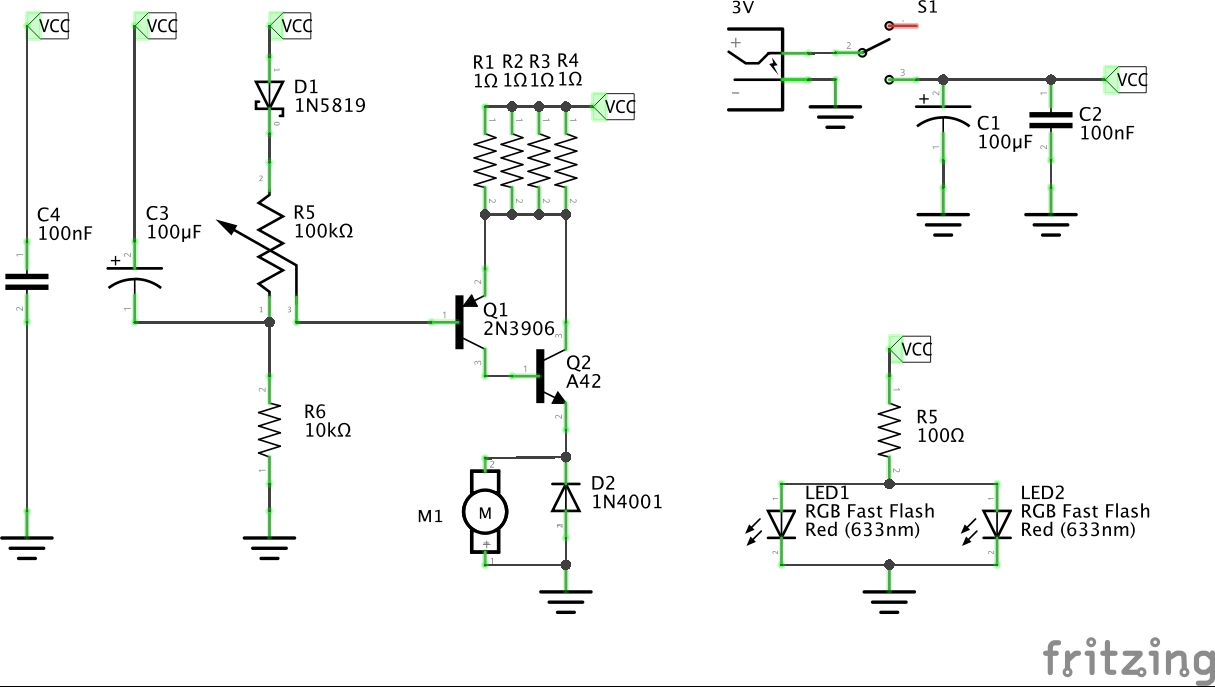

What follows are my notes from the build, including full schematics…

Typhoon Kit Build

A55208_kit

Hawker Typhoon Mk.Ib A55208 kit from Airfix is a new tool (2013) and packaged as a starter set with Humbrol paints, brushes and glue.

Engine Installation

The kit is designed to have a free spinning propeller, but I don’t think particularly designed to have an electric motor installed. There is ample room however, and I installed a 6.5 x 8mm micro DC Motor rated for 1.5V 0.005A and 20000RPM. This was from my stash of parts - but originally purchased from aliexpress.

Installing the motor means changing the sequence of assembly slightly, and also solving a few problems:

mounting the engine securely - I wrapped the motor in masking tape to the required dimensions to fit in the fuselage and glued in place. This provides a secure yet dampened, somewhat flexible mounting
connecting to the propeller - this was the biggest challenge, as any misalignment will either overload the motor or prevent the propeller from spinning at all.

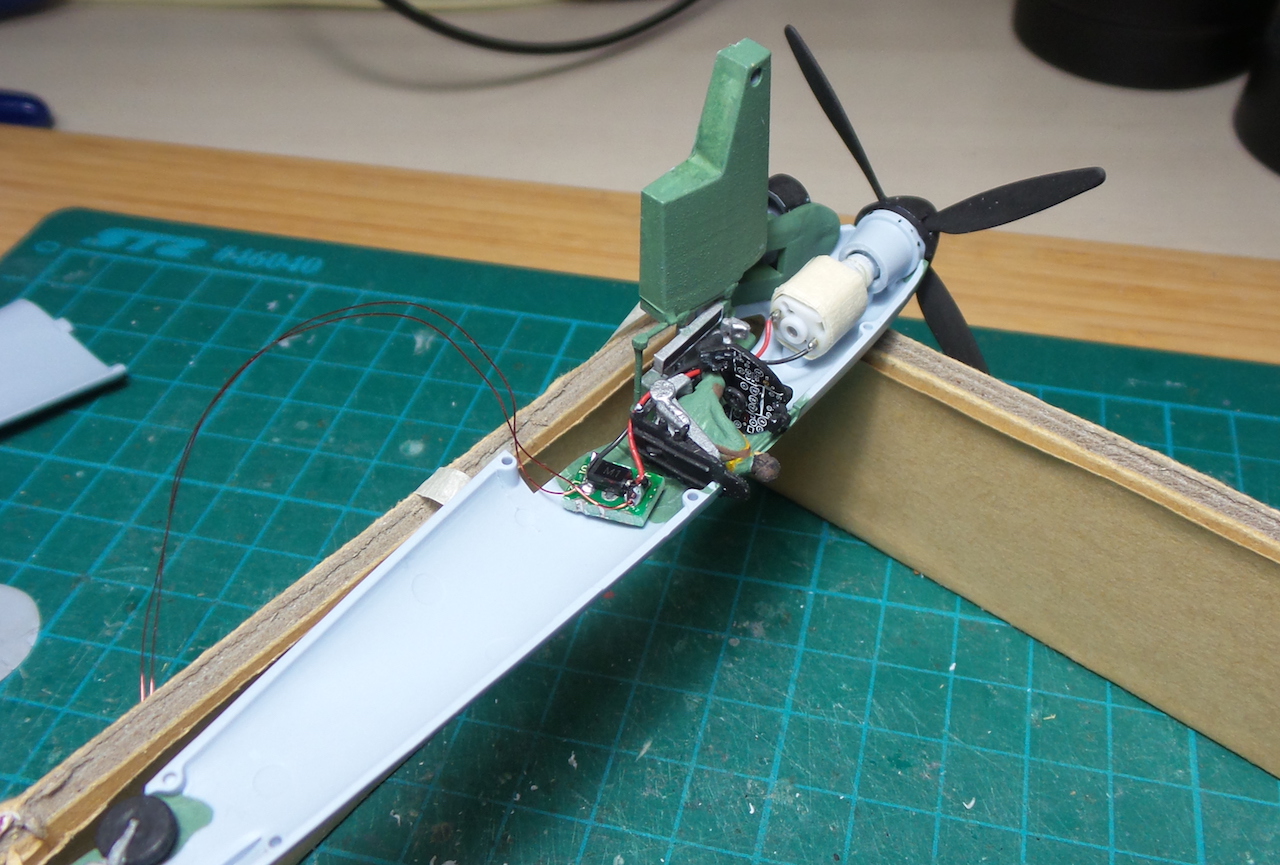

Note the reverse protection diode mounted close to the engine on a small piece of protoboard. Also important to get the polarity for the motor correct so the propeller doesn’t spin backwards!

build_01_engine_installed

Test, test, test! Before taking any irreversible steps forward in the build.

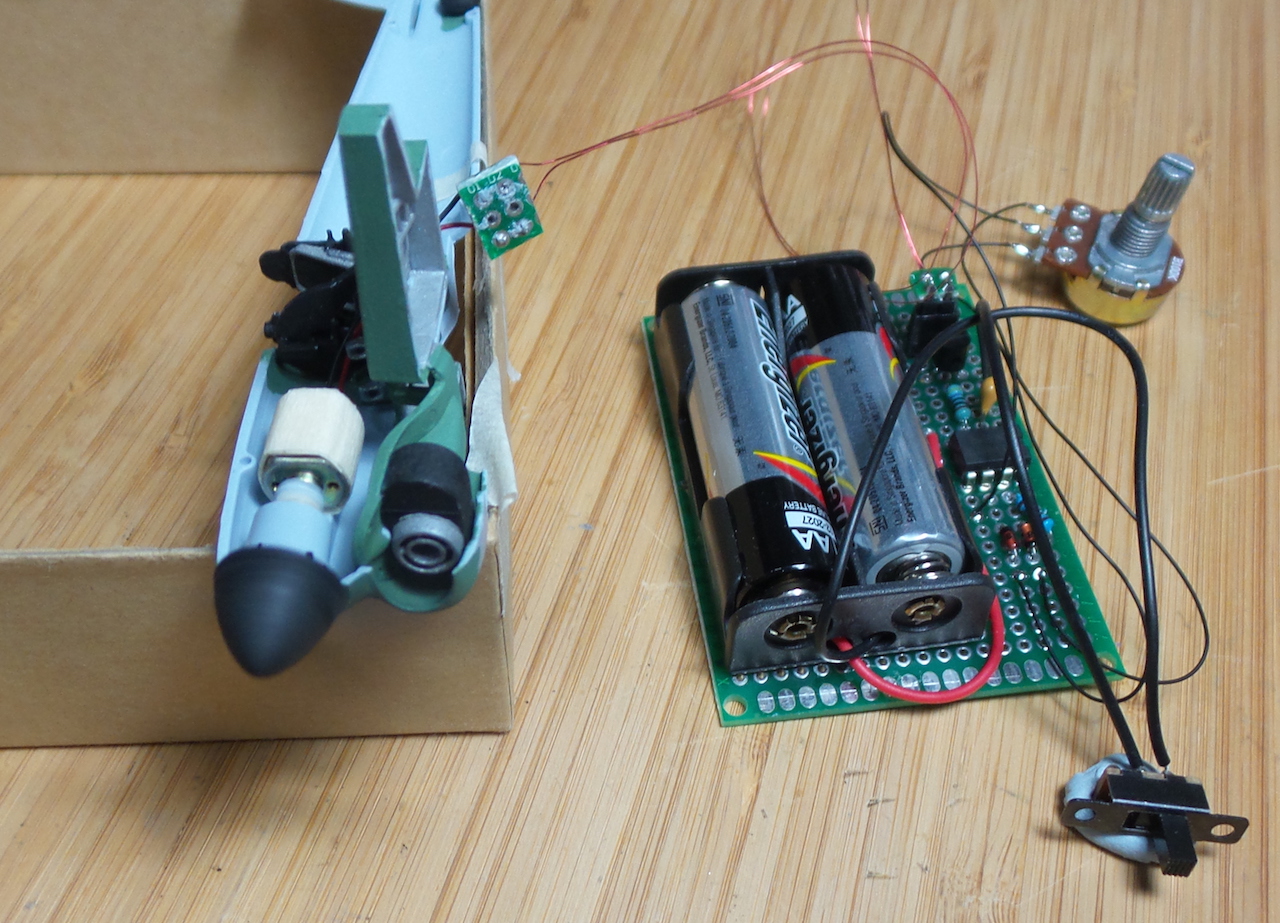

Here I’m testing the motor with a 3V 555 timer PWM circuit. Yes, it is working!

build_02_engine_test

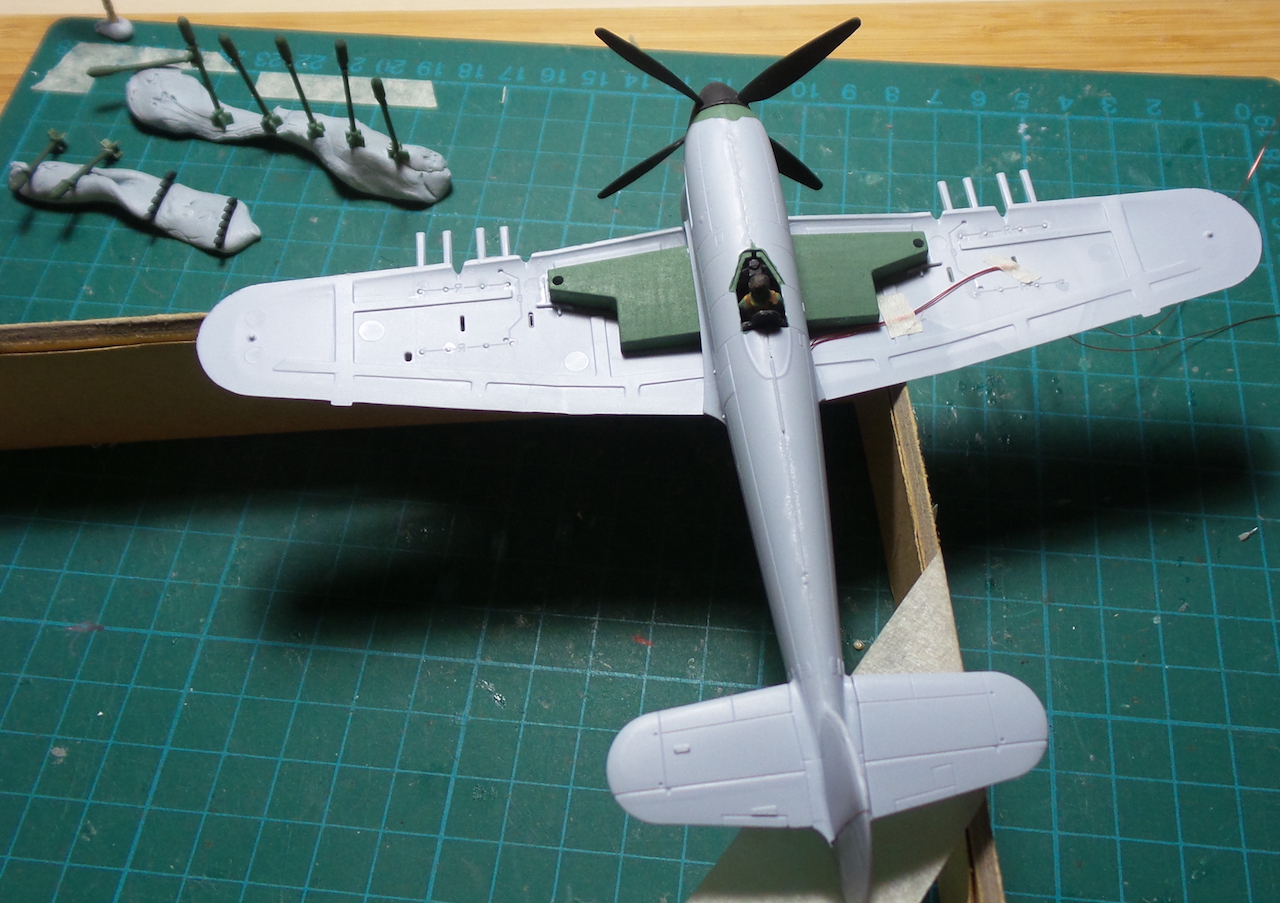

With the lower wing installed, motor control wires exit near the rocket pylons:

build_03_lower_wing

Painting the Typhoon

I’m brush painting the kit with mainly the Humbrol paints supplied in the kit. Getting a reasonable finish takes many layers of thinned paint, but it’s hard to get a solid coverage without having the paint end up quite thick. PS: I now have an airbrush, so I think this may be the last time I brush paint larger surfaces!

Colour	Paint	Notes
Dark Green	Humbrol 30
Black	Humbrol 33
Aluminium	Humbrol 56
Light Grey	Humbrol 64
Cockpit Green	Humbrol 78
Ocean Grey	Humbrol 106
skin tone	ad-hoc blend of art acrylics	pilot skin
Lemon Yellow	Vallejo 70.952	propeller tips and control box

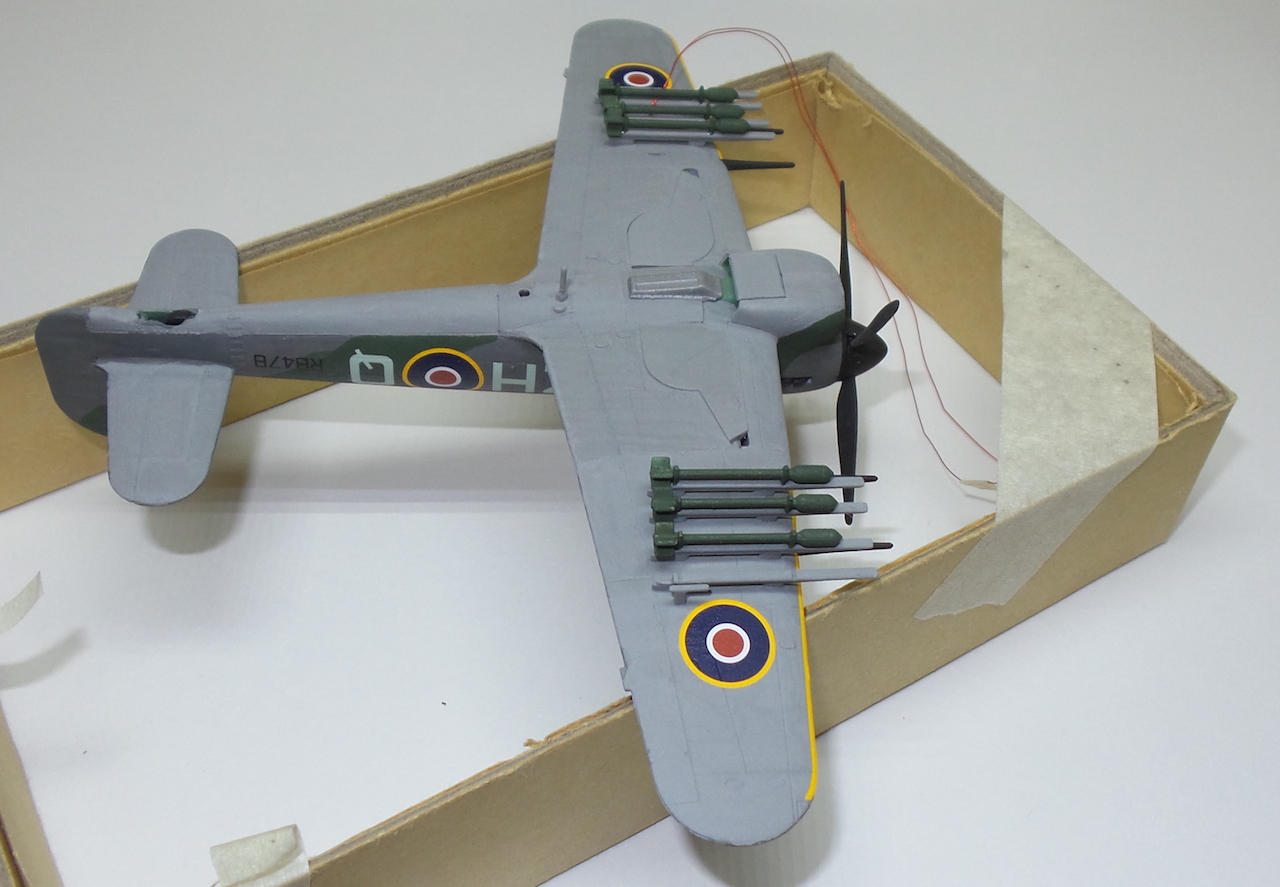

Here are some shots before weathering and final assembly. Note that only 6 out of 8 rockets attached. Two will be in-flight!

After painting, the plane was finished with Mr Hobby Flat Matt Topcoat.

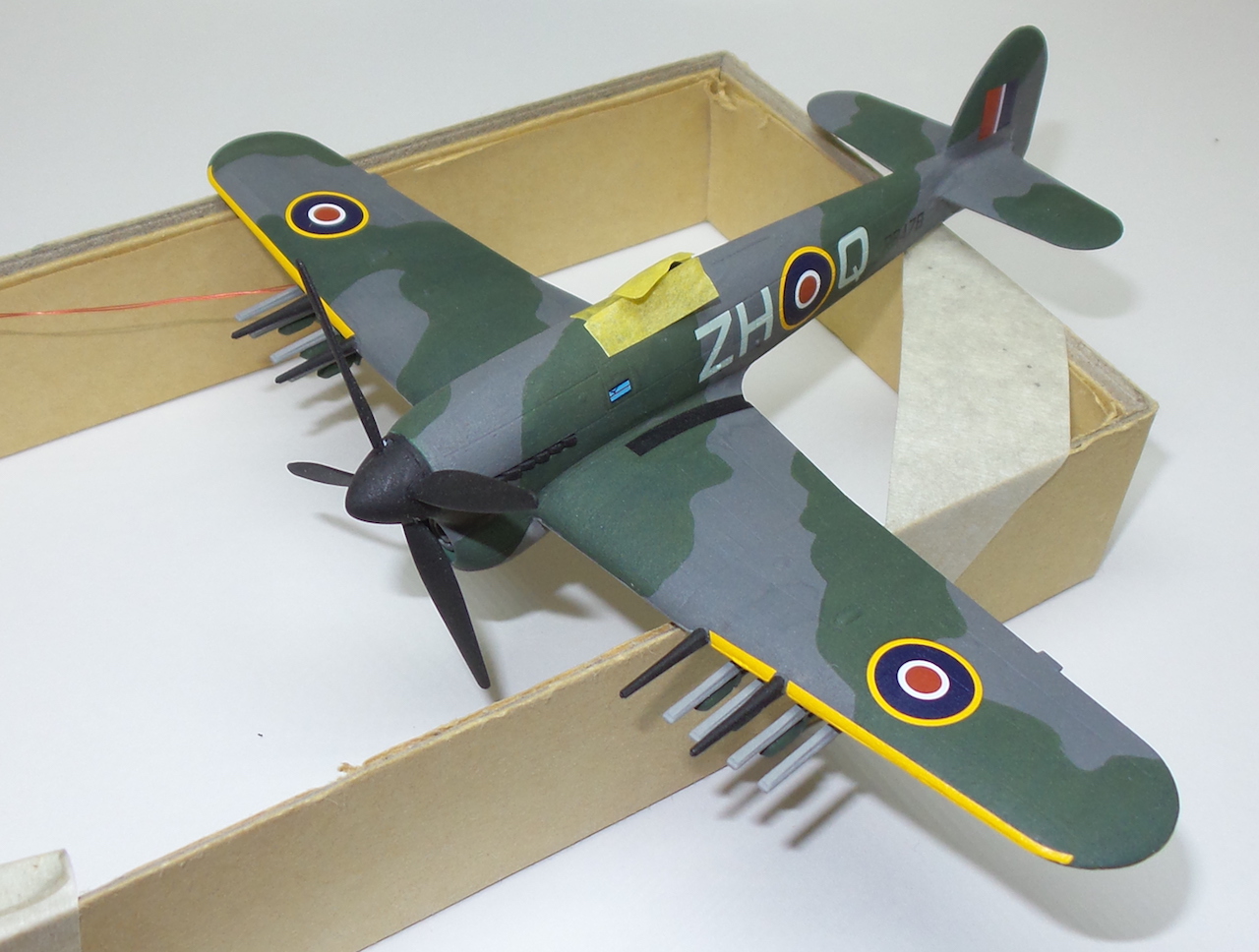

build_04_plane_paint_upper

build_05_plane_paint_lower

Building the Vignette Base

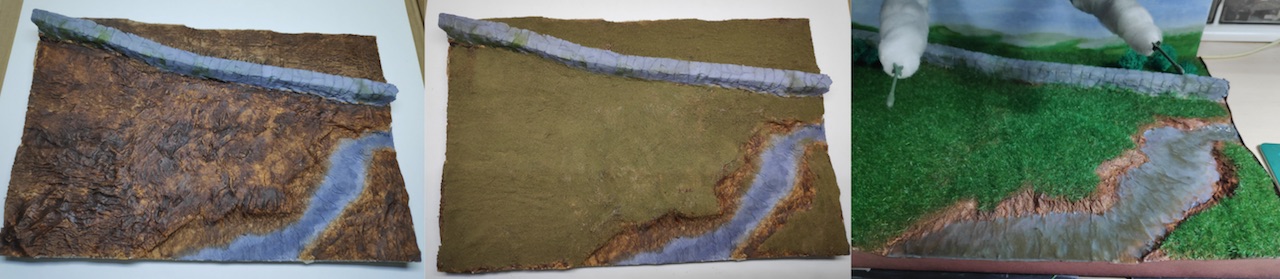

The vignette base is an ad-hoc rendition of an imaginary field with a stone wall and stream. Construction basics:

Basic construction:

styrene foam base and structure
toilet paper + mod podge
plaster of paris for the wall rendering

Detailing:

Woodland Scenics earth foam
static grass
some dyed lichen for bushes
mod podge and gloss varnish for the stream (colours a bit off in the photo as it was still drying)

build_06_base

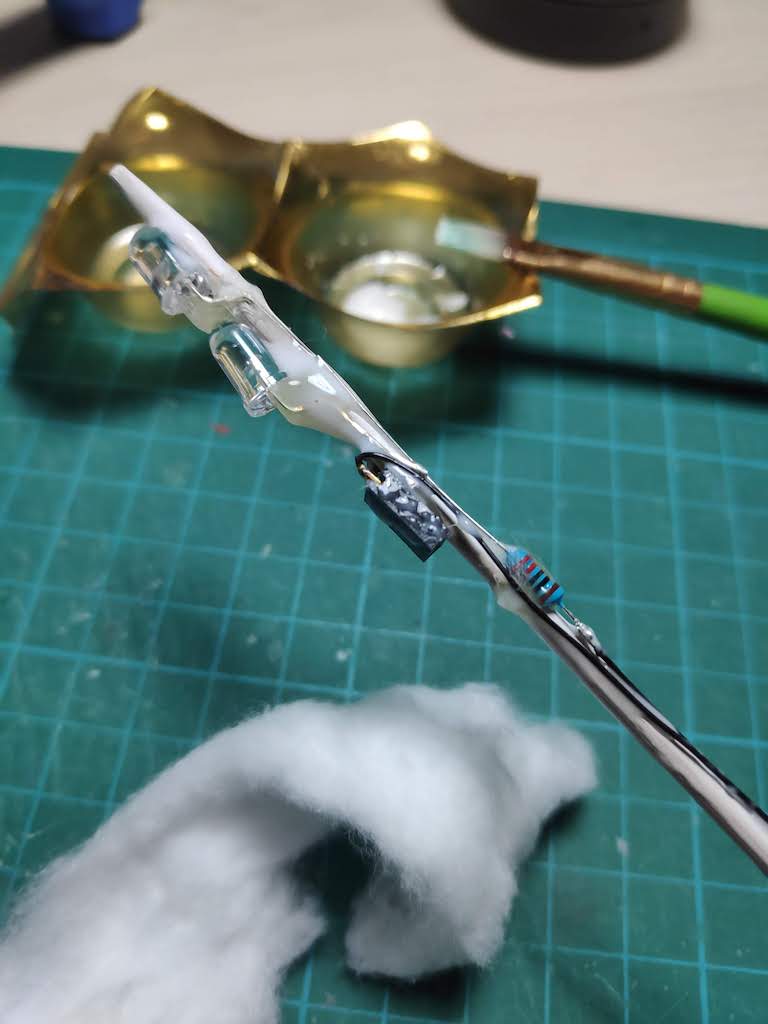

The rocket trails a BBQ sticks with LEDs and current-limiting resistor swathed in cotton wool and air-brushed for highlights.

build_07_led_install

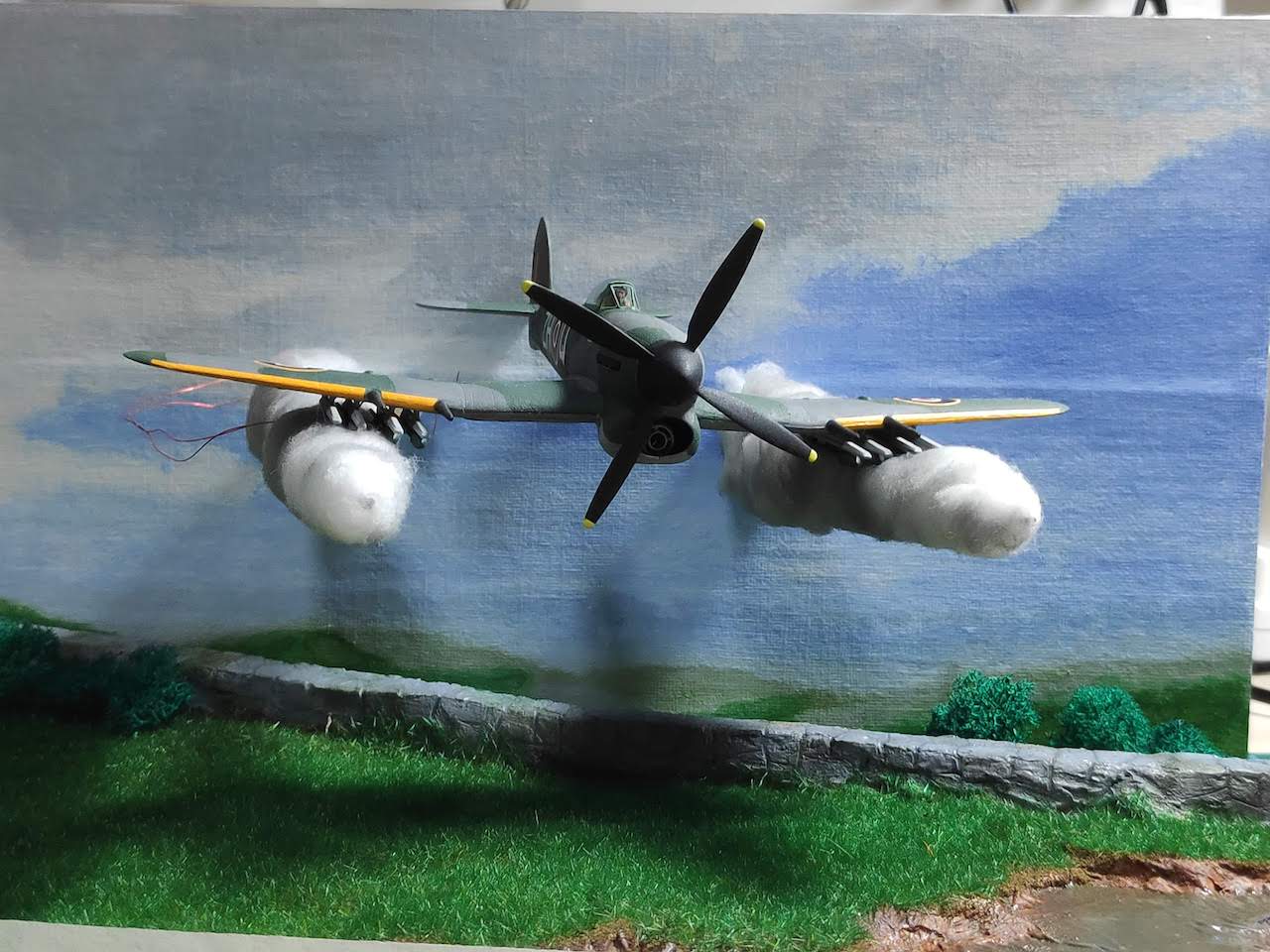

The backdrop is a quick hand-painted generic “cloudy sky”. This is from a trial assembly before everything is complete:

build_08_trial_fit

Final Assembly

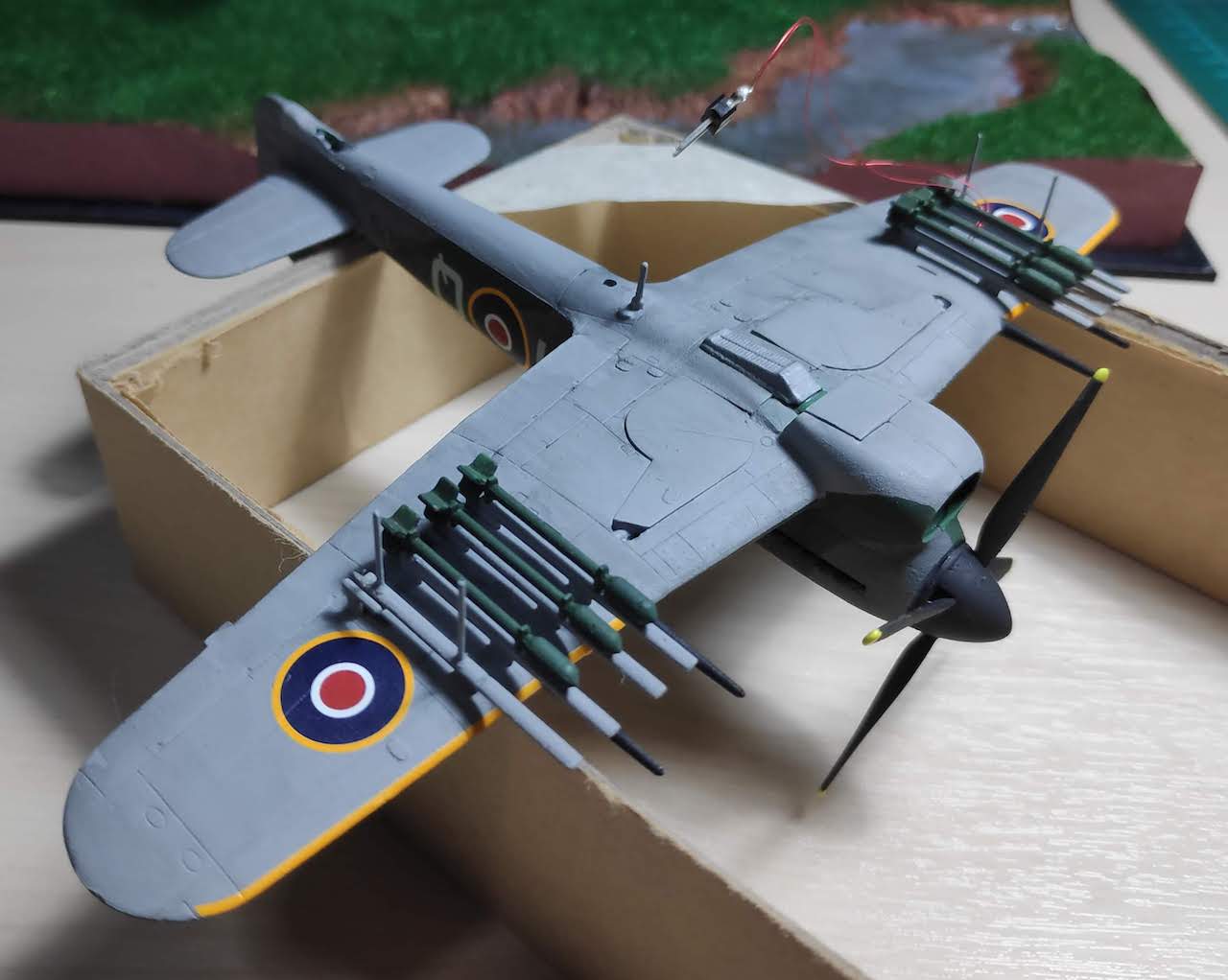

The motor control wires cut to length and terminated with pin headers. These plug into a socket embedded in the starboard rocket tail. I’ve added some small stand-offs (actually through-hole component wire trimmings) to the empty rocket pylon. These will allow the Typhoon to be positioned slightly above the rocket smoke trail.

build_09_plane_final_assembly

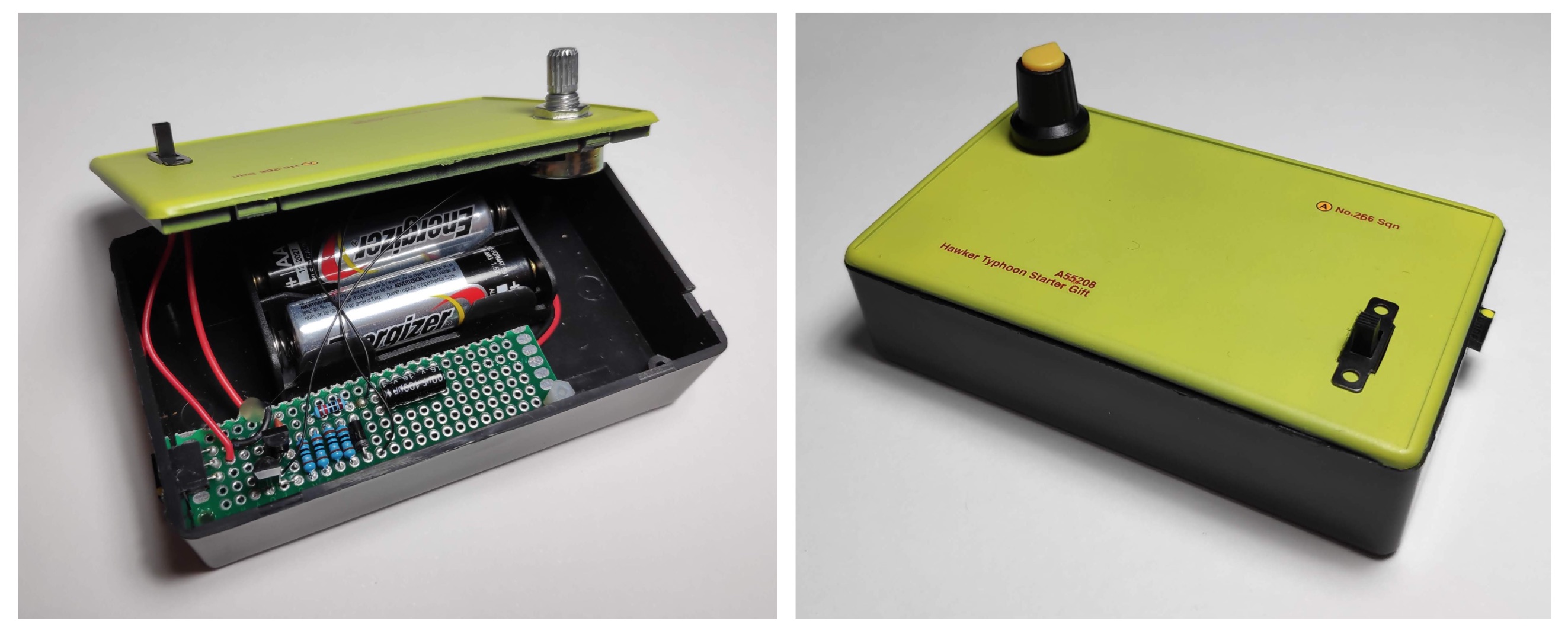

The external electronics are packed into a 100x60x25mm black plastic electronic project box. The cover was airbrushed lemon yellow with the Airfix kit identification decals attached, and finished with Mr Hobby Semi-gloss Premium Topcoat.

build_10_controller

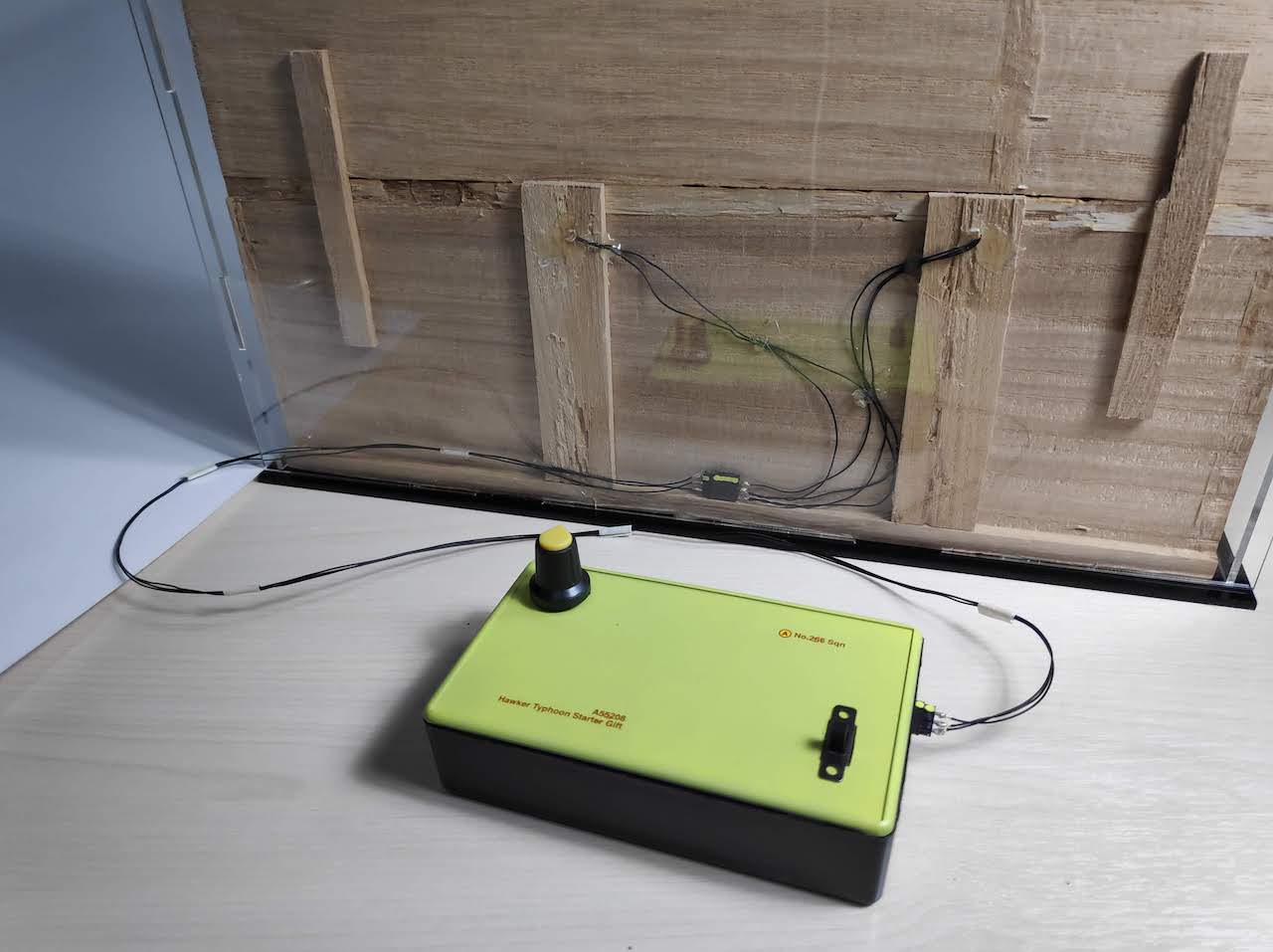

The controller plugs into a wiring socket on the back of the backdrop:

build_11_rear_connections

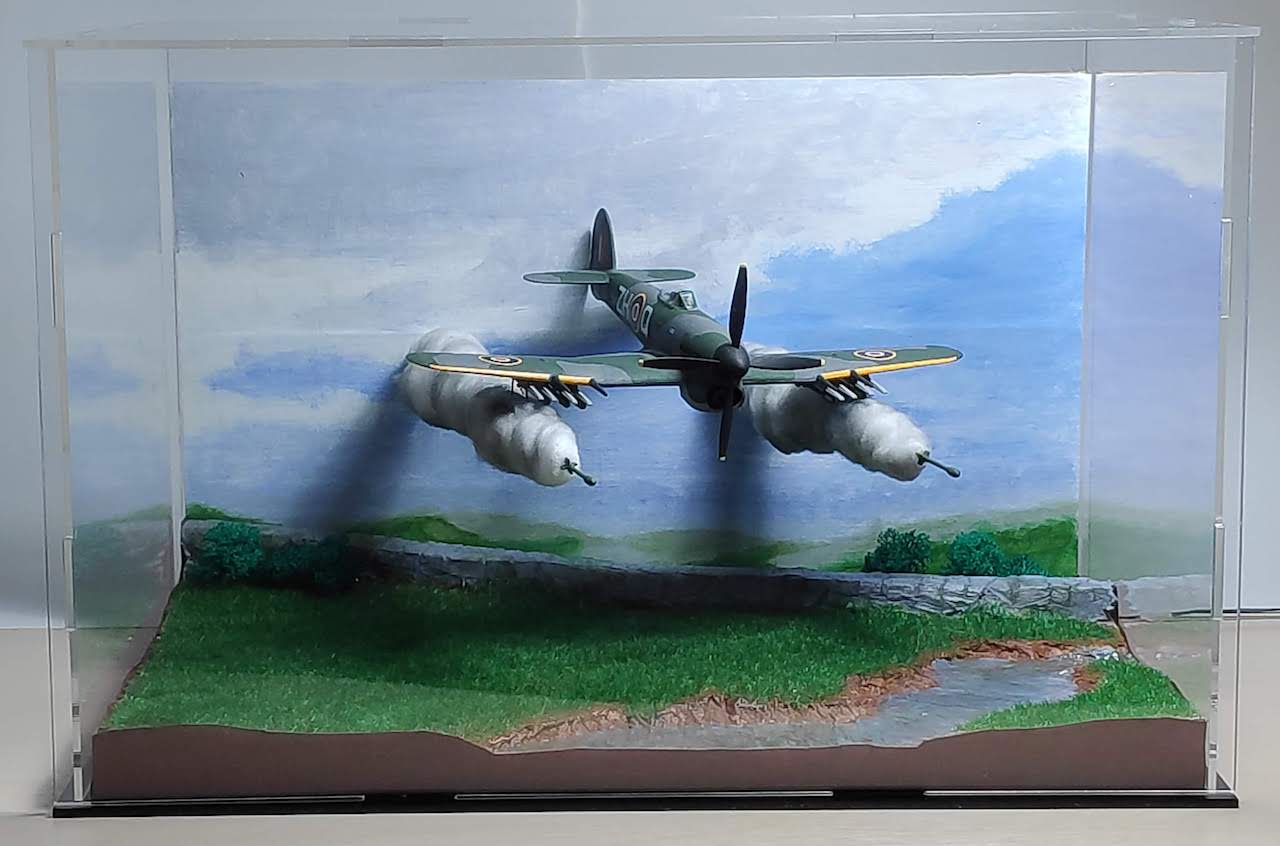

The finished project is housed in a 30x20x20cm Acrylic Display Case:

build_12_case

Electronics

The electronics comprise:

3V battery power supply with switch
RGB fast flashing 5mm LEDs with 100Ω current-limiting resistor
- the RGB LEDs run a fast animation sequence
- by having two in parallel for each rocket, the effects are randomized somewhat
- a better effect could probably be achieved with red fast flash LEDs or custom flashing circuitry but since I had some of these RGB fast flash LEDs on hand I went with those - the effect is not bad despite some of the colours not being that authentic
a simple high-side current control circuit for the motor with variable resistor for some degree of speed control. The current-control approach is smoother than PWM, however it does sacrifice torque at “lower speeds”.

Since the motor control is high-side, only 3 wires are needed to connect to the project: ground; LED power; motor power.

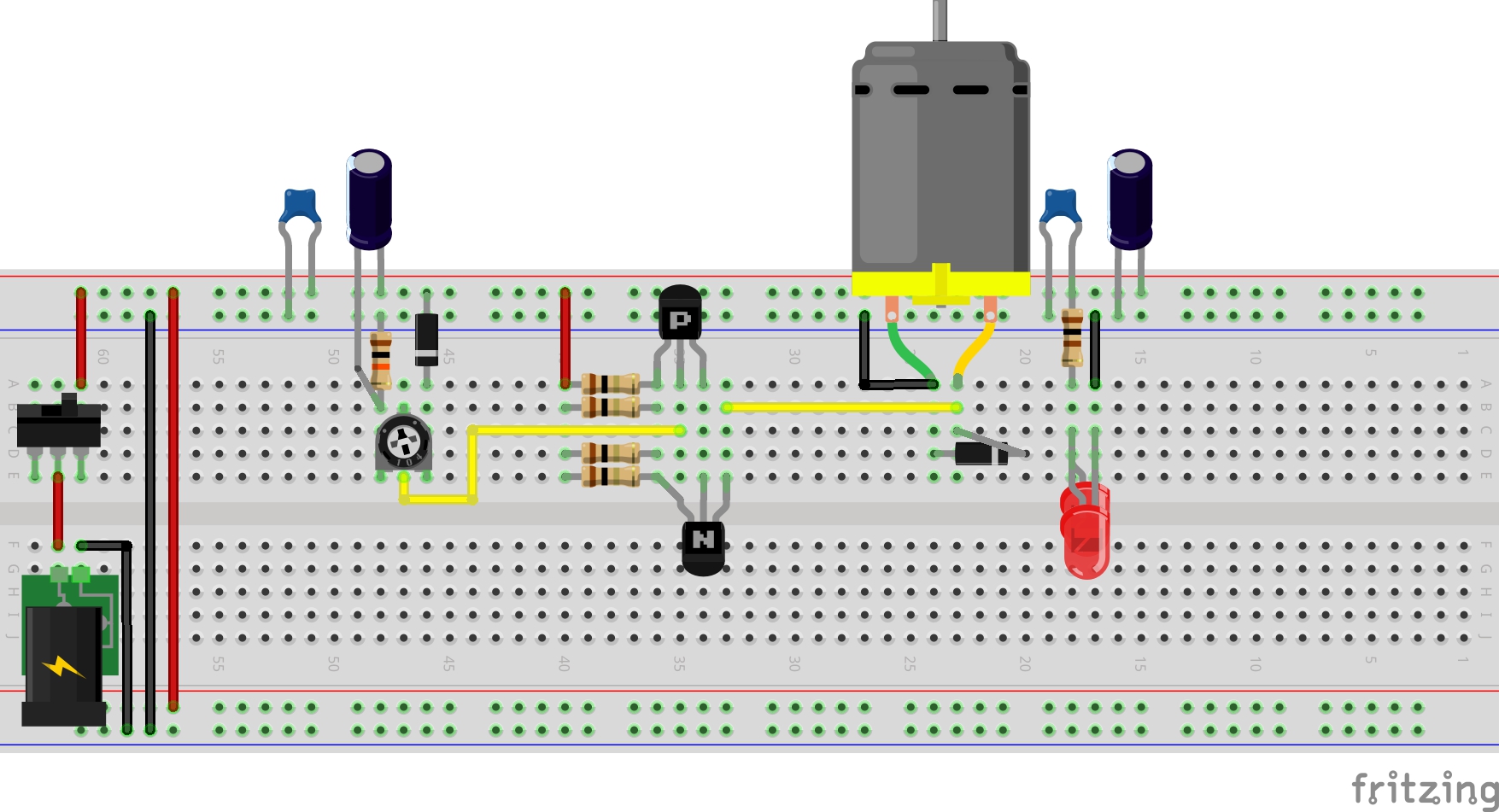

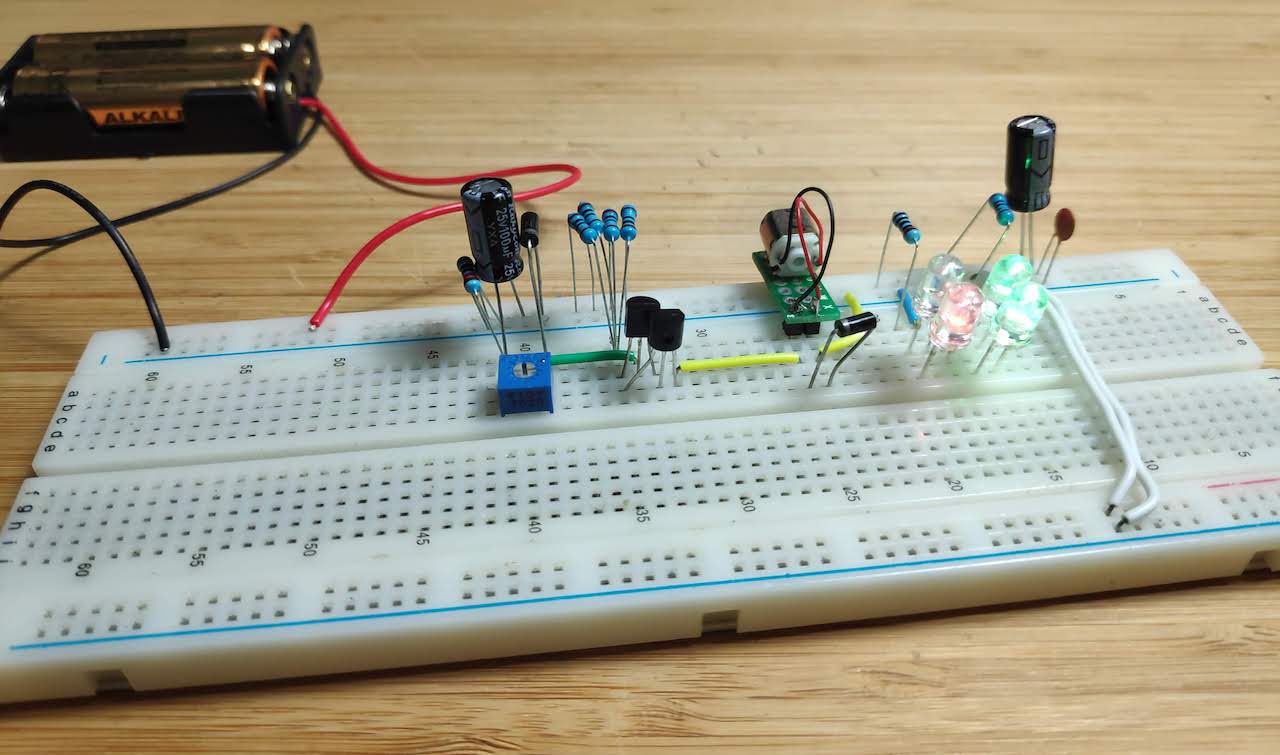

Breadboard
