#113 Morane Saulnier MS.230

Building the Dora Wings Morane Saulnier MS.230 for the 2024 Models for Heroes 48x48 group build.

Build

Notes

The Morane-Saulnier MS.230 aircraft was the main elementary trainer for the French Armée de l’Air throughout the 1930s. It saw service with military flight schools throughout France and was exported to the air forces of numerous other countries.

This kit from Dora Wings includes markings forits use by the Spanish Republican Air Force.

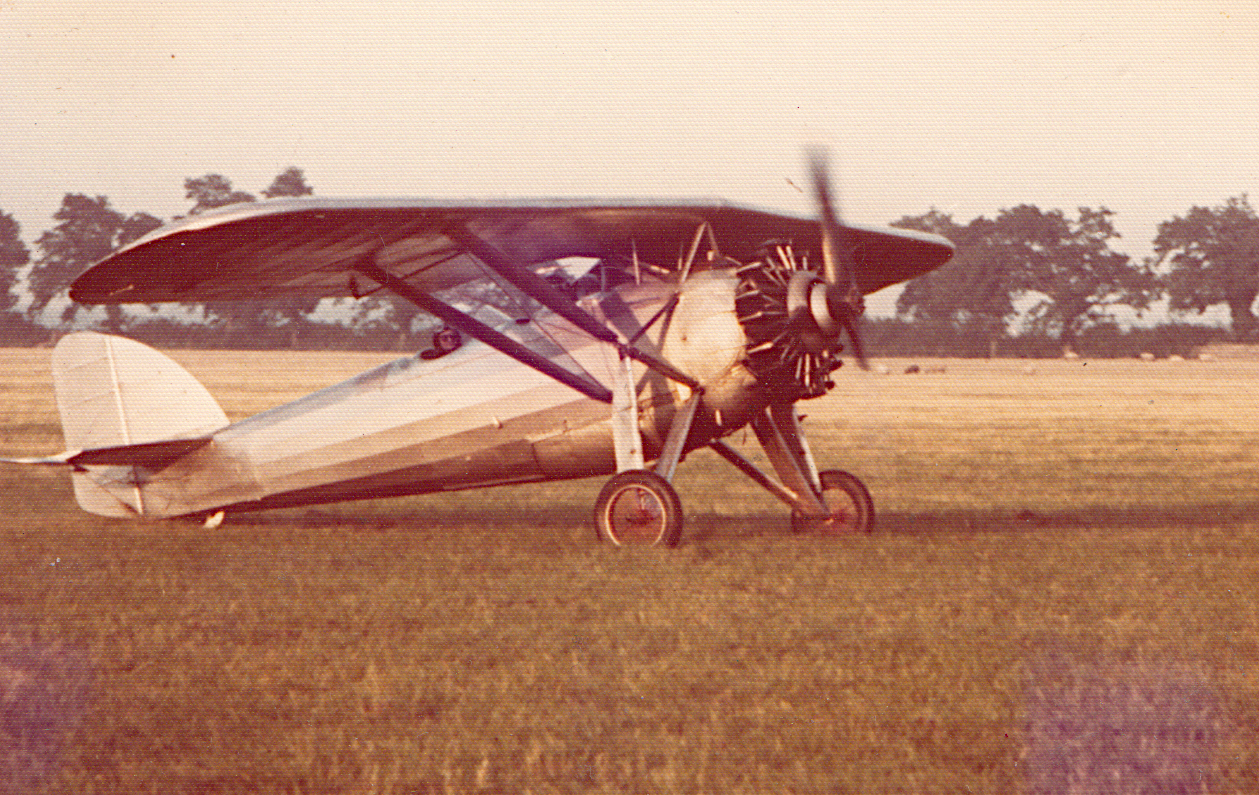

LYNN_GARRISON_MORANE_MS230_WESTON_IRELAND_1970 ])

Paint Scheme

Morane-Saulnier M.S.230 Spanish Republican Airforce Cuatro Vientos / Museo del Aire, 2009

Feature	Color	Recommended	Paint Used
A	Black	C33/H12	H12
B interiorm wheel hubs, prop nut	Silver	C8/H8	H8
C	Aluminium	MC218
D	Gun Metal	C78/H28	H18
E tires	Rubber Black	C137/H77
F	Tan	C44/H27	Vallejo MC mixed
I	Burnt Iron	C61/H76	H76
P	Khaki Francais	H80:H11 70:30	H320
W	Wood	C43/H37	Vallejo MC mixed
O	White	C62/H11	H11
R	Blue	C34/H25
propeller			H17
inlet manifold			SM205
tail insignia	yellow		H4
tail insignia	red		H13
tail insignia	purple		H13 + H25 + H11
fuselage	stainless		MC213

I had a pause to think whether I could spray my markings with Aqueous over Super Metallic, or if I should reverse the order. But according to MR.COLOR SUPER METALLIC 2

★ AQUEOUS HOBBY COLOR and ACRYSION can be applied over a coat of Mr. COLOR. ★ Mr. COLOR cannot be applied over a coat of AQUEOUS HOBBY COLOR and ACRYSION.

Build Log

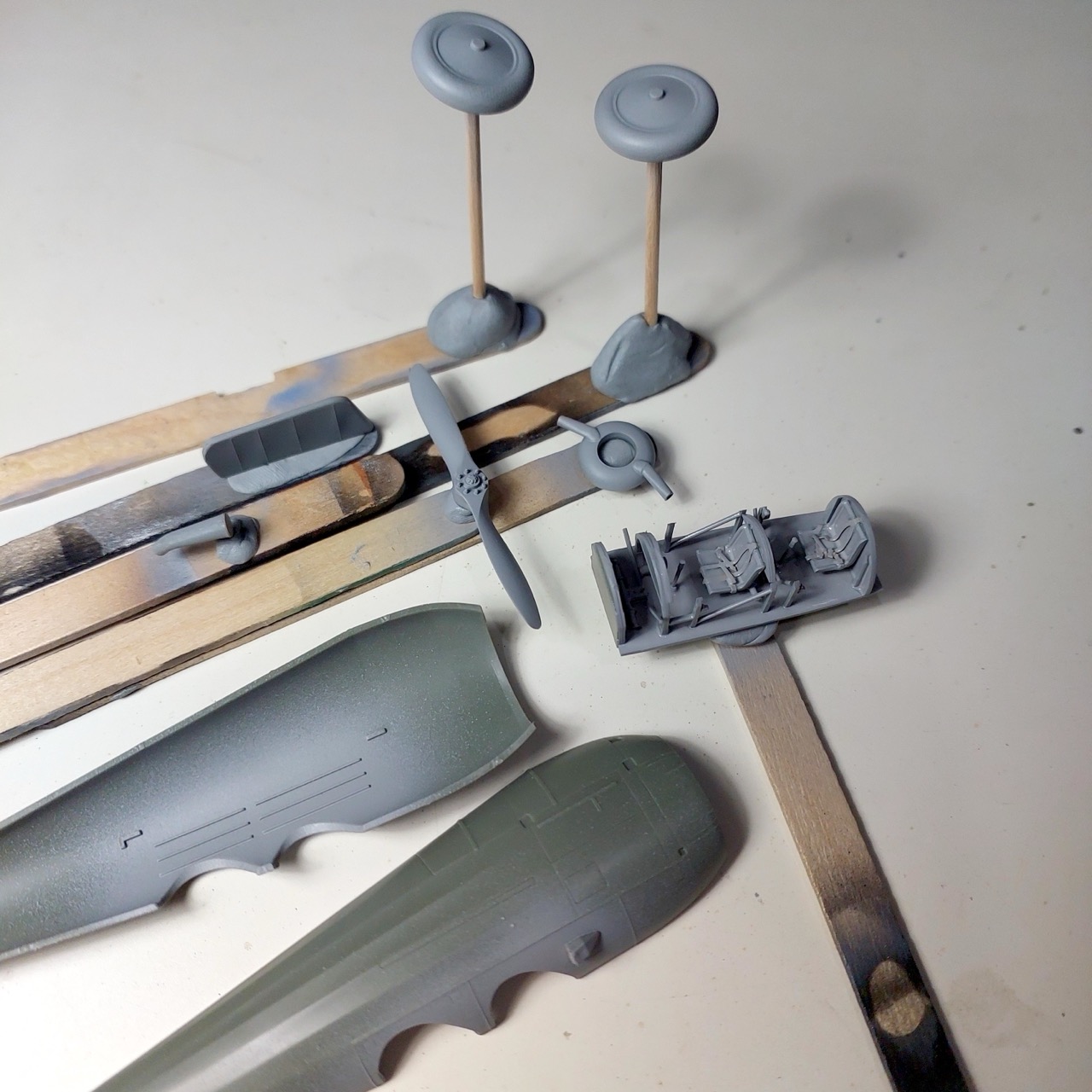

the starting point..

build01a build01b

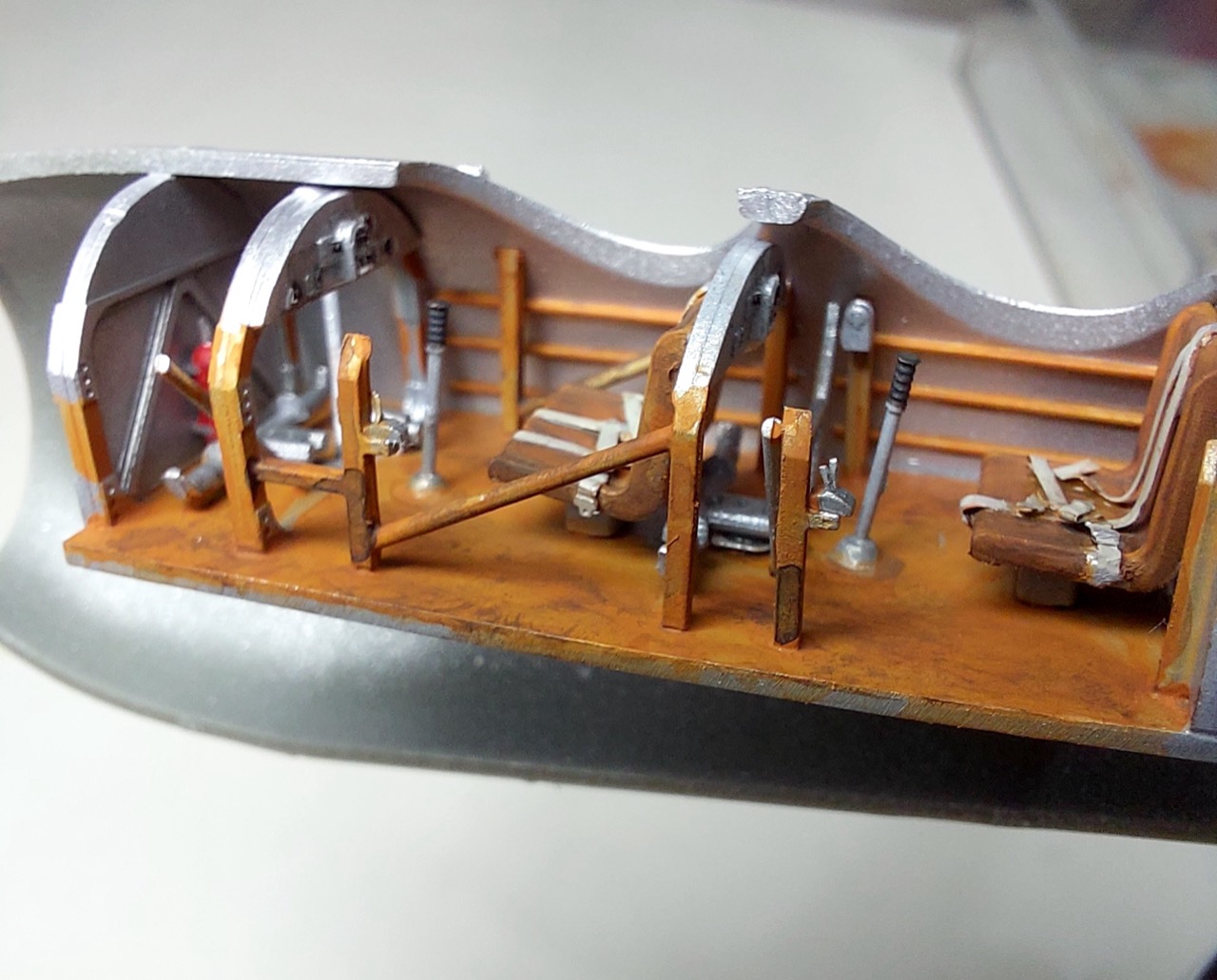

I tried detailing the cockpit purely with acrylics of a silver base with the cockpit already constructed. Was pretty efficient, but some of the paint finishes were difficulat to achieve given the space constraints

build02a build02b build02c build02d

the motor took most of a day to put together and paint

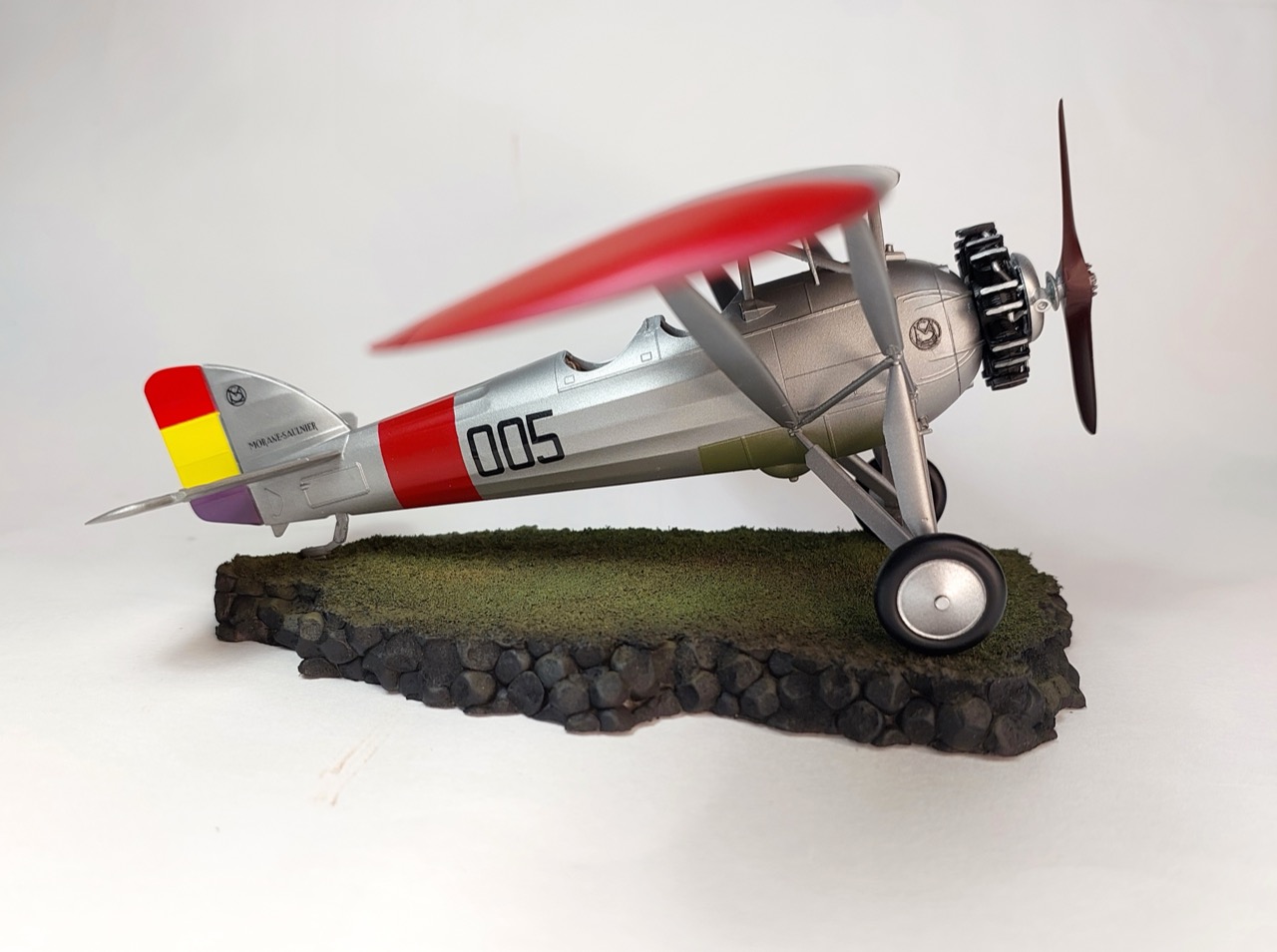

build02e build03a build03b build03c build03d build03e build04a build04b build05a build05b build05c build05d build05e build06a build06b build06c build06d build06e
