#001 Metal Earth Lead Guitar
Pimping up the Metal Earth Electric Lead Guitar kit with some sound activated LEDs with electronics squirreled away in an “amp”.
Here’s a quick demo..
Notes
I picked up a Metal Earth Electric Lead Guitar ($9.95) kit while browsing a book store years ago and it has sat on a shelf ever since.
About the Kit

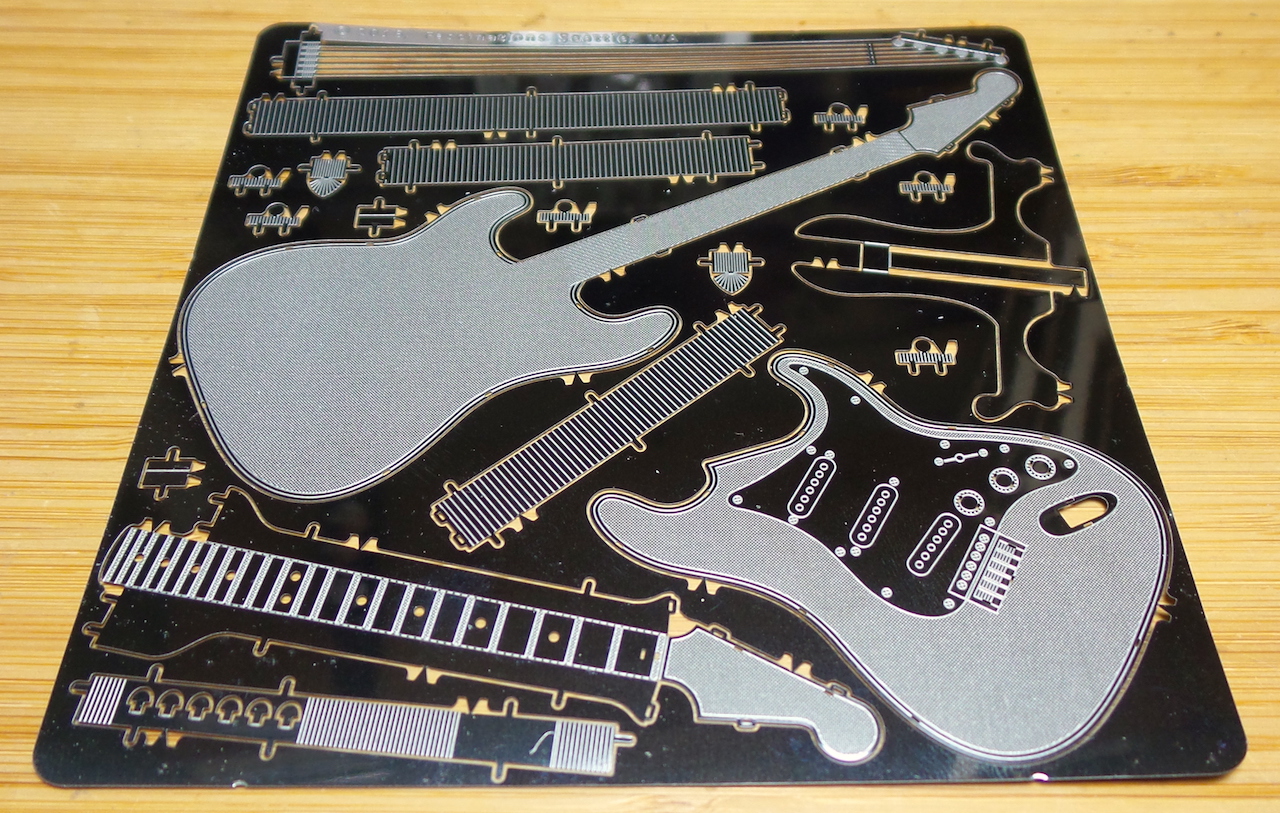

The kit is one in a series of laser-cut metal kits by Fascinations, Inc.
- Item#: MMS074
- Number of sheets: 1 Sheet
- Difficulty: Easy
- Assembled Size: 4.45” x 1.52” x 1.25” (11.4 x 3.9 x 3.2 cm)
The Electronics

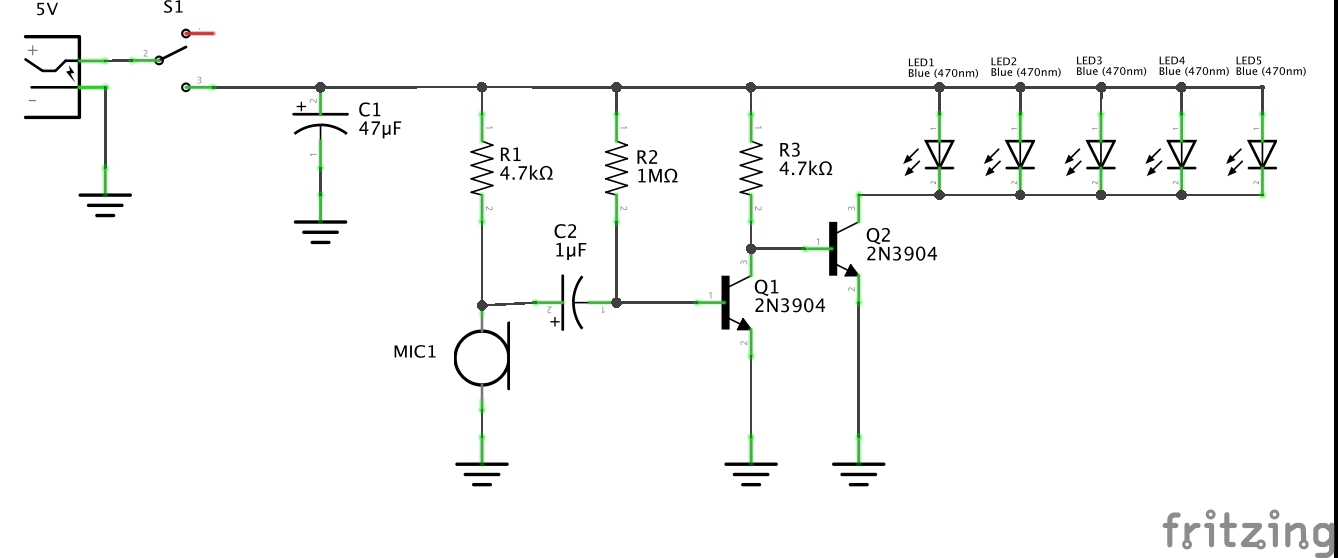

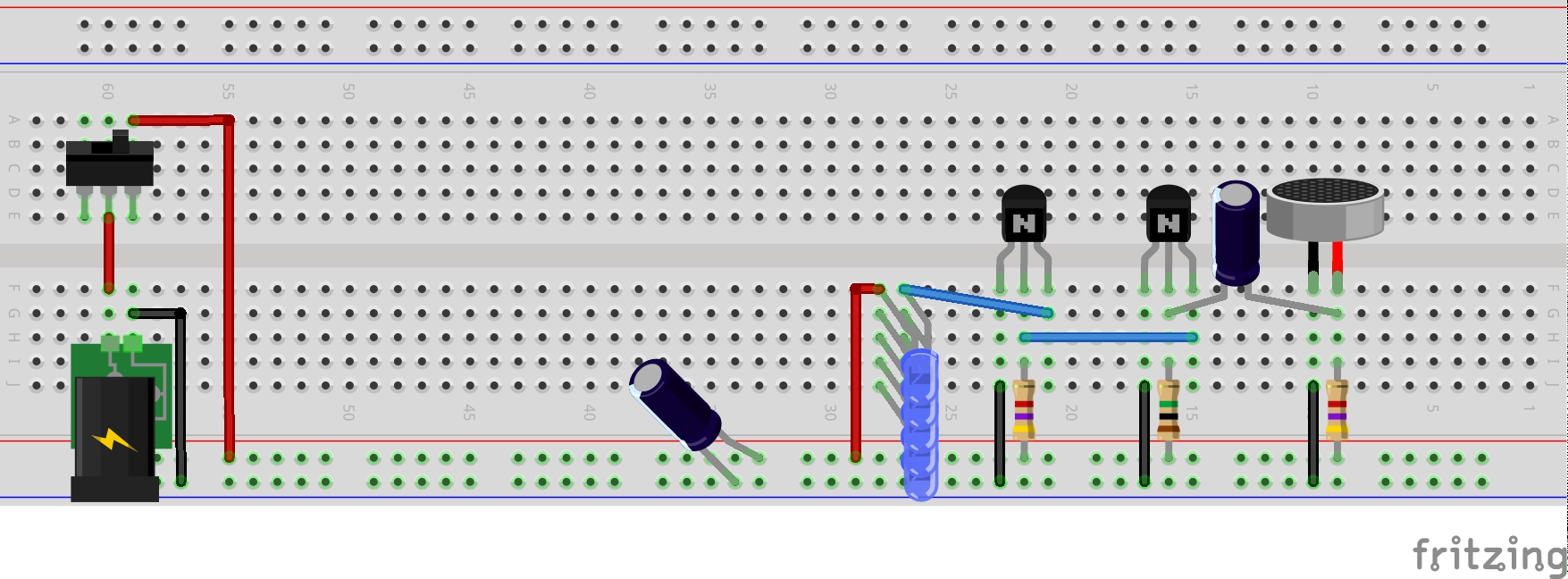

I’m using a simple sound-activated LED circuit, powered by an 18650 Lithium Battery charger/boost module that provides a 5V output.
Construction

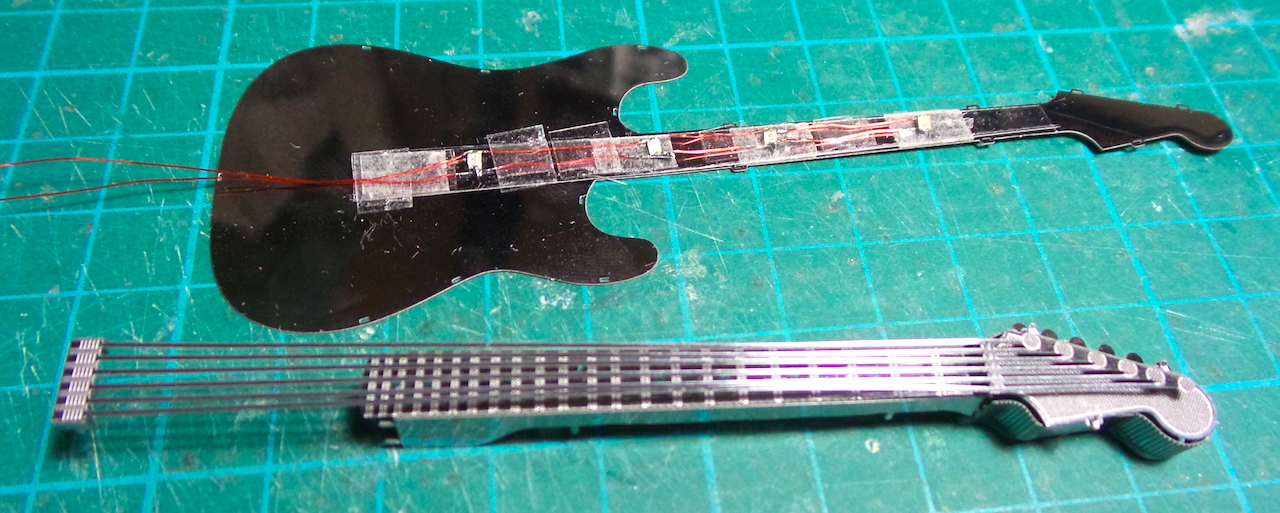

Attaching the LEDs in parallel inside the guitar body..

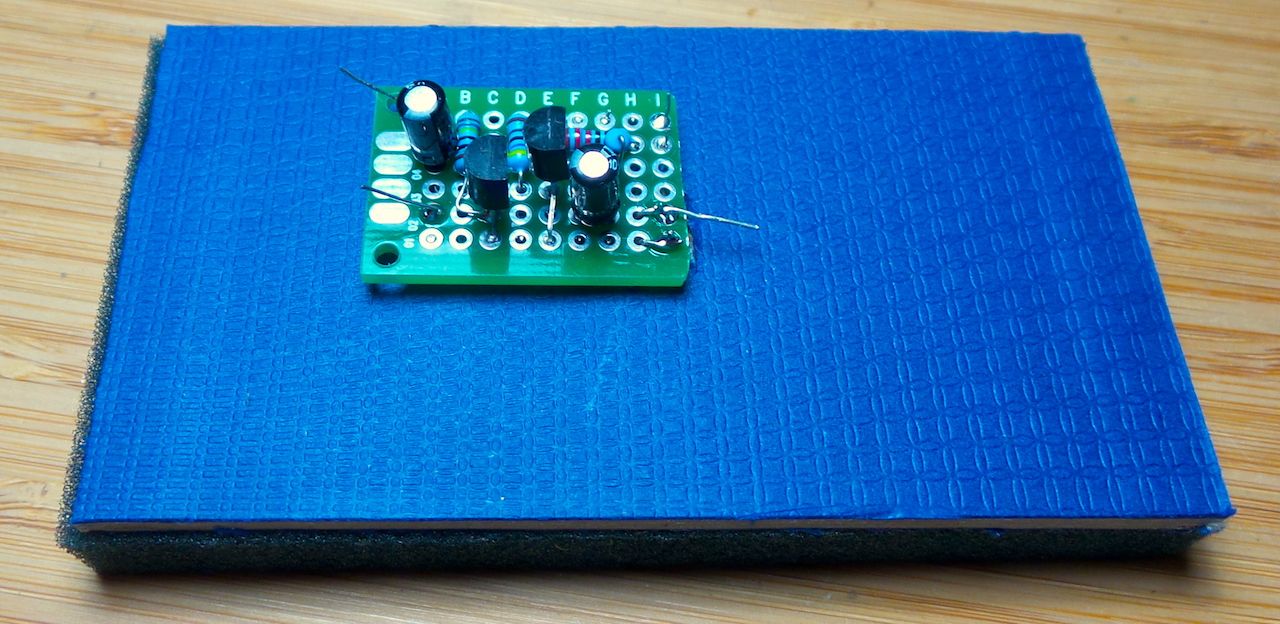

the sound module is built on a small piece of protoboard, with the electret mic poking through the “speaker”.

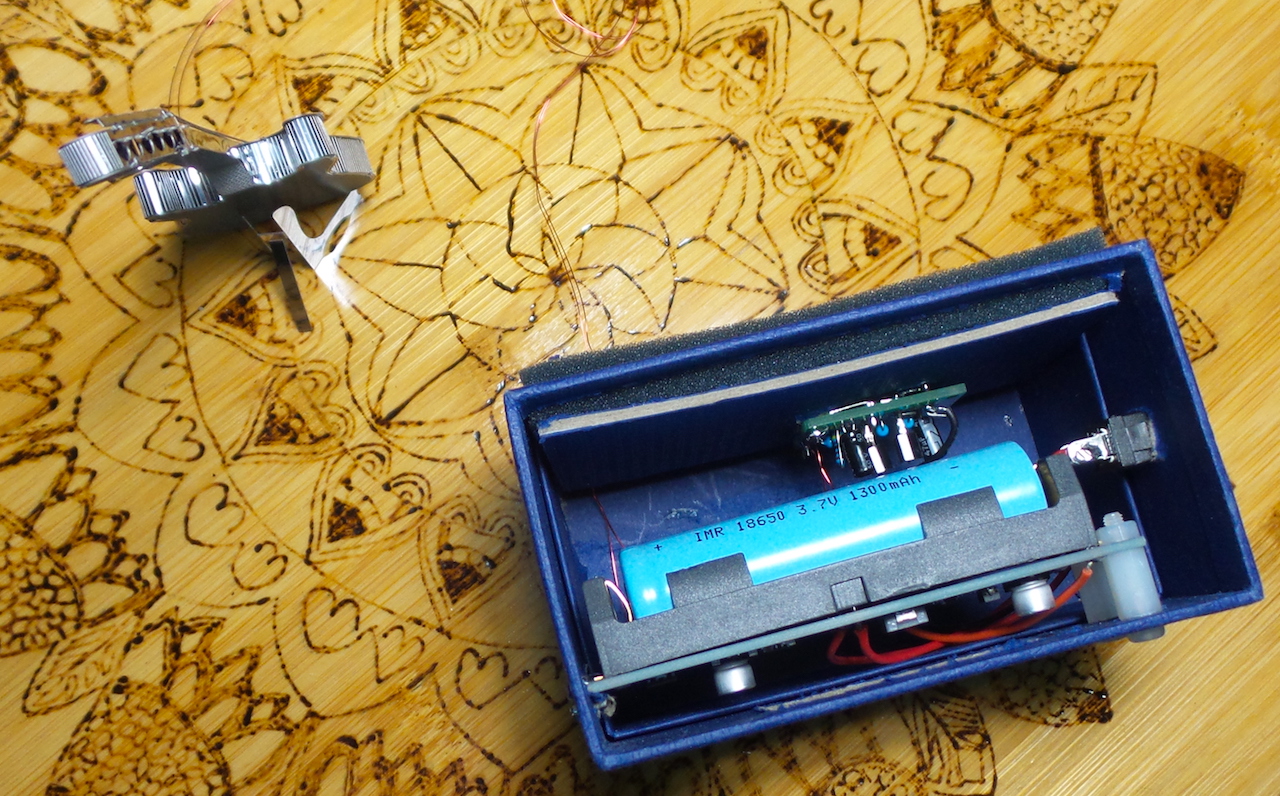

With everything installed, including the 18650 charge/boost module and a power switch on the side. The micro USB connector for charging the battery pokes out the side of the enclosure.

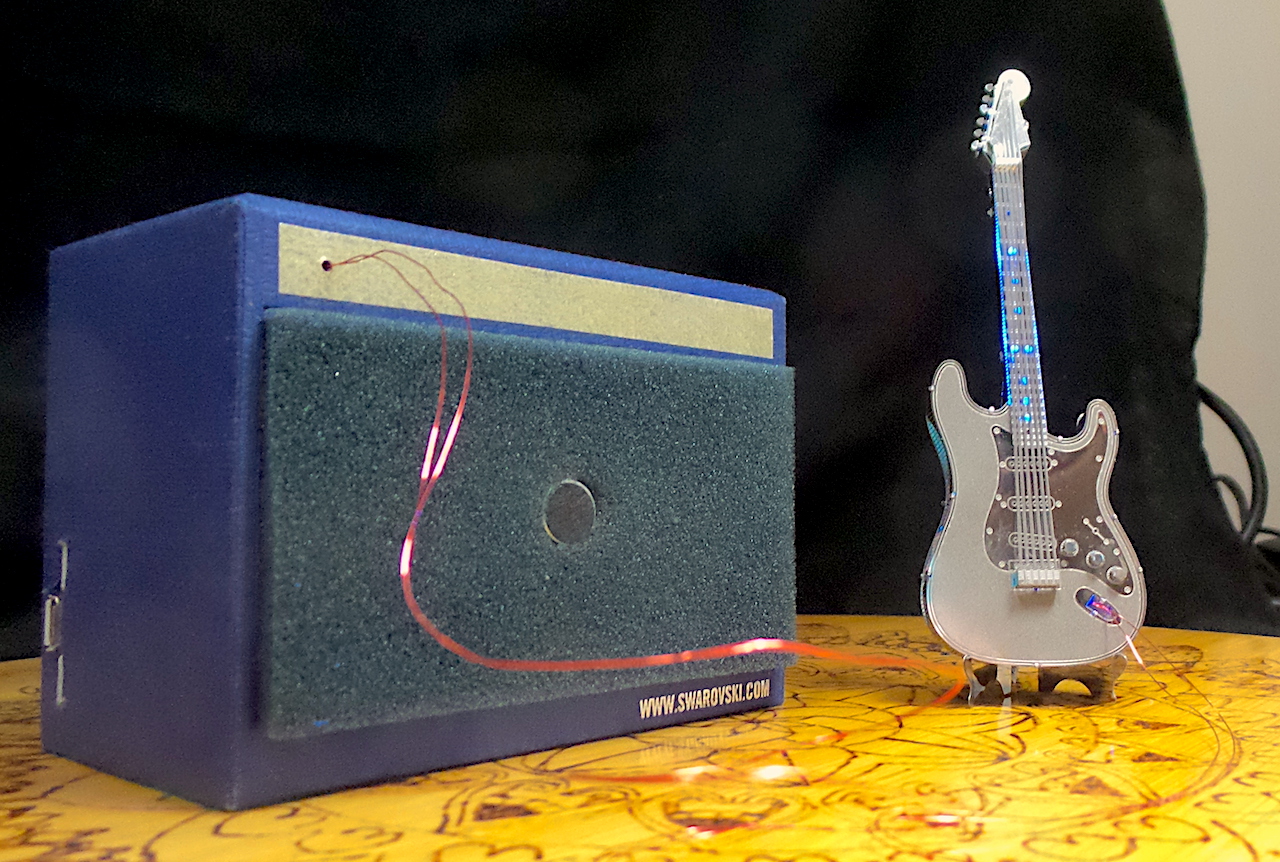

Final build..

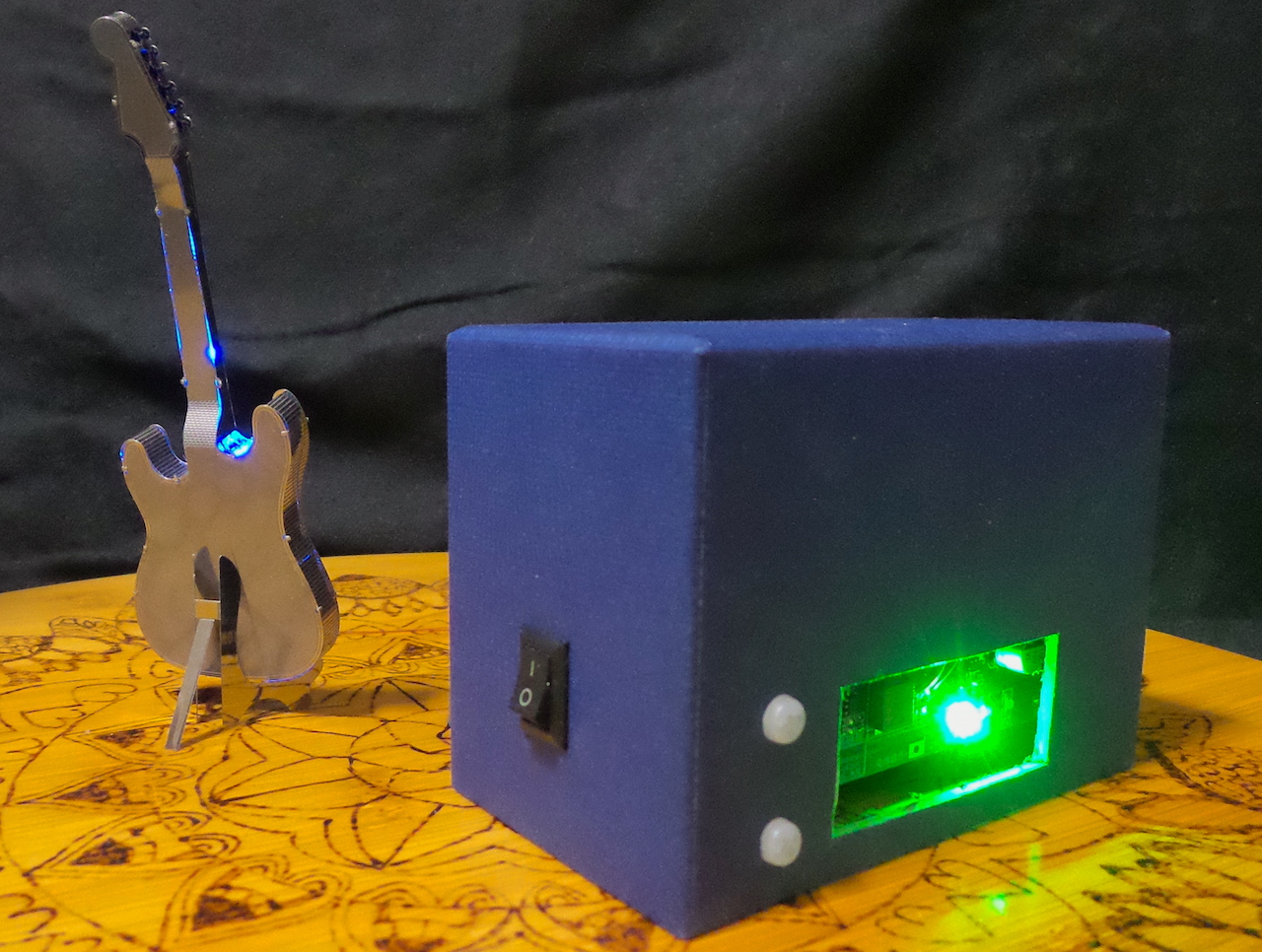

Rear view..
