#022 Kawanishi K5Y1 Tensegrity Stand
Experimenting with tensegrity model mounting, using as a subject the ARII 1:72 Kawanishi K5Y1 赤とんぼ (Willow).
Notes

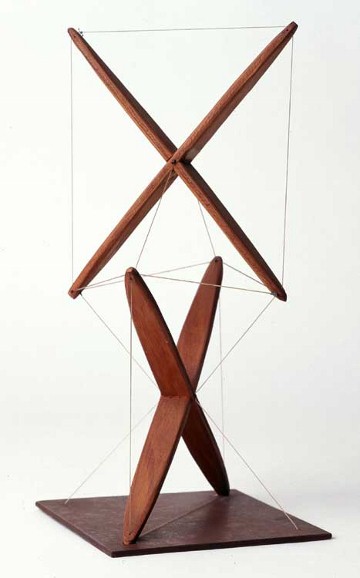

Was it just me that noticed Tensegrity sculptures become a thing in 2020 all over tiktok and the socials? The concept is nothing new - a structural principle involving isolated components under compression inside a network of continuous tension. In its most drammatic form, it can make structures appear to float:
This model build started as an idle thought experiment. Could tensgrity principles be used to mount a model plane apparently “in flight”?
Turns out the answer is yes! It is however highly dependent on the aircraft geometry. Besides being an interesting subject, the Kawanishi K5Y1 works well given the fixed landing gear and relatively forward centre of gravity.
The Subject
The K5Y1 is the Imperial Japanese Navy two-seat intermediate trainer version of the Kawanishi/Yokosuka K5Y. It was nicknamed 赤とんぼ / Akatombo / Red Dragonfly and had the allied reporting name of Willow.
I first encountered the plane when I learned from the arawasi blog there is a full size replica in the Nishiki Secret Base Museum.
The Kit

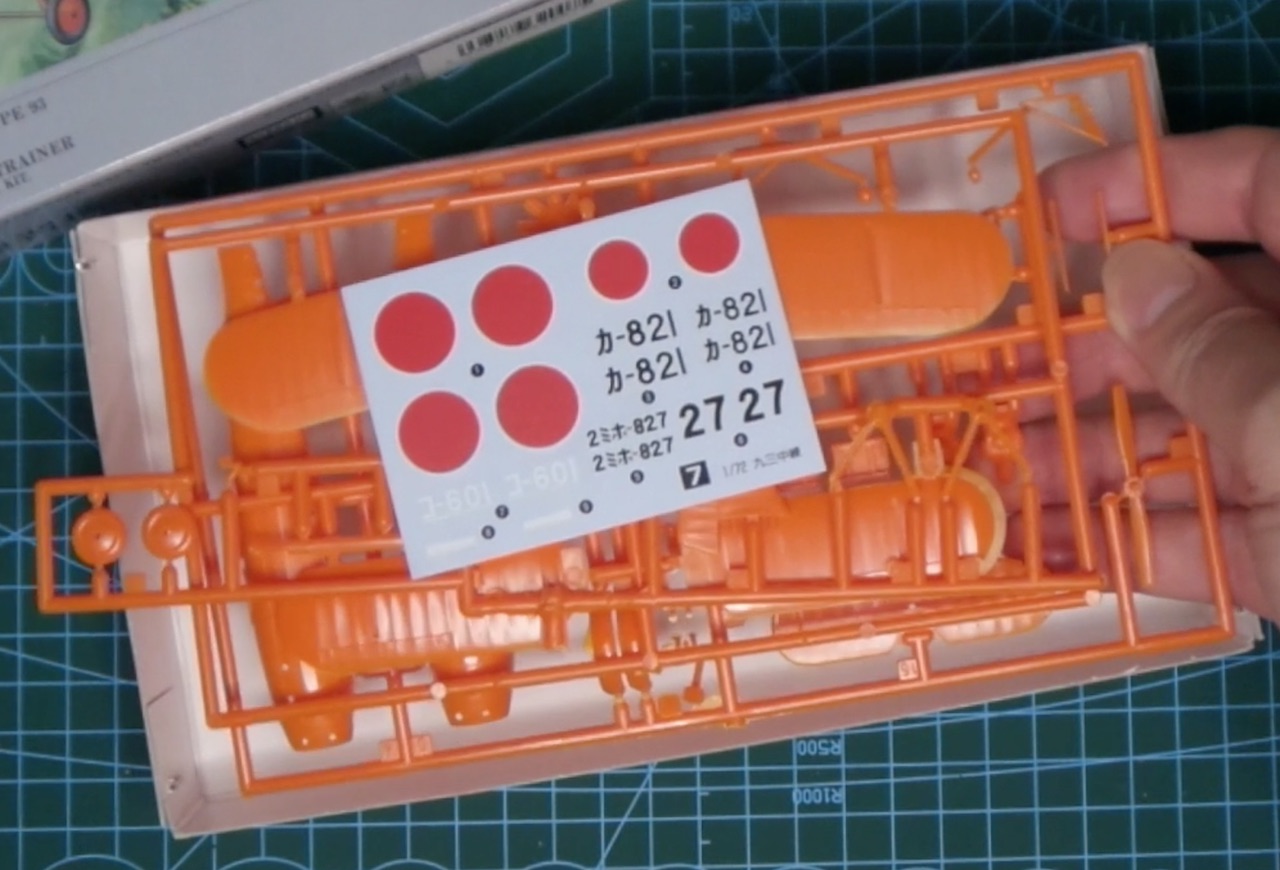

I found the ARII 1:72 Willow kit in the racks of a local hobby store Hobby Point
It is a pretty old kit (1995) molded in brittle orange plastic with quite a bit of flash. Details are not great and fit is so-so. But it is an interesting subject!

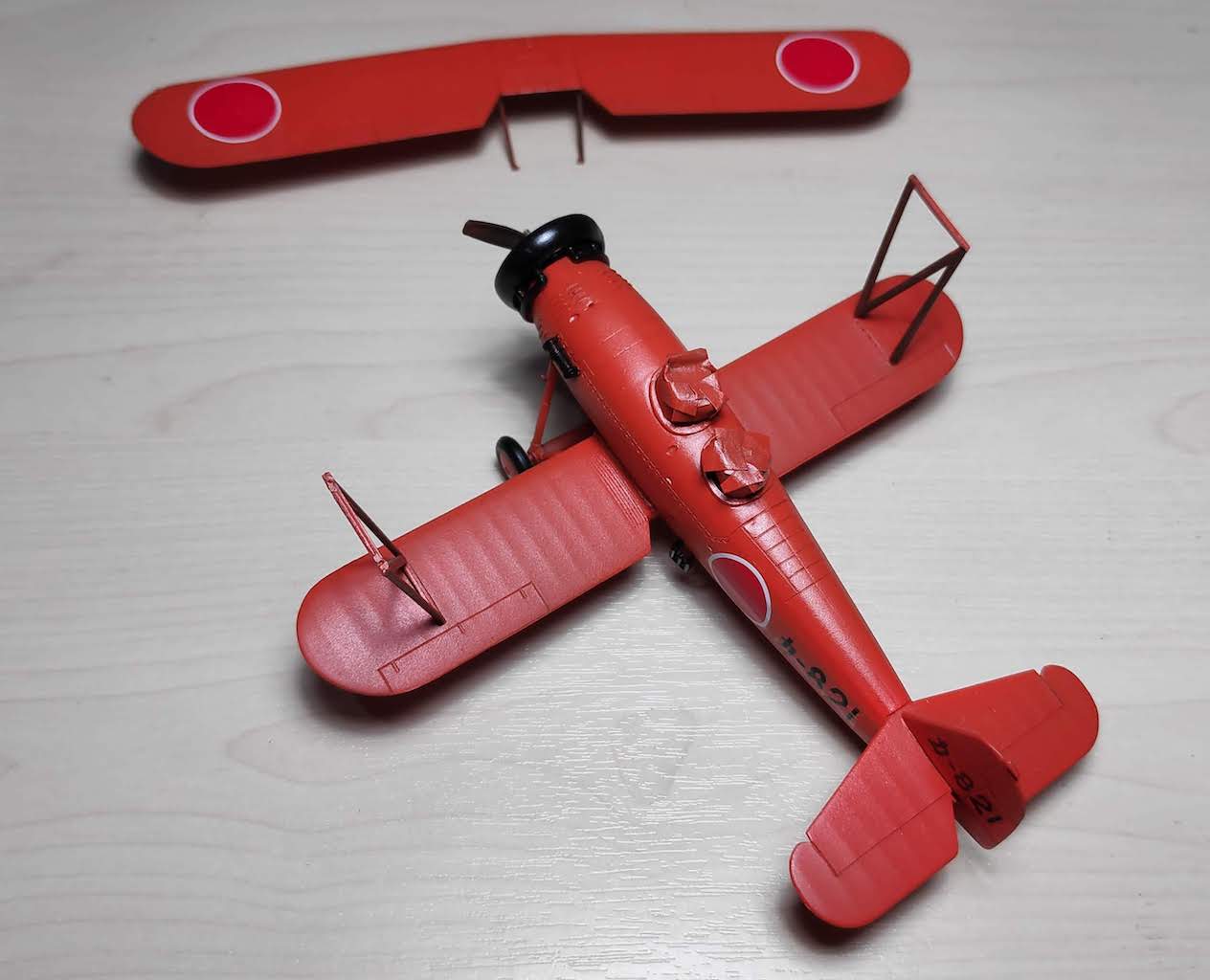

Paint
Training Scheme
| Color | Recommended | Used |
|---|---|---|
| Red | H3 | Vallejo 70.908 Carmine Red |
| Flat Black | H12 | Vallejo 70.950 Black |
| Orange | H14 | Vallejo 70.851 Bright Orange |
| Clear Red | H90 | Vallejo 70.909 Vermillion |
| Clear Blue | H93 | Vallejo 70.839 ultramarine |
| Steel | H18 | Vallejo 70.863 Gunmetal Grey |
| Silver | H8 | Vallejo 70.997 Silver |
| Burnt Iron | H76 | Vallejo 70.863 Gunmetal Grey |
| Gray | H22 | Vallejo 70.992 Neutral Grey |
| Tire Black | H77 | Vallejo 70.862 Black Grey |
Alternative Scheme:
| Color | Recommended | Equivalent |
|---|---|---|
| IJN Green | H59 | 70.897 Bronze Green |
Pilot
| Color | Recommended | Used |
|---|---|---|
| Khaki Green | H80 | Vallejo 70.924 Russian Unf. WWII |
| Flesh | H44 | Vallejo 70.845 Sunny Skin Tone |
| Mahogany | H84 | Vallejo 70.846 Mahogany Brown |
| Red Brown | H47 | Vallejo 70.984 Flat Brown |

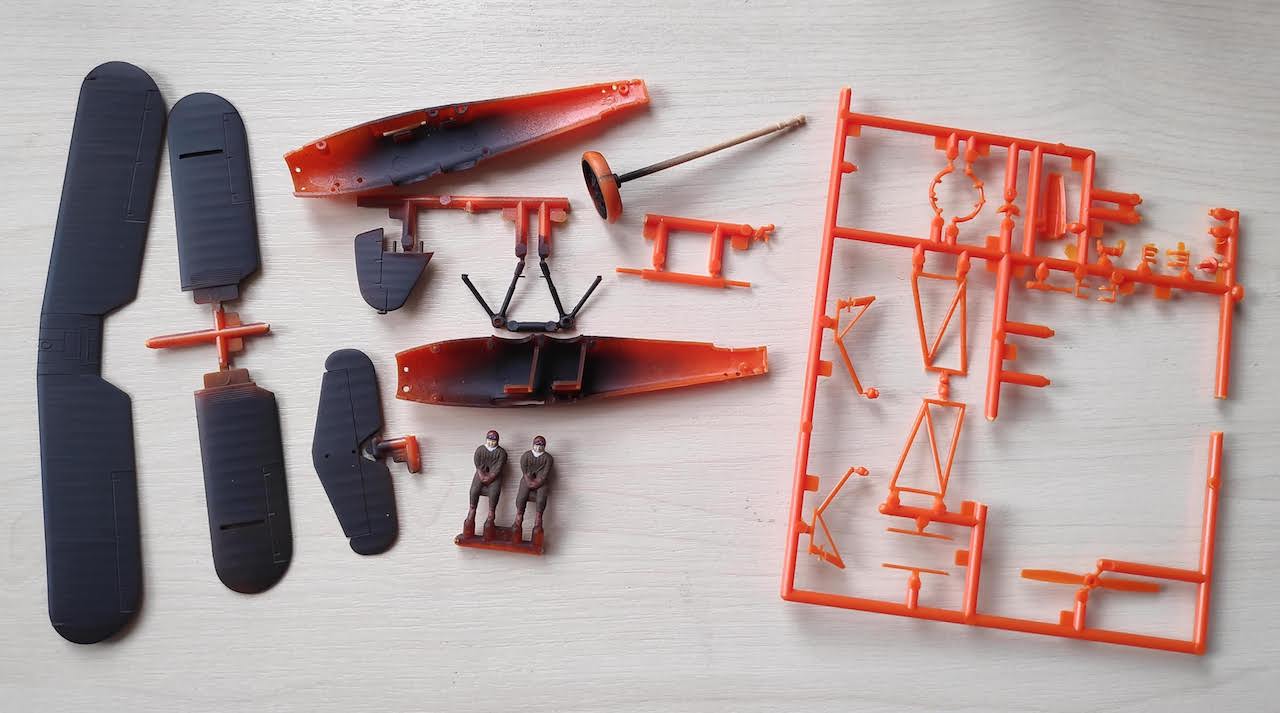

Construction

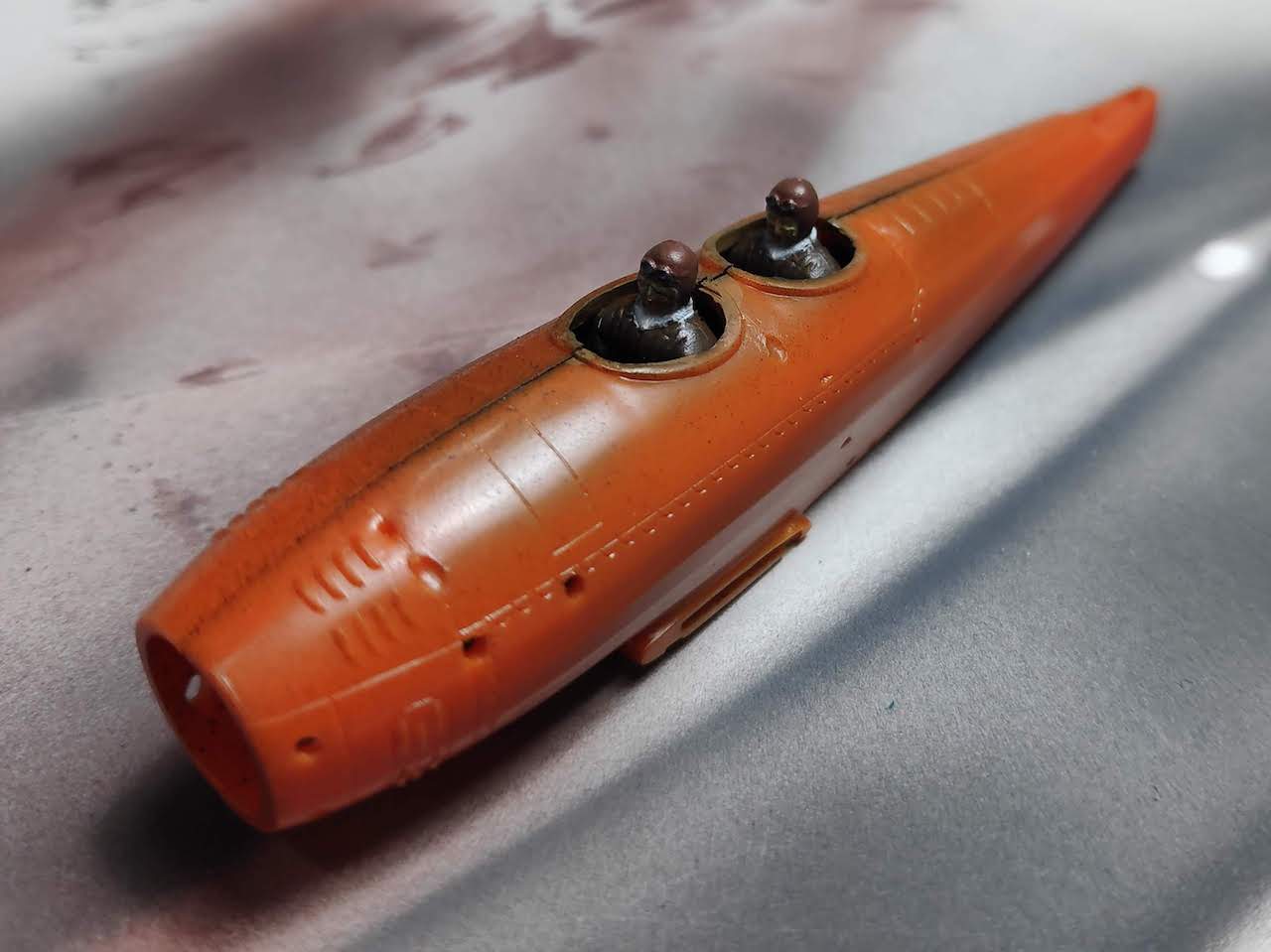

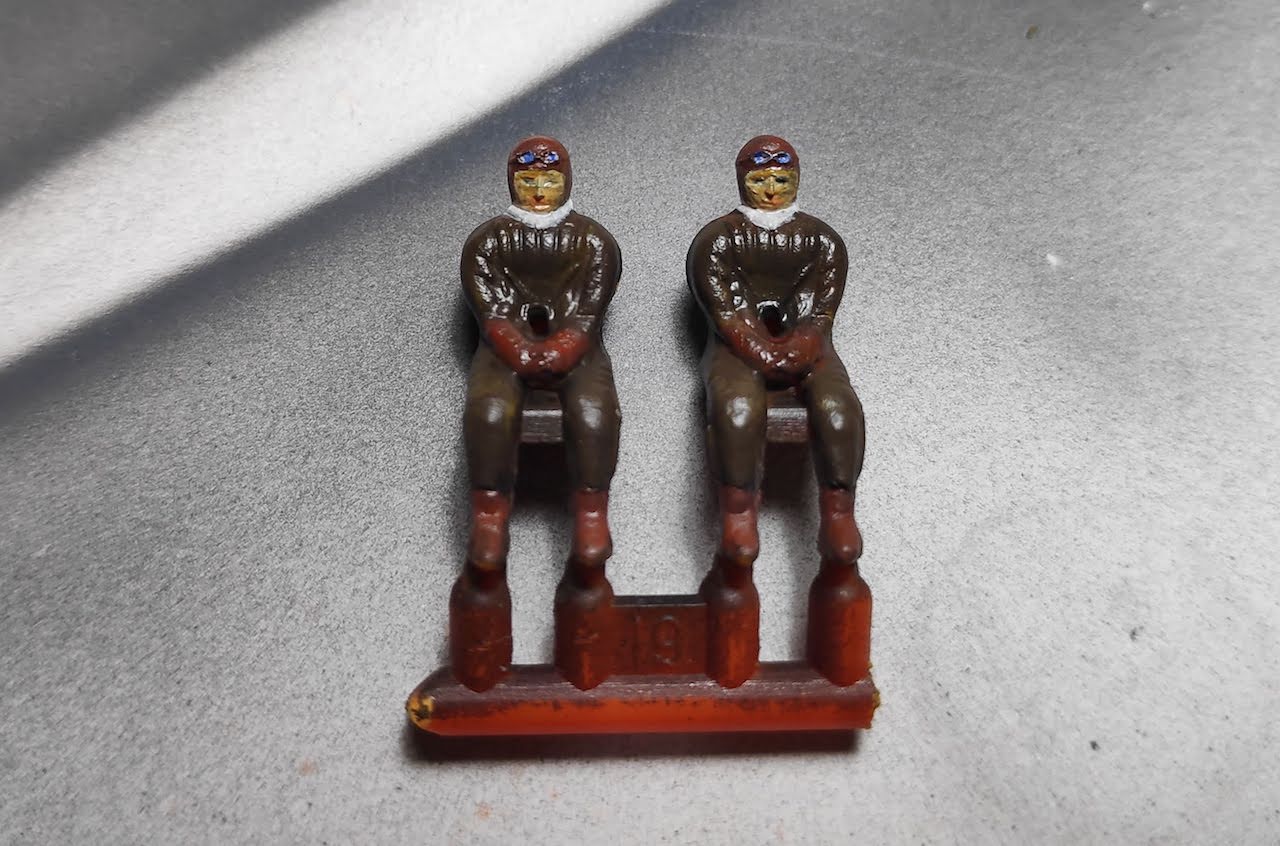

Pilot features were not molded very clearly. I did my best to give them real faces - seems to work at a distance but not up to close inspection.

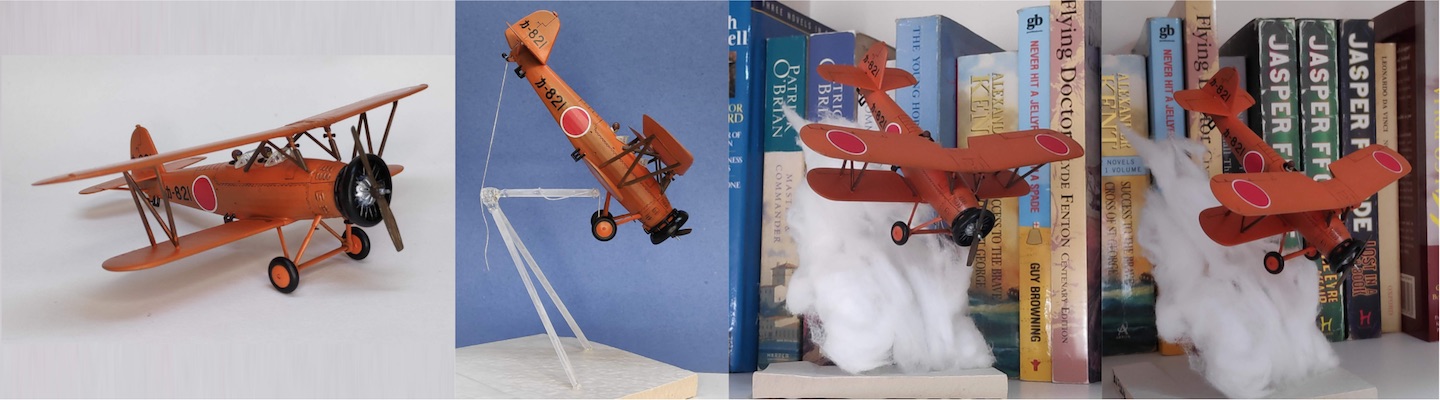

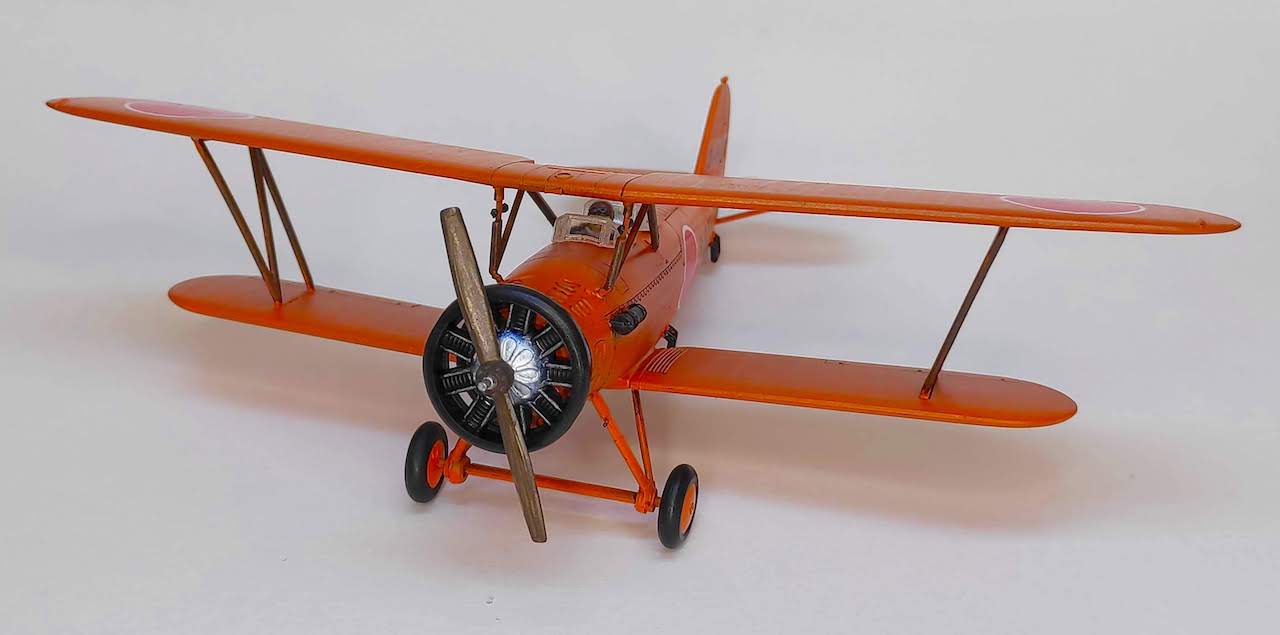

A quick 360˚ around the finished model:
The Tensegrity Stand

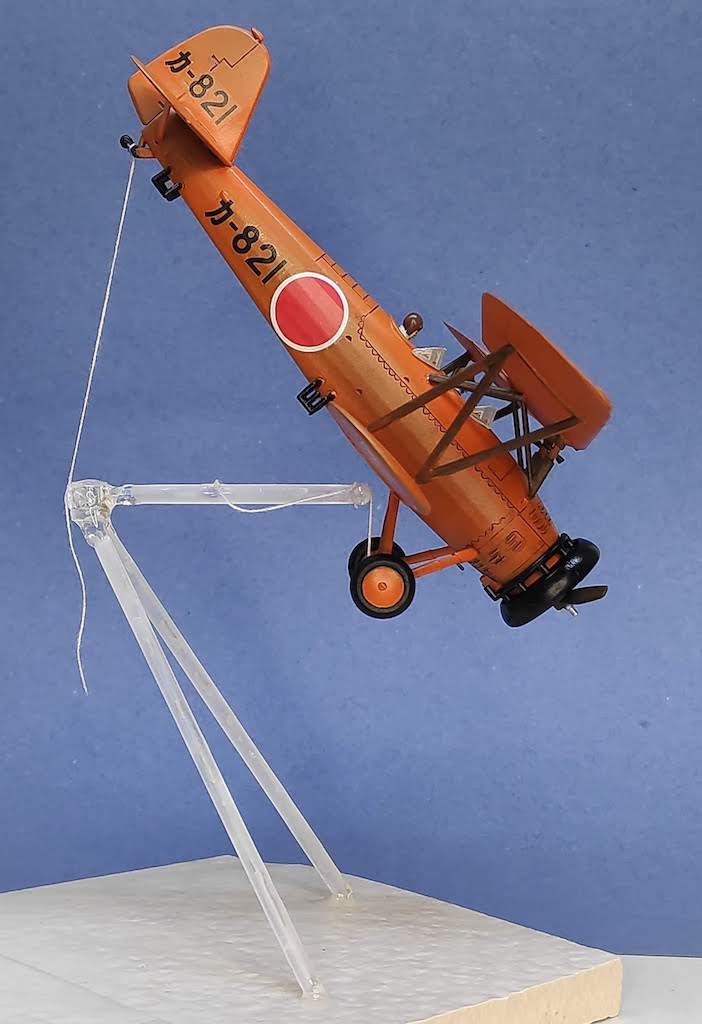

This in-progress shot shows the basic tensegrity principle pretty clearly:
- landing gear hang down from a hard-point
- with the plane angled down, the centre of gravity is pushed over the landing gear (I was prepared to, but turned out I didn’t need to add any extra weight inside the body for this)
- a second hard-point is used to tie down the tail to prevent it tipping forward
The result is quite pleasing - the place is slightly “hovering” above the stand. And it has a nice wobble when nudged. Next time I should get some transparent fishing line - the white cotton was the best option I had on hand.

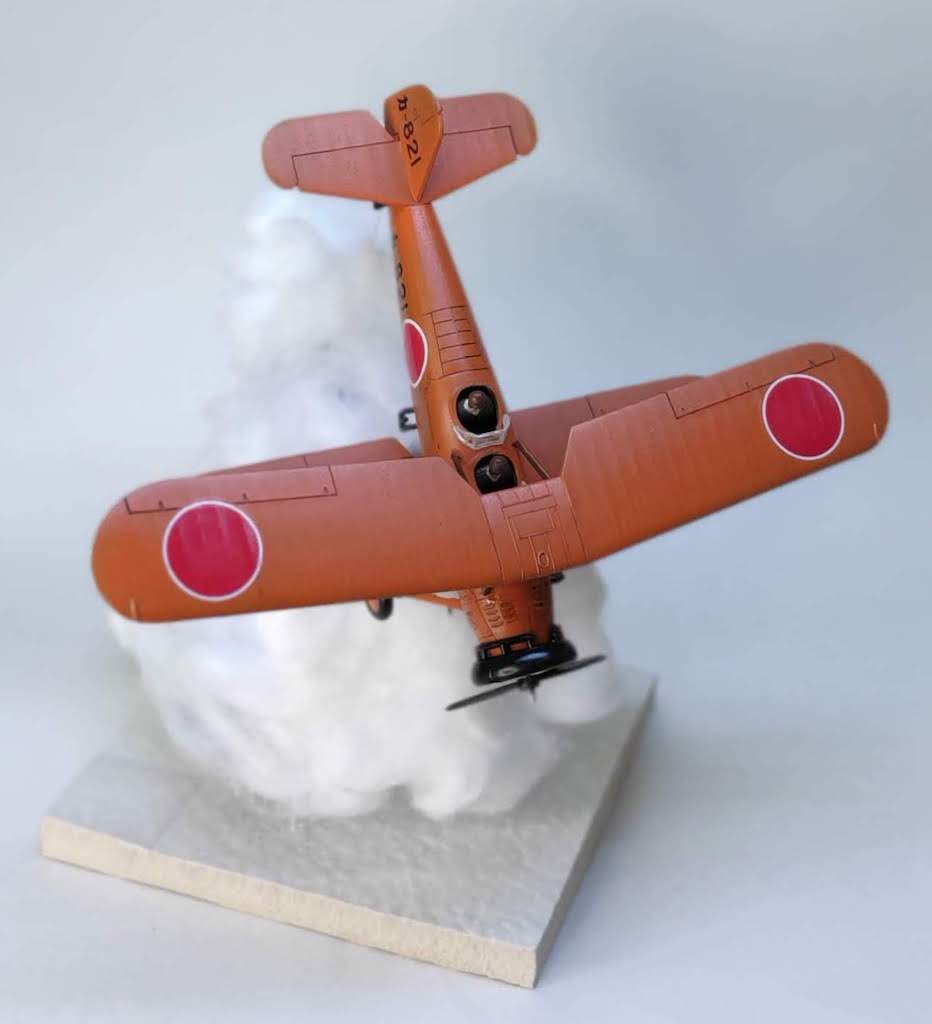

With some mock clouds to hide the stand:

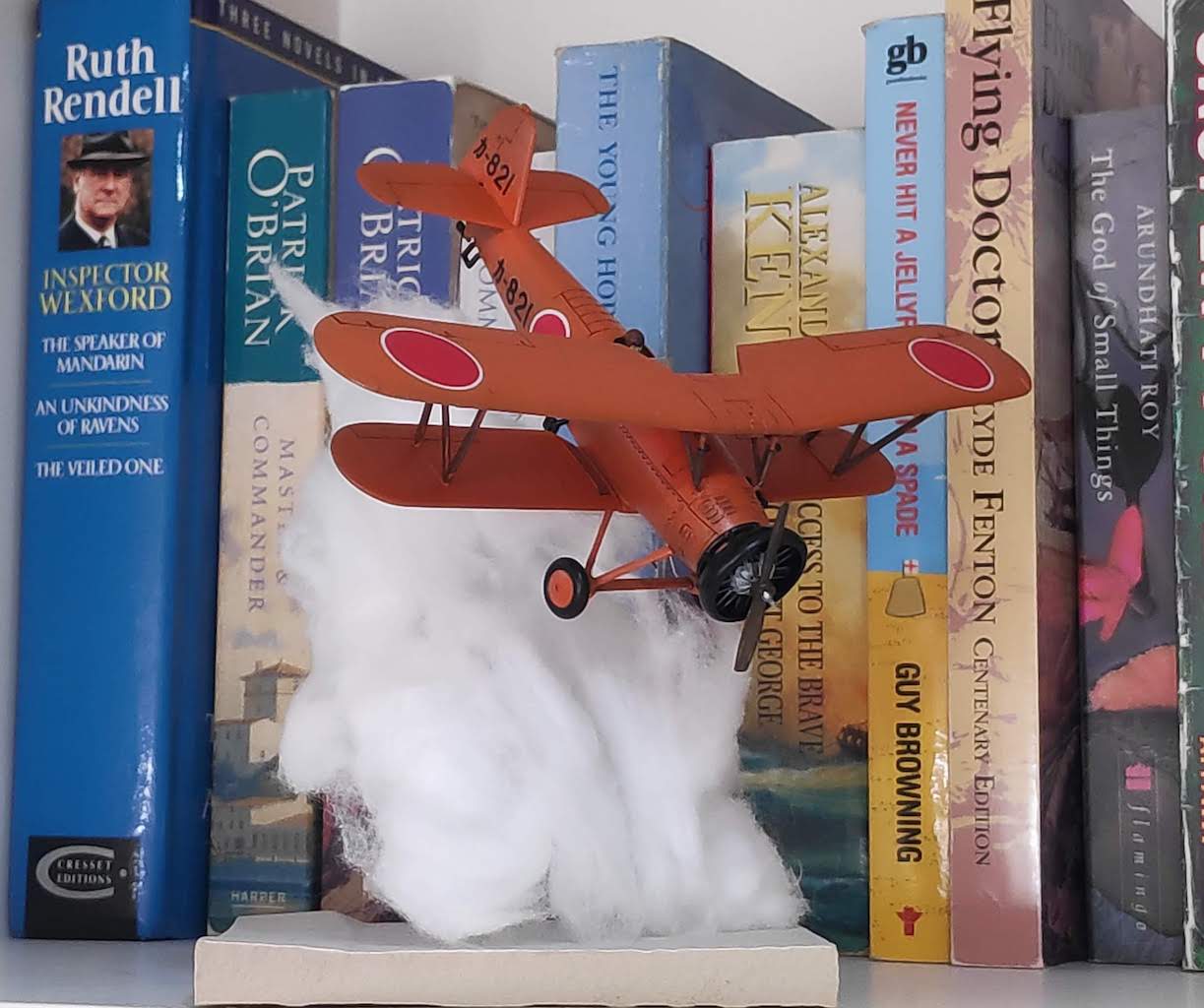

At home on a bookshelf:
